Removal & Installation
WARNING: This page is about a different car, the 2002 Mercury Grand Marquis, 2002 Lincoln Town Car, and 2002 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

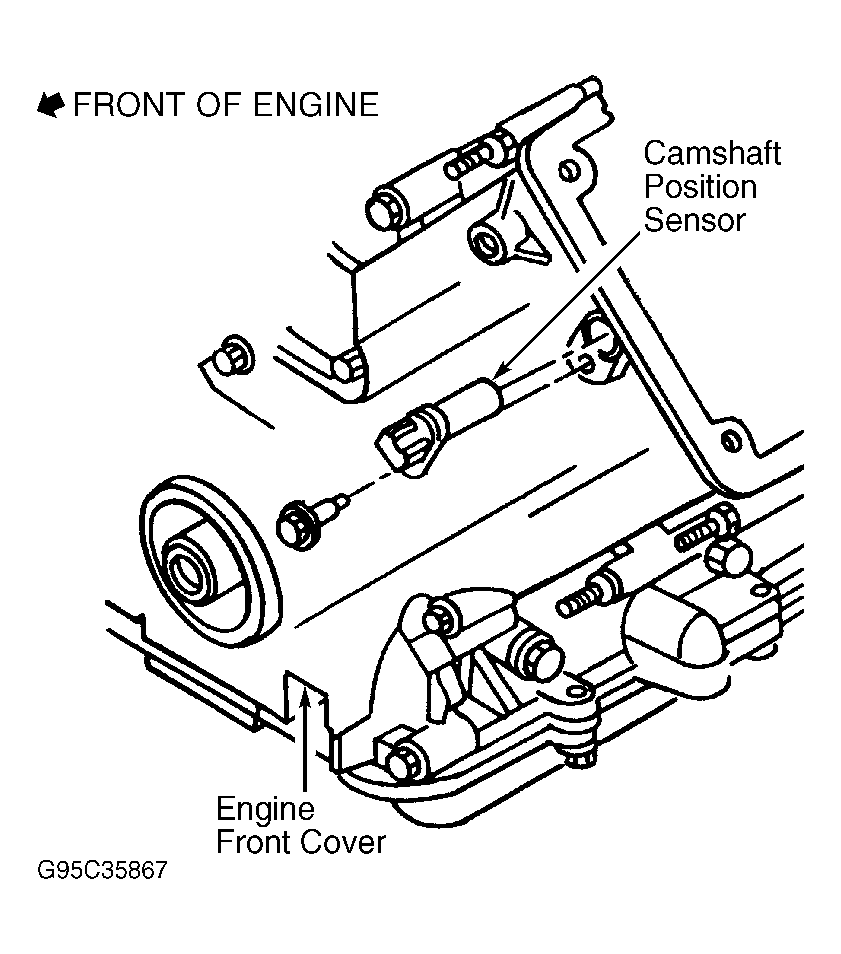

CMP sensor is located on left side of timing cover. Disconnect negative battery cable. Remove bolts retaining power steering pump reservoir and position aside (if necessary). Disconnect CMP sensor harness connector. Remove CMP sensor retaining bolt and CMP sensor. See Fig 1. Ensure "O" ring is properly located and in good condition. To install, reverse removal procedure. Tighten CMP sensor bolts to specification. See TORQUE SPECIFICATIONS .
