Transmission Fluid Cooler Tubes - TorqShift: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the inlet and outlet lines from auxiliary fluid cooler and radiator in-tank reservoir.
1. Install the cooler line clips.
2. Connect the fluid lines to the radiator in-tank reservoir.
3. Connect the hose and install the constant tension clamp from the auxiliary cooler outlet.
4. Connect the hose and install the constant tension clamp from the fluid filter return inlet line.

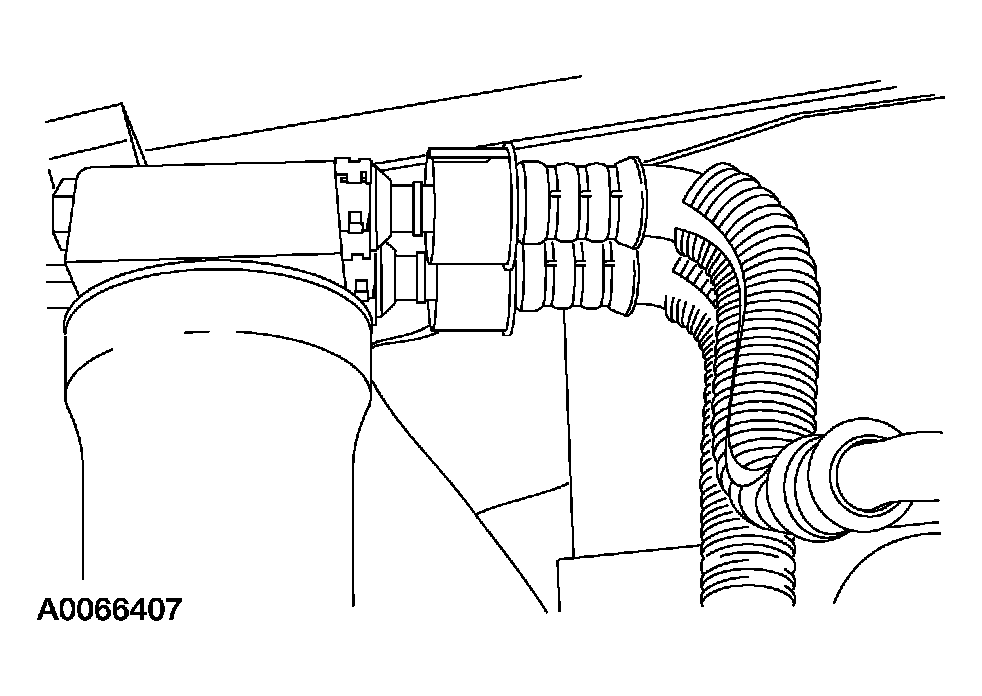

  Fig 1: Installing Constant Tension Clamp
  Courtesy of FORD MOTOR CO.
Install the remote mount transmission fluid filter bracket.

Fig 2: Installing Remote Mount Transmission Fluid Filter Bracket
Courtesy of FORD MOTOR CO.
Install the fluid cooler tubes, the fluid cooler tube bracket and the fluid cooler tube bracket nut.

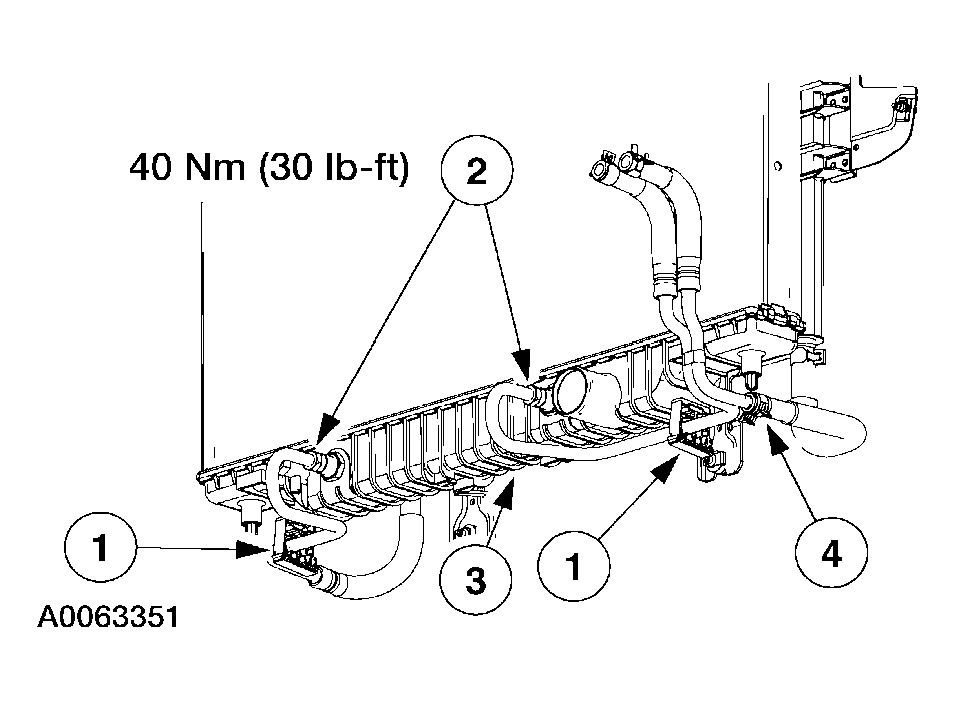

Fig 3: Installing Fluid Cooler Tubes
Courtesy of FORD MOTOR CO.
Connect the transmission cooler inlet and outlet lines to the remote mount fluid filter housing.

Fig 4: Connecting Transmission Cooler Inlet And Outlet Lines
Courtesy of FORD MOTOR CO.
Install the fluid cooler tubes in the front and rear cooler line case fittings.
- Tighten to 40 Nm (30 lb-ft).
Position the air deflector and install the bolts.

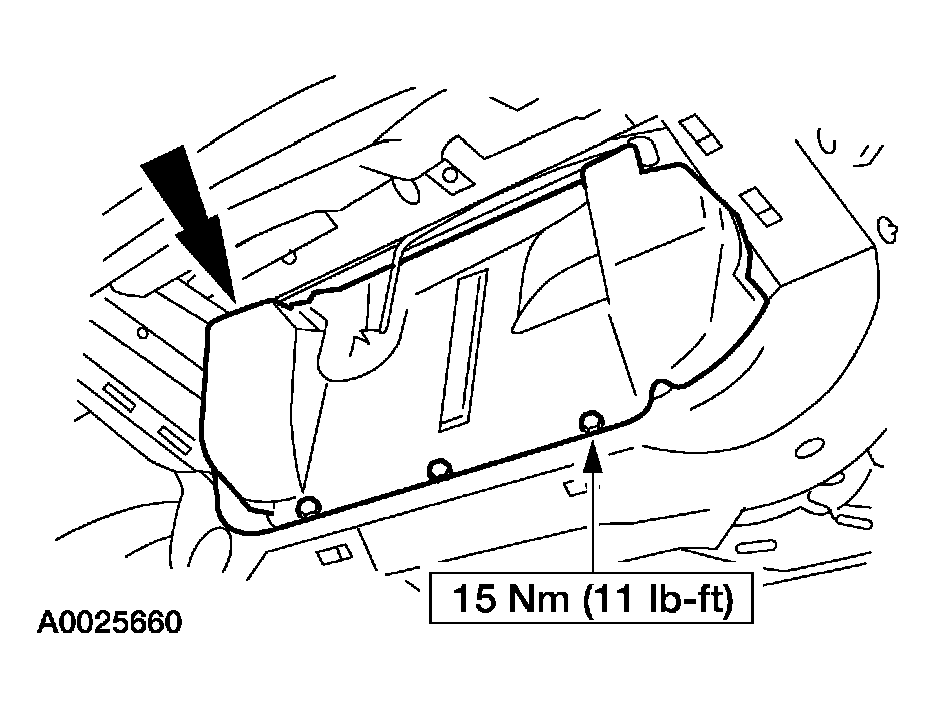

Fig 5: Positioning Air Deflector
Courtesy of FORD MOTOR CO.
Lower the vehicle.

CAUTION: Use only MERCON® SP Transmission Fluid to service TorqShift transmissions. Mixing MERCON® or MERCON® V in a TorqShift transmission may cause transmission damage. Use of any fluid other than the recommended fluid can cause transmission damage.

Fill the transmission with the specified type and quantity of transmission fluid. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75W .
Check for leaks.
