Transmission Support CROSSMEMBER: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the crossmember to the transmission mount and loosely install the nut.
    Fig 1: Locating Crossmember To Transmission Mount
    G03889185Courtesy of FORD MOTOR CO.
  2. Install the LH crossmember bracket.
    Fig 2: Locating LH Crossmember Bracket
    G03889062Courtesy of FORD MOTOR CO.
  3. Install the LH crossmember bracket nuts

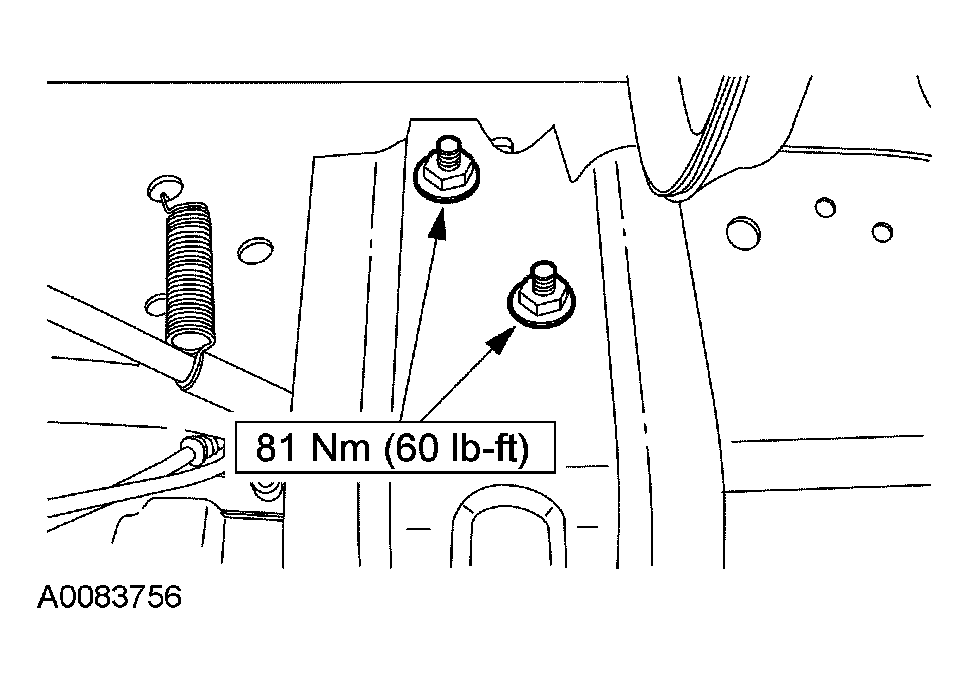

    Fig 3: Installing LH Crossmember Bracket Nuts
    G03889070Courtesy of FORD MOTOR CO.
  4. Install the RH crossmember bracket.
    Fig 4: Locating RH Crossmember Bracket
    G03889064Courtesy of FORD MOTOR CO.
  5. Install the RH crossmember bracket nuts

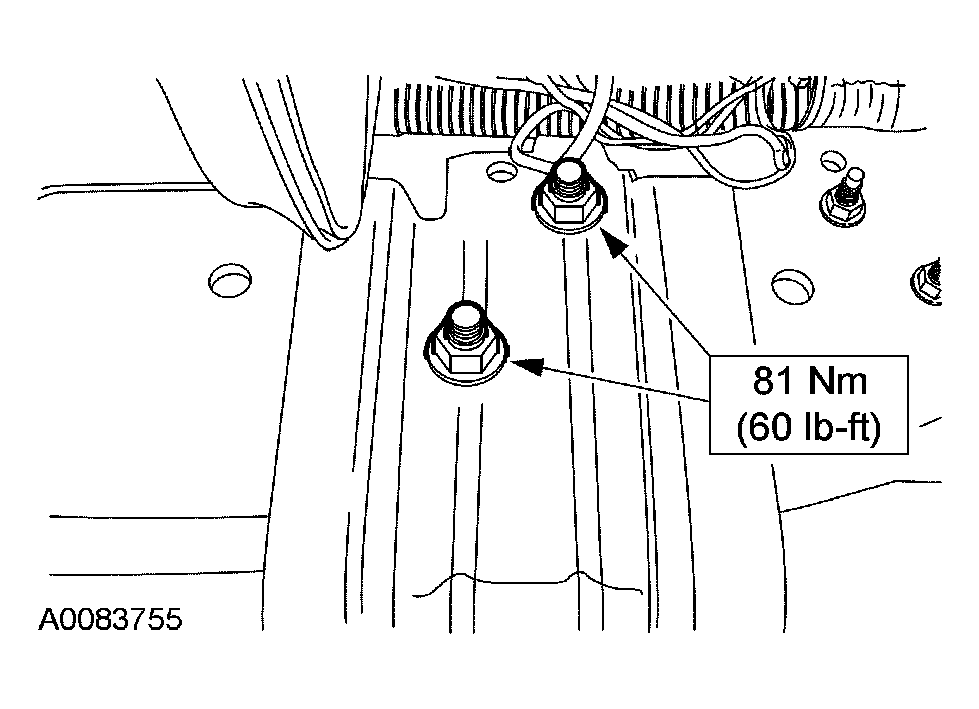

    Fig 5: Installing RH Crossmember Bracket Nuts
    G03889072Courtesy of FORD MOTOR CO.
  6. Tighten the rear insulator nuts.

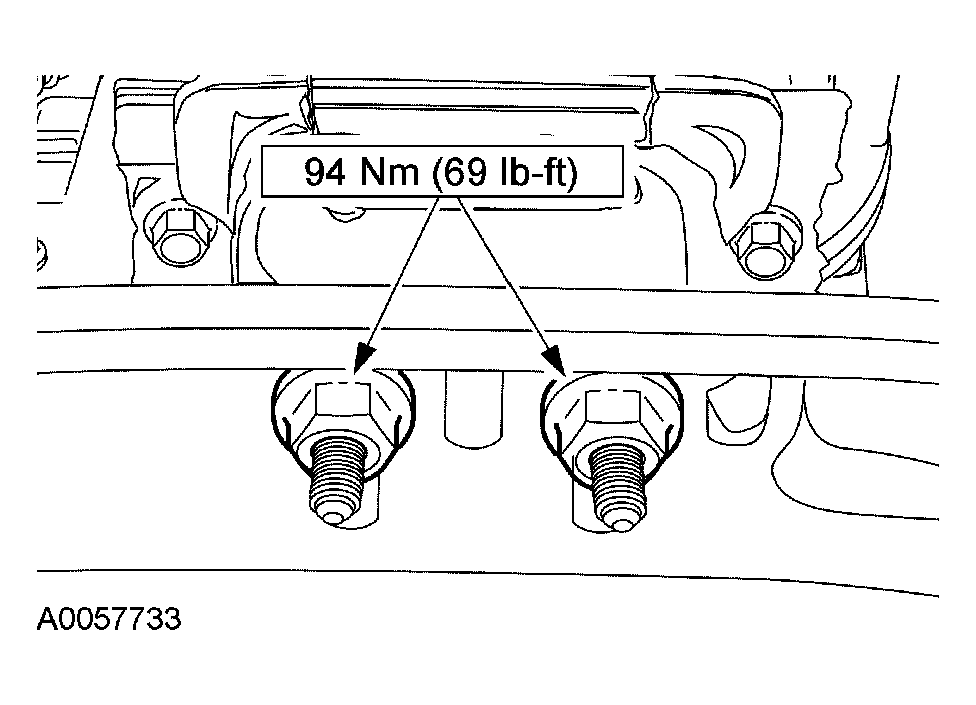

    Fig 6: Rear Transmission Mount Insulator Nuts With Torque Specification
    G03889190Courtesy of FORD MOTOR CO.
  7. Install the wire harness and install the two retaining clips to the rear of the crossmember.
    Fig 7: Identifying Retaining Clips At Rear Of Crossmember
    G03889060Courtesy of FORD MOTOR CO.
