Transmission Insulator And Retainer: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear transmission support insulator.
    1. Remove the rear transmission support insulator nuts.
    2. Remove the rear transmission support insulator bolts.

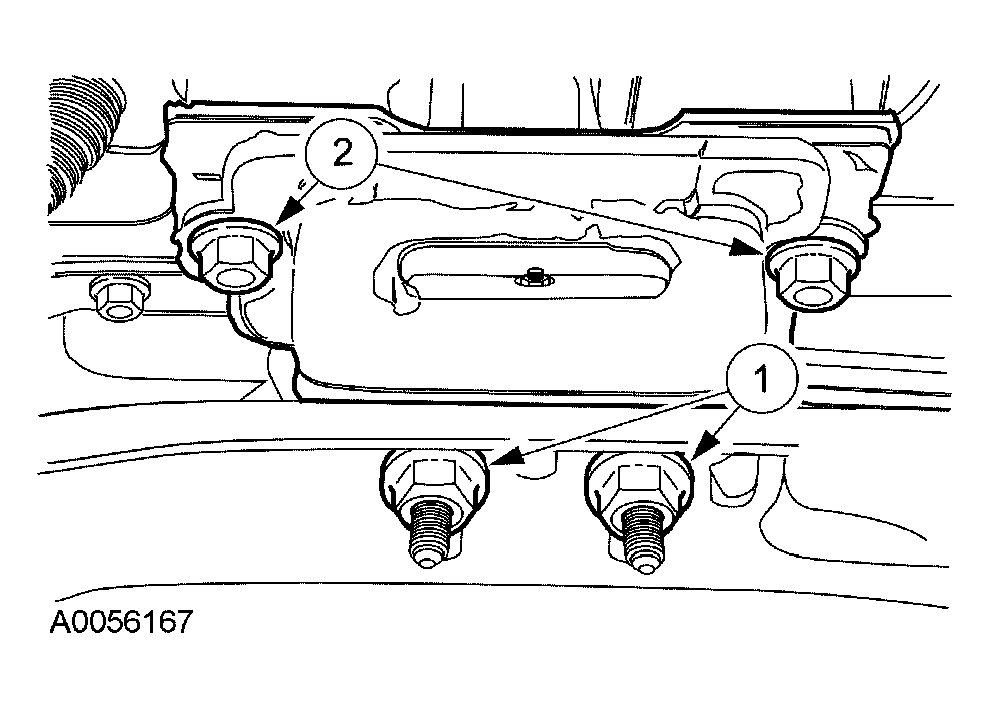

      Fig 1: Removing Rear Transmission Support Insulator Bolts
      G03889192Courtesy of FORD MOTOR CO.
  3. Using a suitable high-lift transmission jack, remove the rear transmission support insulator.
    1. Raise the transmission upward, off the transmission support insulator.
    2. Remove the rear transmission support insulator.

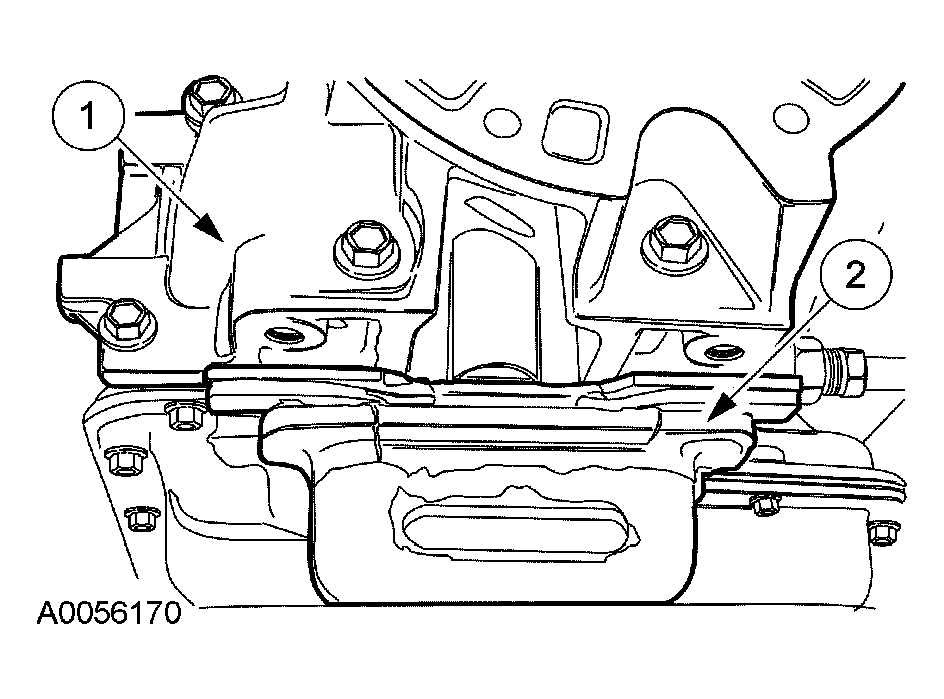

      Fig 2: Identifying Rear Transmission Mount
      G03889101Courtesy of FORD MOTOR CO.
