Transmission Insulator And Retainer: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear transmission support insulator.
    1. Install the rear transmission support insulator.
    2. Lower the transmission onto the transmission support insulator.

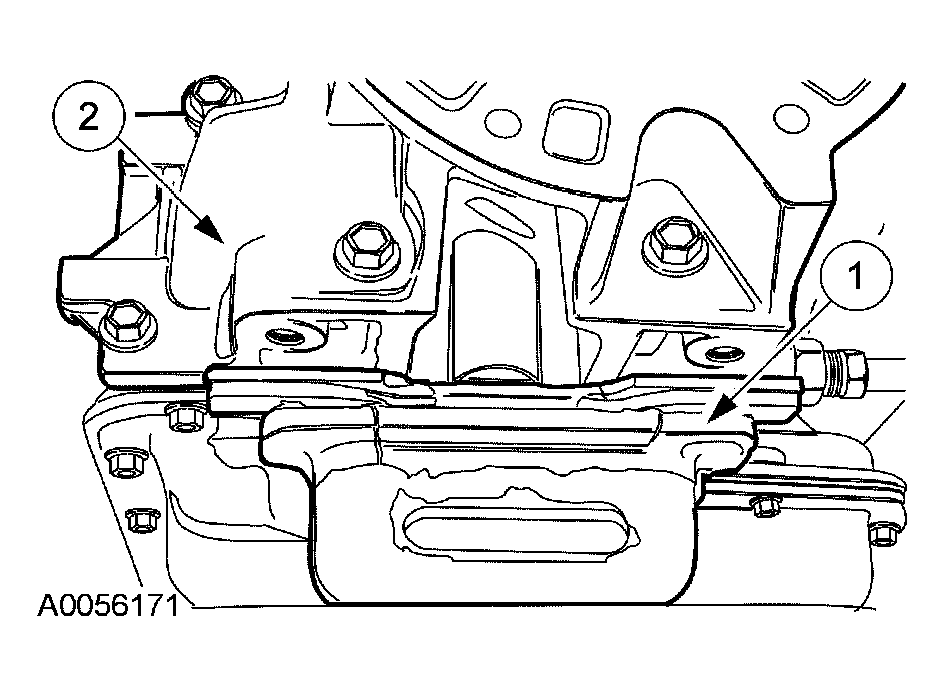

      Fig 1: Identifying Rear Transmission Mount
      G03889113Courtesy of FORD MOTOR CO.
    2. NOTE: It may be necessary to raise the back of the transmission slightly in order to install the bolts.
    Fig 2: Identifying Transmission Support Insulator Bolts
    G03889100Courtesy of FORD MOTOR CO.
  2. Loosely install the transmission support insulator bolts.
  3. Loosely install the transmission support insulator nuts.
    Fig 3: Identifying Transmission Support Insulator Nuts
    G03889099Courtesy of FORD MOTOR CO.
  4. Tighten the transmission support insulator bolts and nuts.

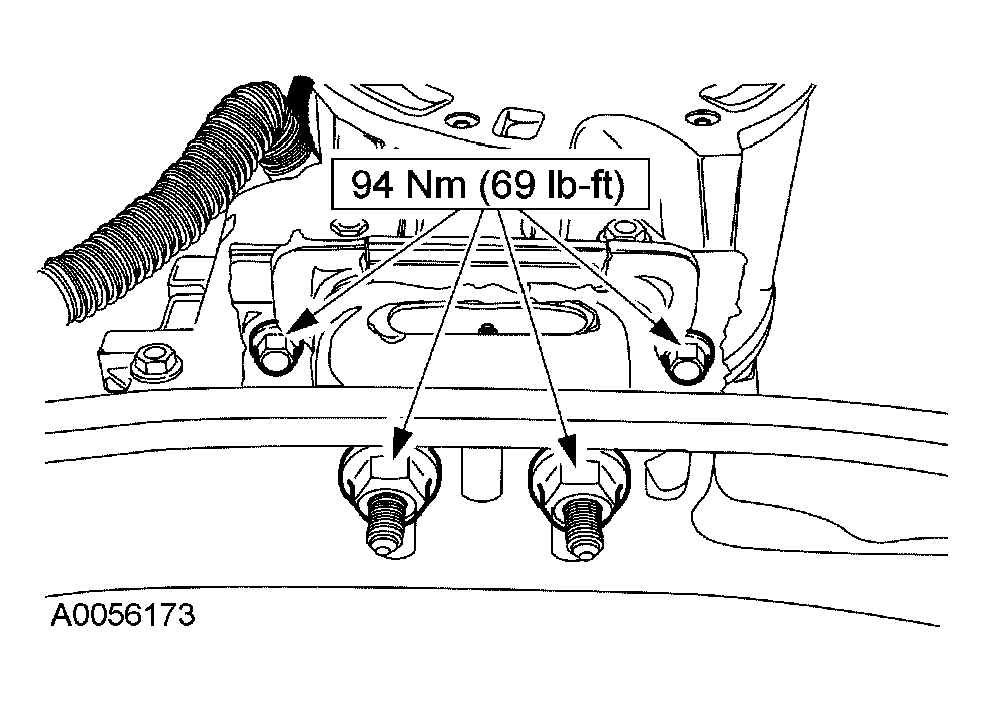

    Fig 4: Tightening Transmission Insulator Bolts And Nuts
    G03889114Courtesy of FORD MOTOR CO.
