Transmission Filler Tube: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring if damaged.
    Fig 1: Installing O-Ring Damaged
    G03889046Courtesy of FORD MOTOR CO.
    2. NOTE: Coat the O-ring at the bottom of the transmission fluid filler tube with transmission fluid.

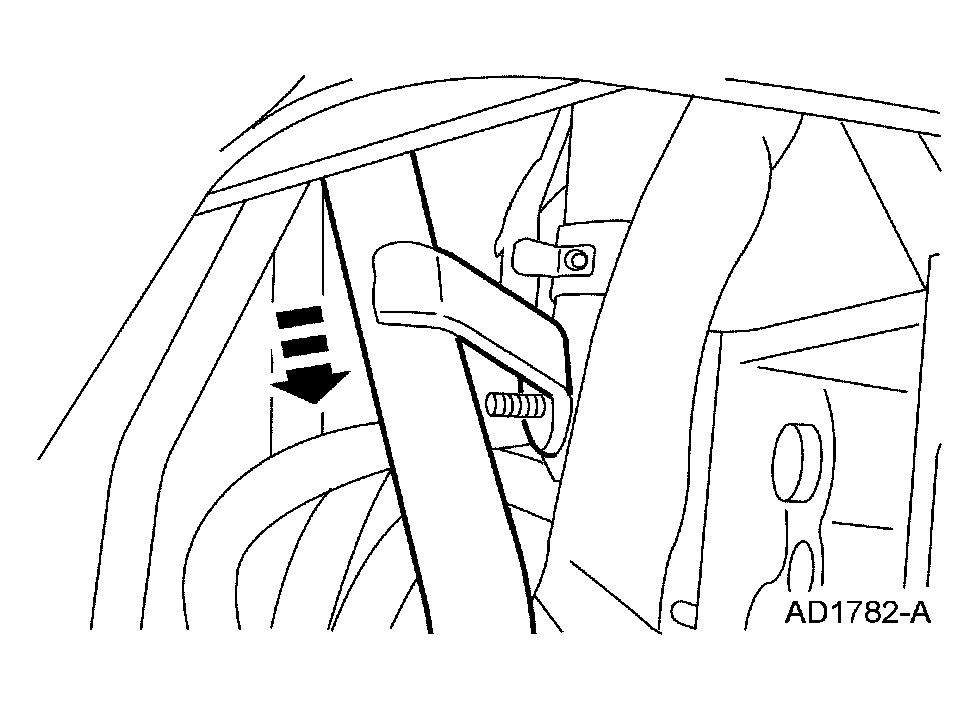

    Fig 2: Installing Transmission Fluid Filler Tube
    G03889048Courtesy of FORD MOTOR CO.
  2. Install the transmission fluid filler tube.
  3. Install the transmission fluid filler tube nut.

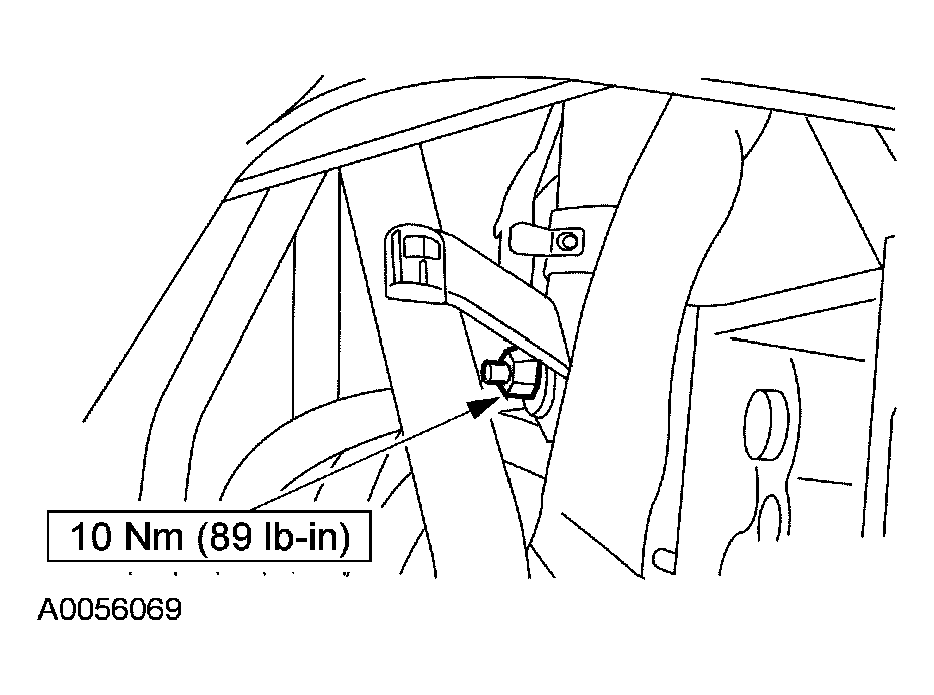

    Fig 3: Installing Transmission Fluid Filler Tube Nut
    G03886414Courtesy of FORD MOTOR CO.
  4. Install the fluid level indicator.
    Fig 4: Installing Fluid Level Indicator
    G03889043Courtesy of FORD MOTOR CO.
