Solenoid Body Assembly: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan, gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  2. Disconnect the solenoid body electrical connector.
    Fig 1: Identifying Solenoid Body Electrical Connector
    G03889052Courtesy of FORD MOTOR CO.
    3. NOTE: While lowering the solenoid body, the manual valve may fall out of the solenoid body.
  3. Remove the solenoid body.
    1. Disconnect the transmission range sensor electrical connector.
    2. Remove the solenoid body bolts.
    3. Remove the solenoid body.

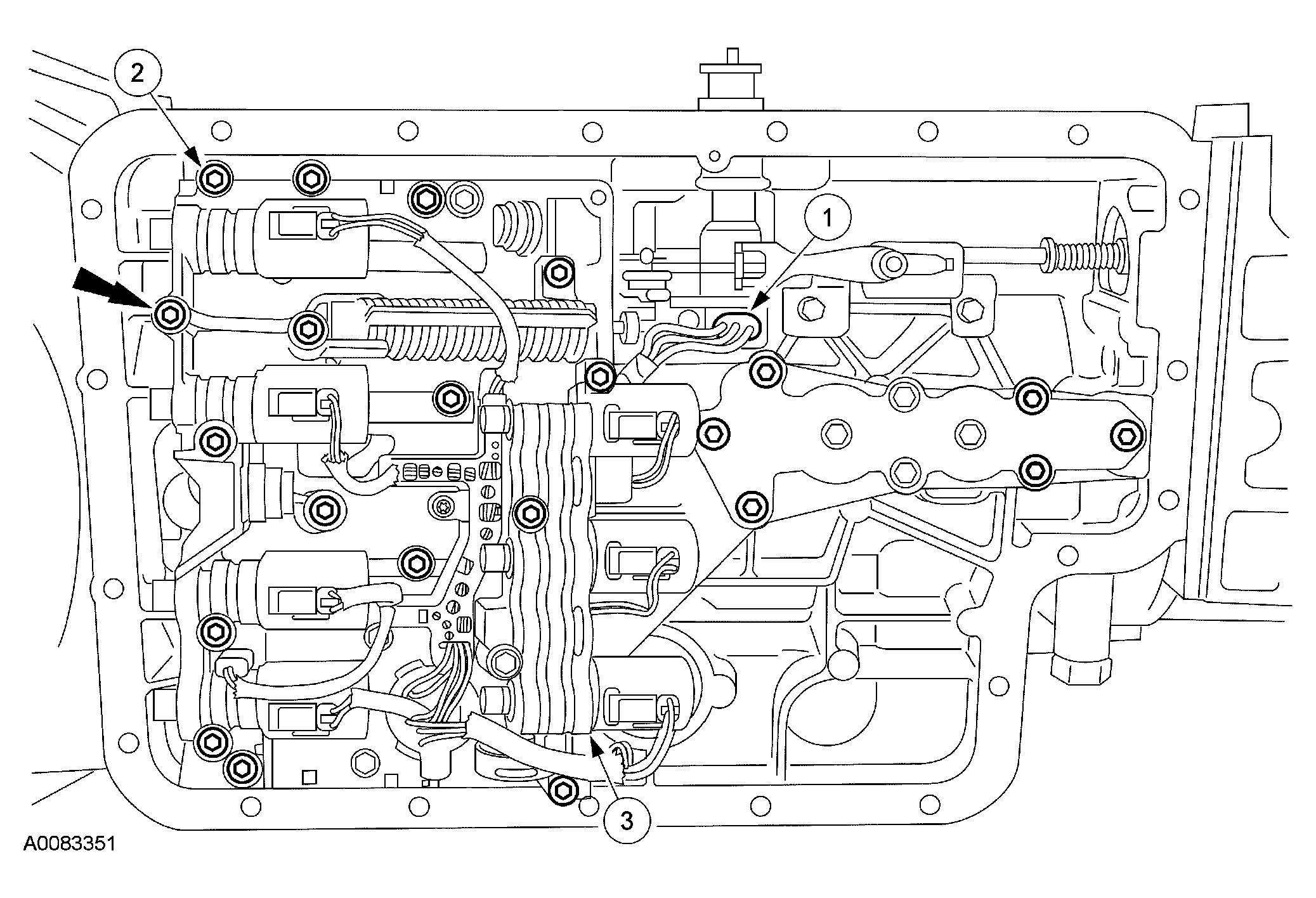

      Fig 2: Removing Solenoid Body
      G03889053Courtesy of FORD MOTOR CO.
  4. Remove the solenoid body gasket.
    Fig 3: Removing Solenoid Body Gasket
    G03889054Courtesy of FORD MOTOR CO.
