Solenoid Body Assembly: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new solenoid body gasket.
    Fig 1: View Of Solenoid Body Gasket
    G03889054Courtesy of FORD MOTOR CO.

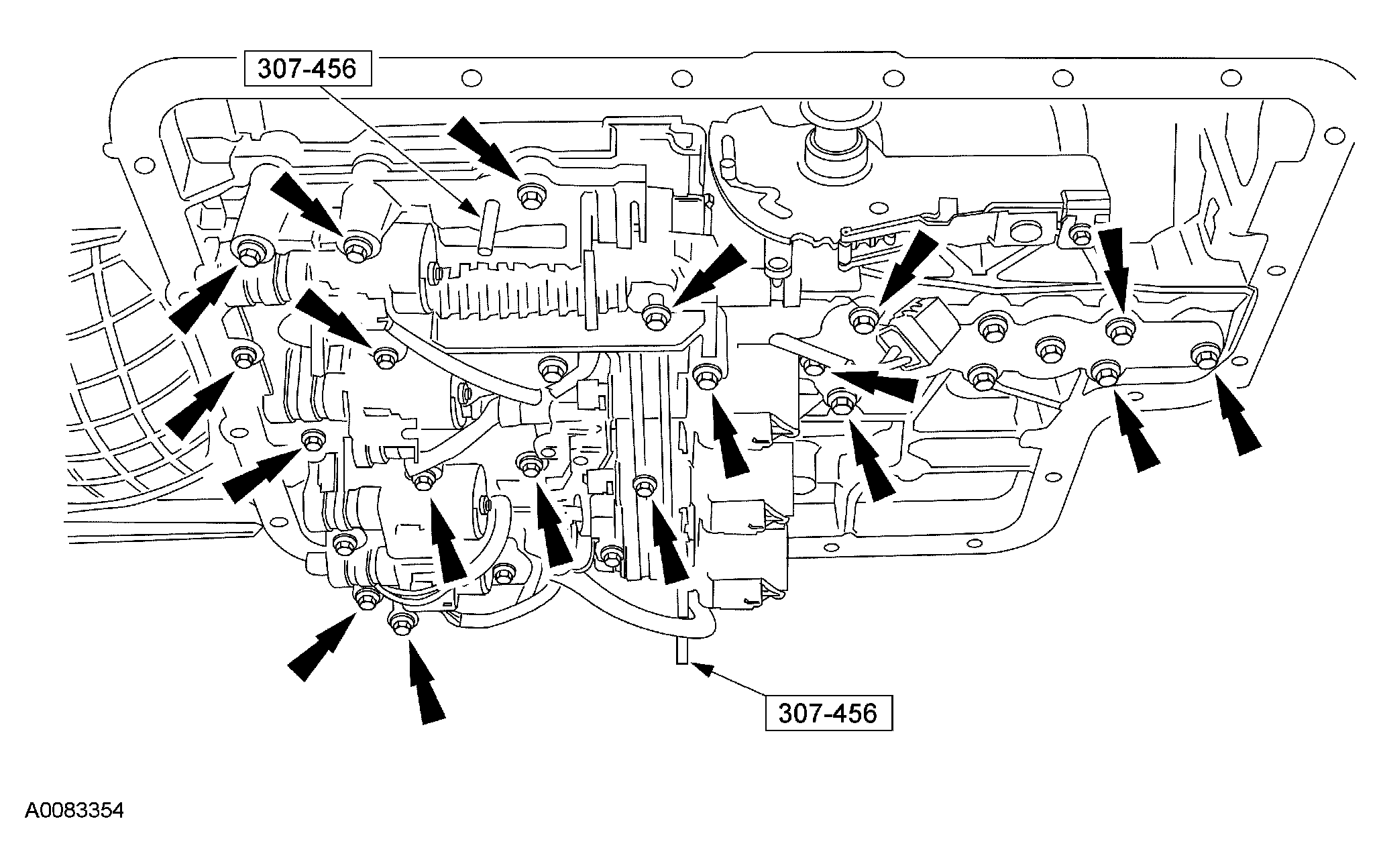

  2. Using the special tools, install the solenoid body and loosely install the bolts.
    • While installing the solenoid body, align the manual valve.
      Fig 2: Aligning Manual Valve
      G03889056Courtesy of FORD MOTOR CO.

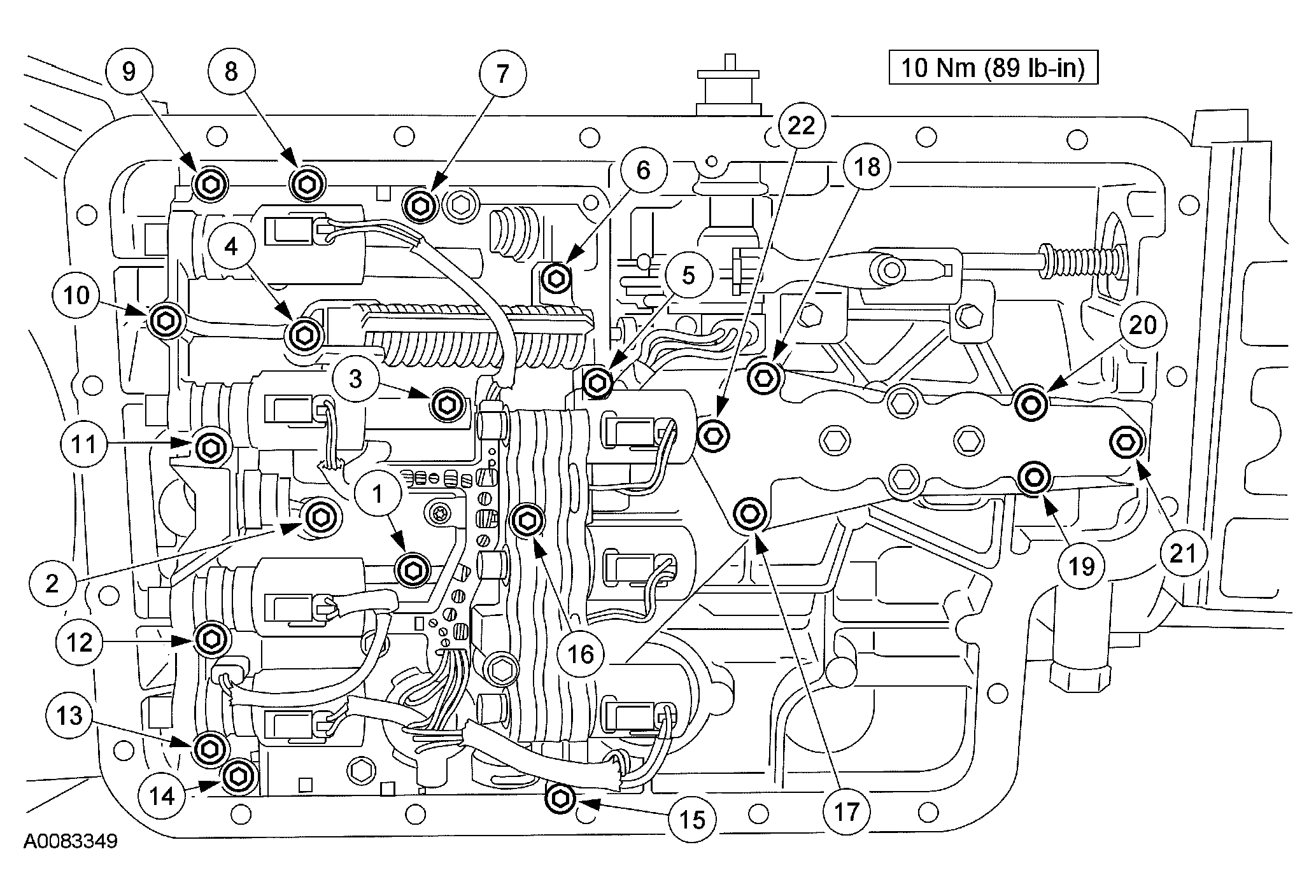

  3. Tighten all the bolts in the sequence shown in Fig 3.
    Fig 3: Tightening All Bolts
    G03889057Courtesy of FORD MOTOR CO.

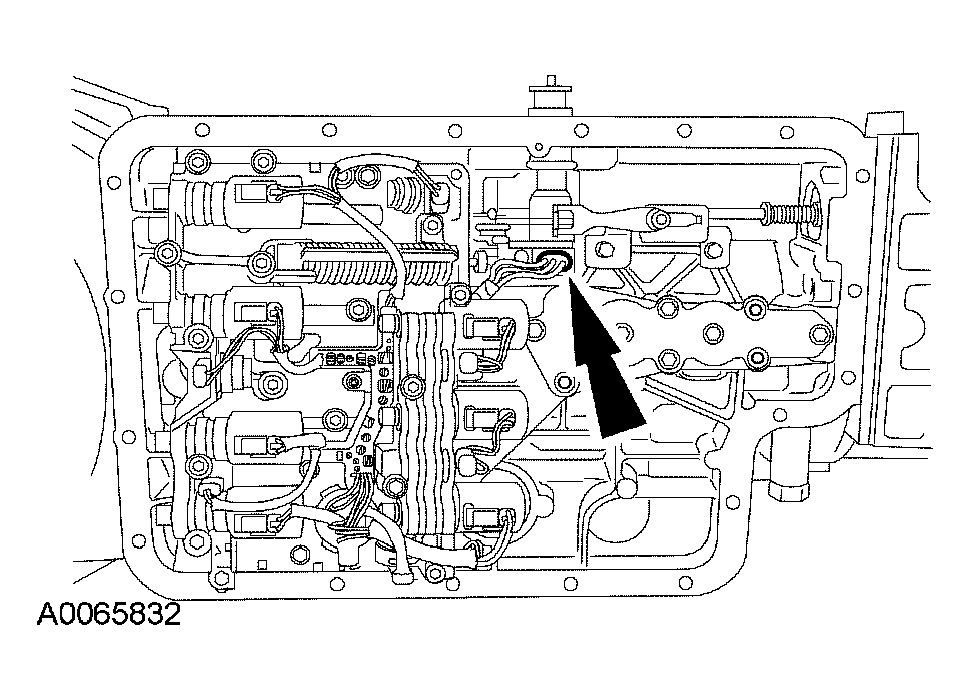

  4. Connect the transmission range sensor connector.
    Fig 4: Connecting Transmission Range Sensor Connector
    G03889058Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid filter, pan gasket and pan.
  6. Connect the solenoid body electrical connector.
    Fig 5: Installing Solenoid Body Electrical Connector
    G03889059Courtesy of FORD MOTOR CO.
