Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the output shaft speed (OSS) sensor.
    Fig 1: Identifying Output Shaft Speed (OSS) Sensor Electrical Connector
    G03889074Courtesy of FORD MOTOR CO.
    3. NOTE: Prior to removing the speed sensor, make sure that the area around the sensor is free of debris to prevent contamination of the transmission.
  3. Remove the output shaft speed (OSS) sensor.
    1. Remove the bolt.
    2. Remove the output shaft speed (OSS) sensor.

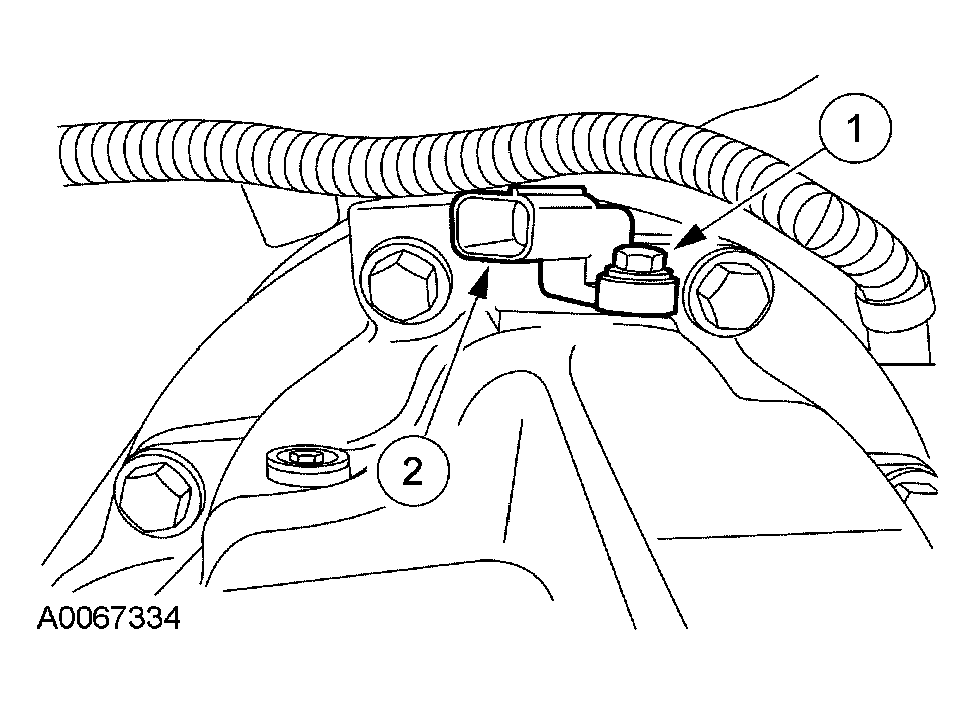

      Fig 2: Removing Output Shaft Speed (OSS) Sensor
      G03889075Courtesy of FORD MOTOR CO.
