Internal Harness Service: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control solenoid body. For additional information, refer to SOLENOID BODY ASSEMBLY .
  2. Disconnect the internal wiring harness.
    1. Remove the two screws.
    2. Disconnect the transmission fluid temperature sensor electrical connector.
    3. Disconnect the solenoid electrical connectors.

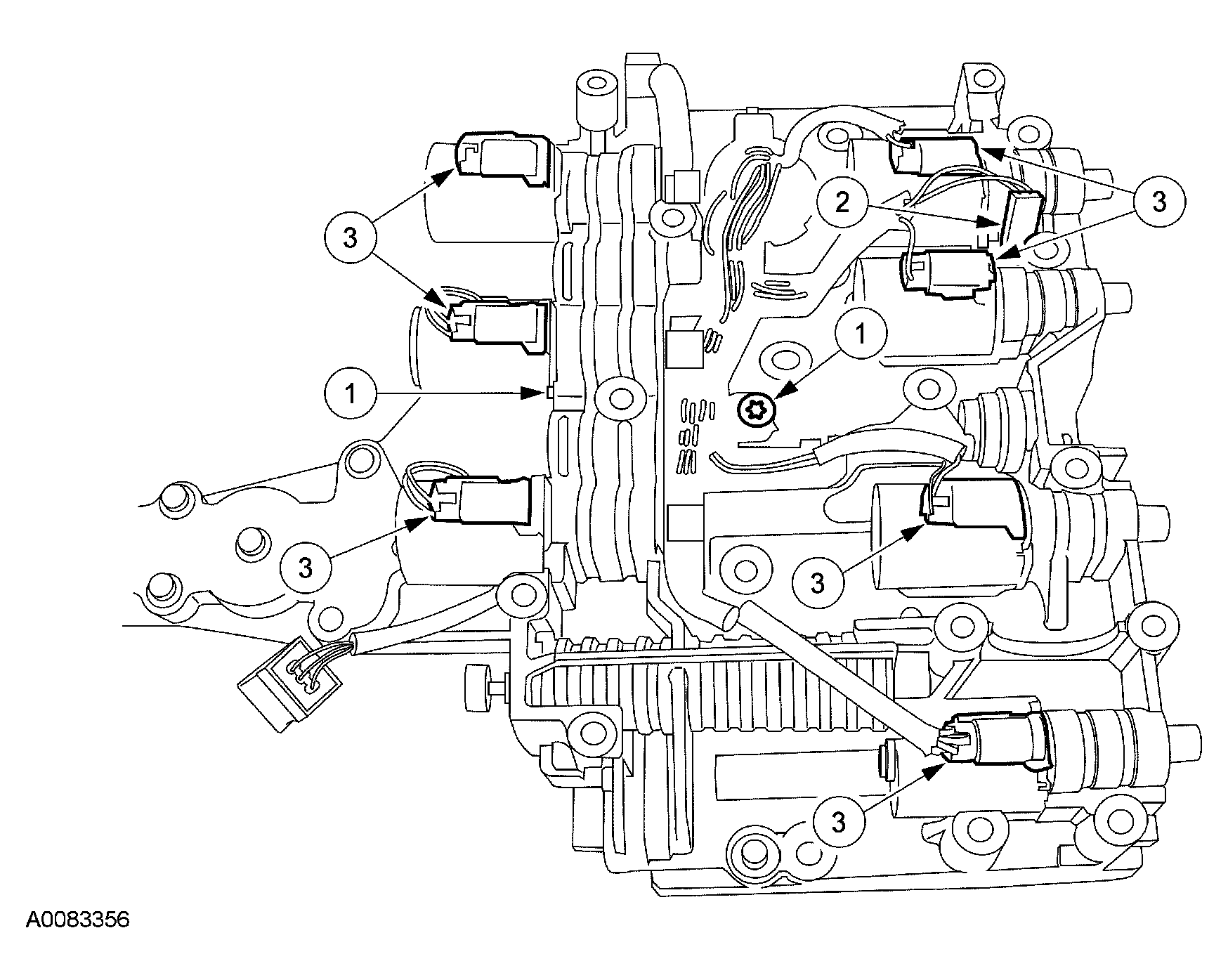

      Fig 1: Disconnecting Solenoid Electrical Connectors
      G03889119Courtesy of FORD MOTOR CO.
  3. Remove the bulkhead connector O-ring.
    Fig 2: Removing Bulkhead Connector O-Ring
    G03889120Courtesy of FORD MOTOR CO.
  4. Lift the tab twisting the bulkhead connector, and push it through the solenoid body, and remove the wire harness.
