Extension Housing Seal: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    Vehicles without a fixed flange

  1. Using the special tool, install the extension housing seal.
    Fig 1: Installing Extension Housing Seal
    G03889093Courtesy of FORD MOTOR CO.

    2. Vehicles with a fixed flange

  2. Using the special tool, install the output shaft seal.

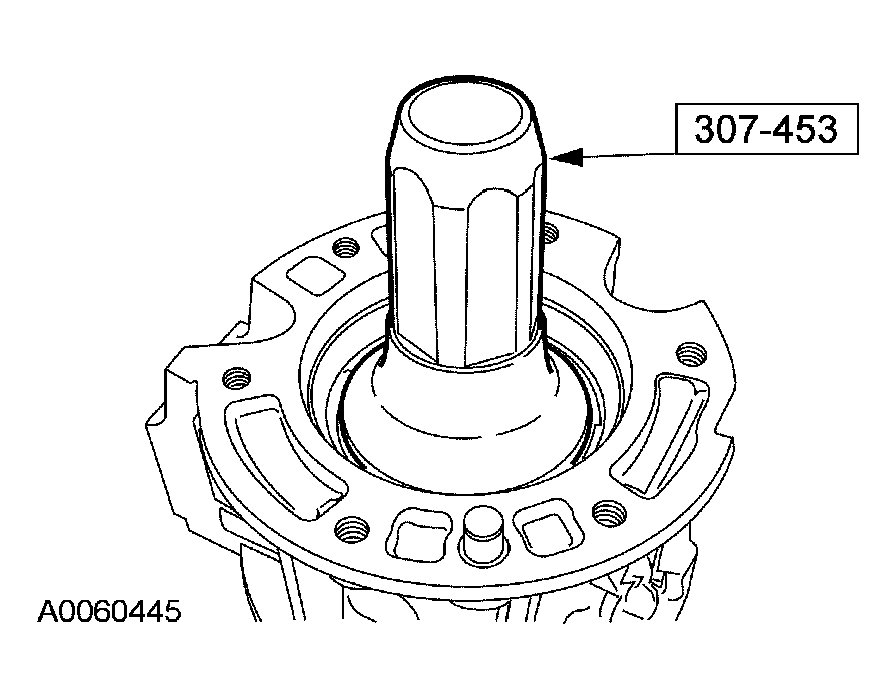

    Fig 2: Installing Output Shaft Seal
    G03889094Courtesy of FORD MOTOR CO.
  3. Using the special tool, install a new output shaft nut.
    Fig 3: Installing A New Output Shaft Nut Using Special Tool With Torque Specification
    G03889095Courtesy of FORD MOTOR CO.
  4. Install the output shaft flange.
    1. Install the output shaft flange.
    2. Install a new bolt.
      Fig 4: Output Shaft Flange - With Torque Specification
      G03889096Courtesy of FORD MOTOR CO.

    5. All vehicles

  5. Install the driveshaft. For additional information, refer to DRIVESHAFT .
