Digital Transmission Range (Tr) Sensor: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

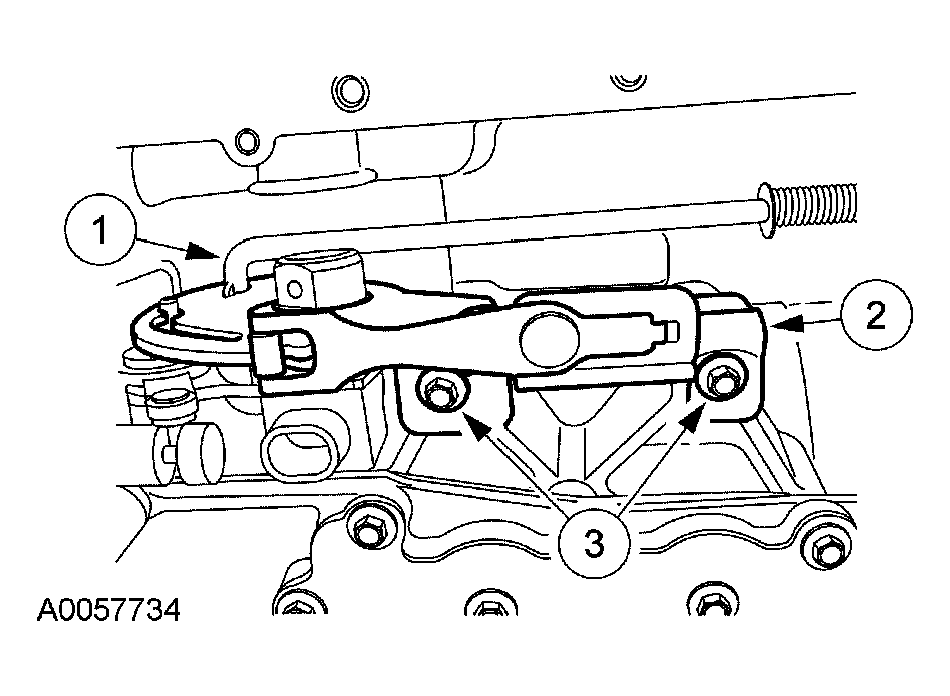

Install the transmission range sensor and detent lever assembly.
1. Connect the park rod to the detent lever assembly.
2. Install the transmission range sensor and the detent lever assembly.
3. Loosely install the bolts.

  Fig 1: Installing Bolts
  Courtesy of FORD MOTOR CO.
Install the manual control lever shaft.

Fig 2: Installing Manual Control Lever Shaft
Courtesy of FORD MOTOR CO.

NOTE: Leave a small portion of the pin exposed.

Fig 3: Installing Manual Valve Detent Lever Shaft Retaining Pin Into Case

Courtesy of FORD MOTOR CO.

Install the manual valve detent lever shaft retaining pin into the case.

NOTE: When the retaining pin is installed correctly, 2 mm (0.08 in) of the pin will be exposed.

Fig 4: Locating Manual Valve Detent Lever Shaft Retaining Pin

Courtesy of FORD MOTOR CO.

Install a new manual valve detent lever shaft retaining pin.

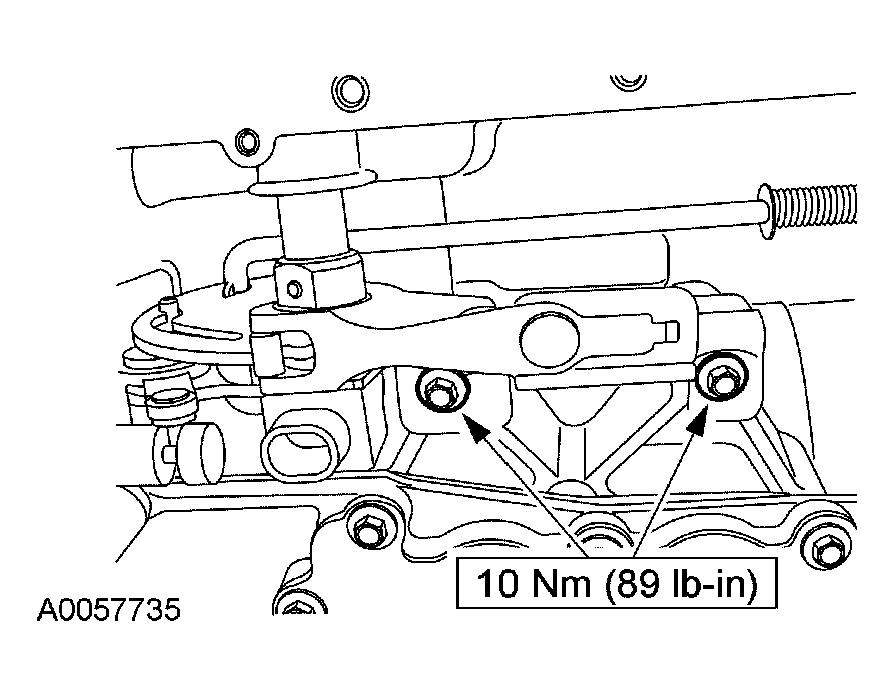

Tighten the bolts.

Fig 5: Tightening Bolts
Courtesy of FORD MOTOR CO.
Connect the transmission range sensor electrical connector.

Fig 6: Connecting Transmission Range Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan, gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
Connect the shift cable end.

Fig 7: Connecting Shift Cable End
Courtesy of FORD MOTOR CO.
Adjust the shift linkage. Verify that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
