Transmission Fluid Drain And Refill - Without Torque Converter Drain Plug And With Fluid Pan Drain Plug: Refill

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drain plug.

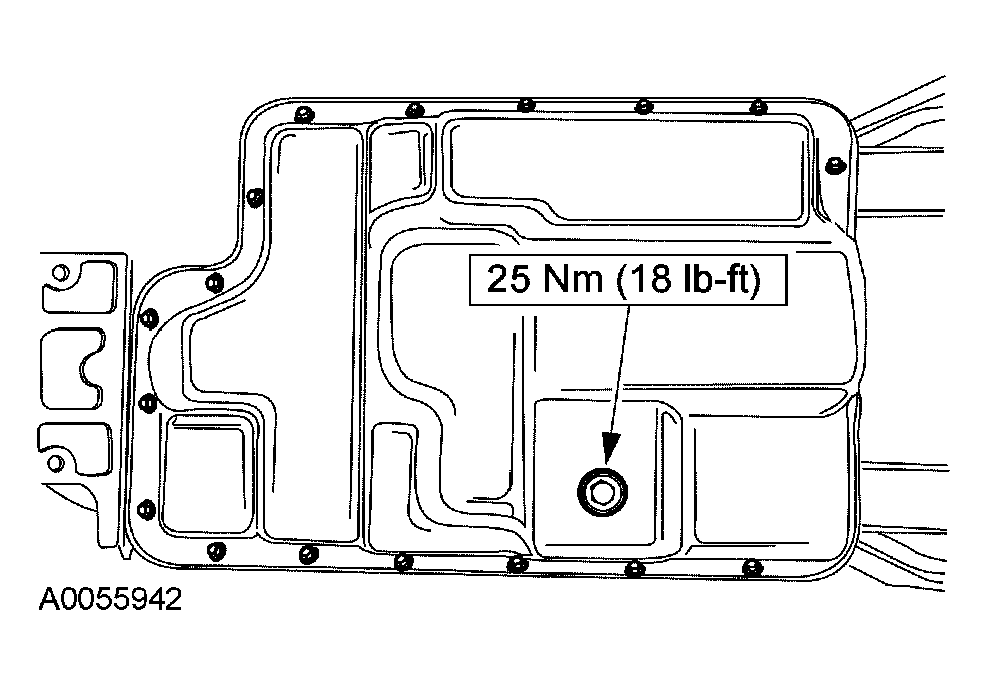

    Fig 1: Drain Plug With Torque Specification
    G03889034Courtesy of FORD MOTOR CO.
    2. CAUTION: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.
  2. Fill the transmission.
    • Add 7.0 liters (7.5 quarts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
  3. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  4. With the engine running and the transmission at normal operating temperature 66 - 77°C (150 - 170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24 liter (0.5 pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
