Solenoid Body: Assembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new gasket and the backing plate.

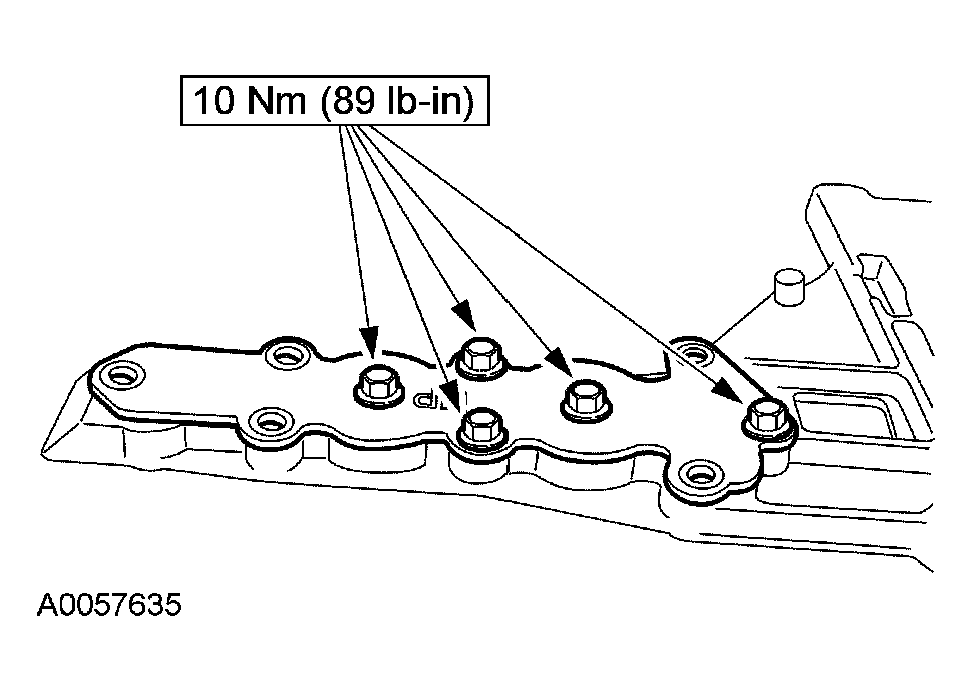

    Fig 1: Installing New Gasket And Backing Plate
    G03889351Courtesy of FORD MOTOR CO.
  2. Install a new filter screen gasket.
    Fig 2: Installing New Filter Screen Gasket
    G03889349Courtesy of FORD MOTOR CO.
    3. NOTE: Tighten the bolts in a crisscross pattern to prevent the gasket from becoming distorted.

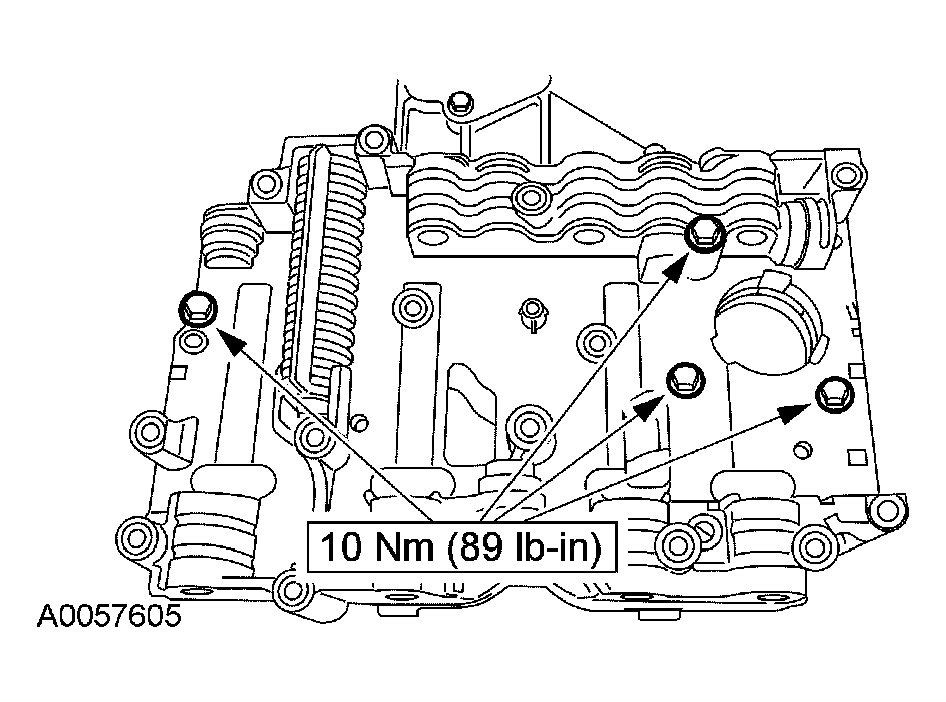

    Fig 3: Assembling Top And Bottom Halves Of Solenoid Body
    G03889353Courtesy of FORD MOTOR CO.
  3. Assemble the top and bottom halves of the solenoid body.
  4. Install the TFT sensor.
    Fig 4: Installing TFT Sensor
    G03889347Courtesy of FORD MOTOR CO.
  5. Install the shift solenoids with the E-clips.
    Fig 5: Installing Shift Solenoids With E-Clips
    G03889346Courtesy of FORD MOTOR CO.
  6. Install a new O-ring on the solenoid body electrical connector in the uppermost groove.
    Fig 6: Locating Solenoid Body Electrical Connector O-Ring Seal
    G03889078Courtesy of FORD MOTOR CO.
  7. Install the solenoid body harness and connect the connectors.
    Fig 7: Installing Solenoid Body Harness And Connect Connectors
    G03889345Courtesy of FORD MOTOR CO.
  8. Install the manual valve.
    Fig 8: Installing Manual Valve
    G03889343Courtesy of FORD MOTOR CO.
