Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Individual parts of the planet assemblies are not repairable.

Remove the lube slinger.

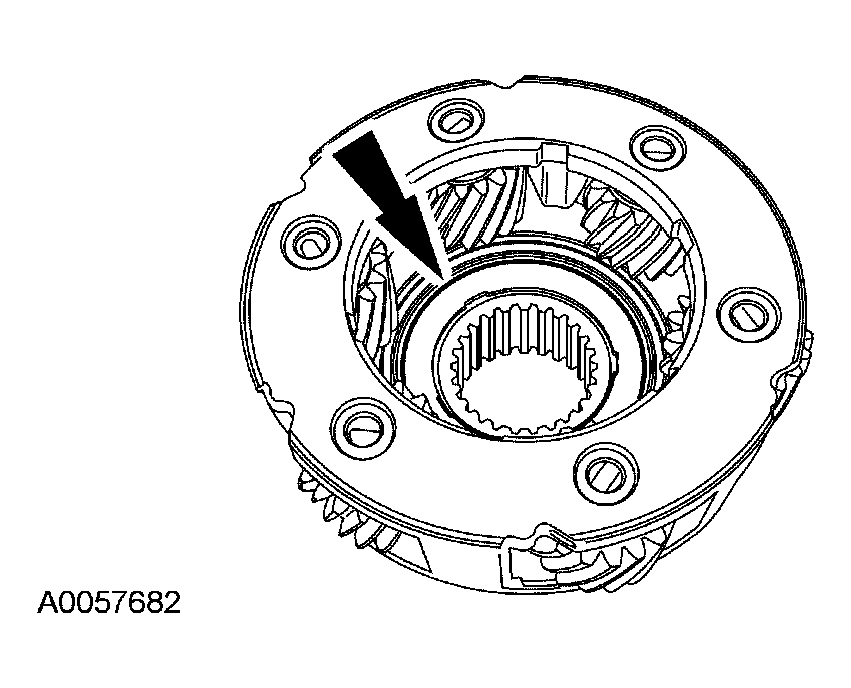

Fig 1: Removing Lube Slinger
Courtesy of FORD MOTOR CO.
Remove the No. 12 forward clutch thrust bearing.

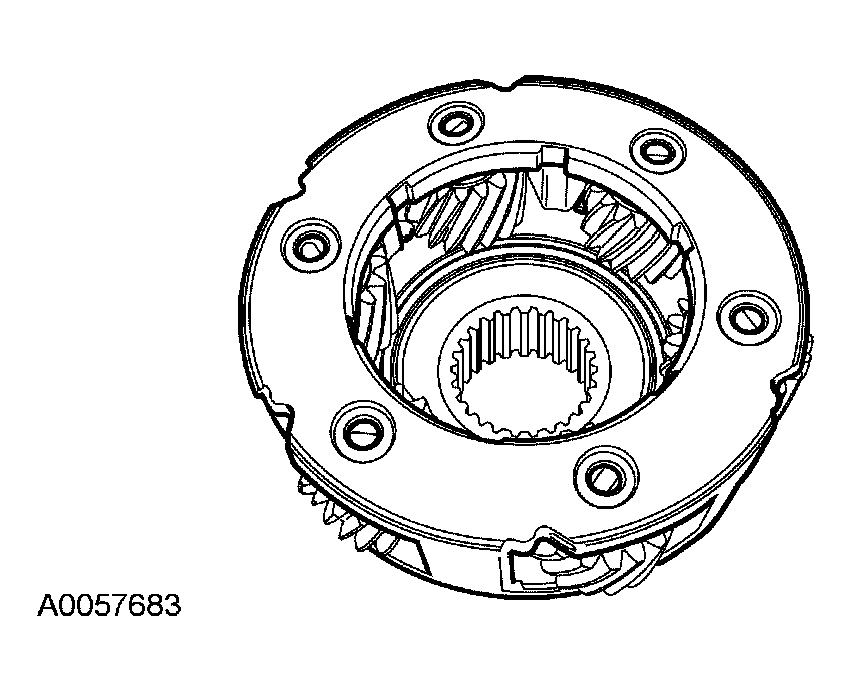

Fig 2: Removing No. 12 Forward Clutch Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the No. 11 thrust bearing.

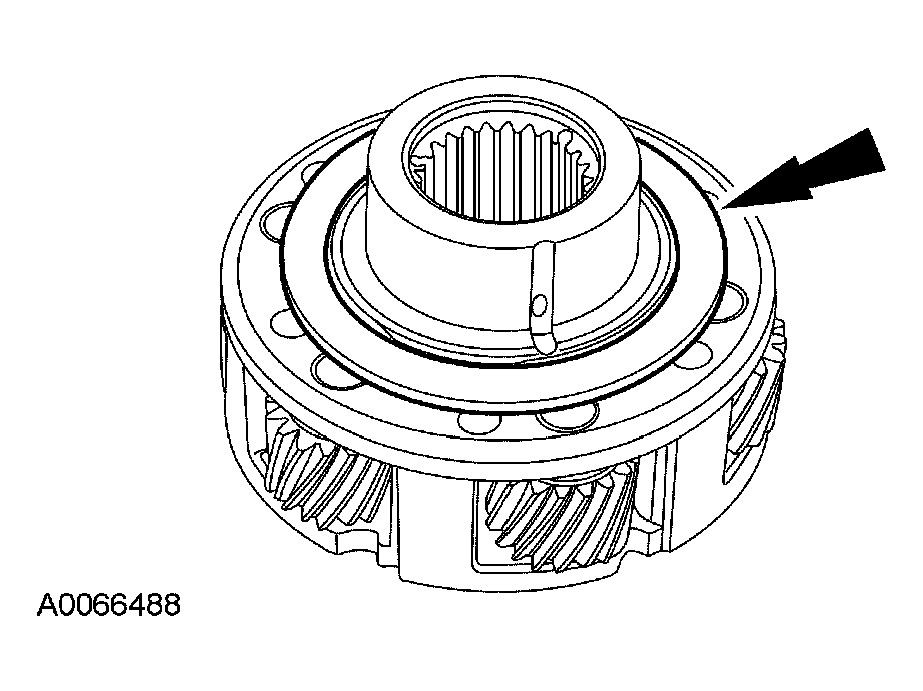

Fig 3: Removing No. 11 Thrust Bearing
Courtesy of FORD MOTOR CO.
Inspect the forward planet assembly.
- The pins and shafts in the plant assemblies should be checked for loose fit or damage. Use a new planet assembly if either condition exists.
- Inspect the pinion gears for damaged or excessively worn teeth.
- Check for free rotation of the pinion gears.

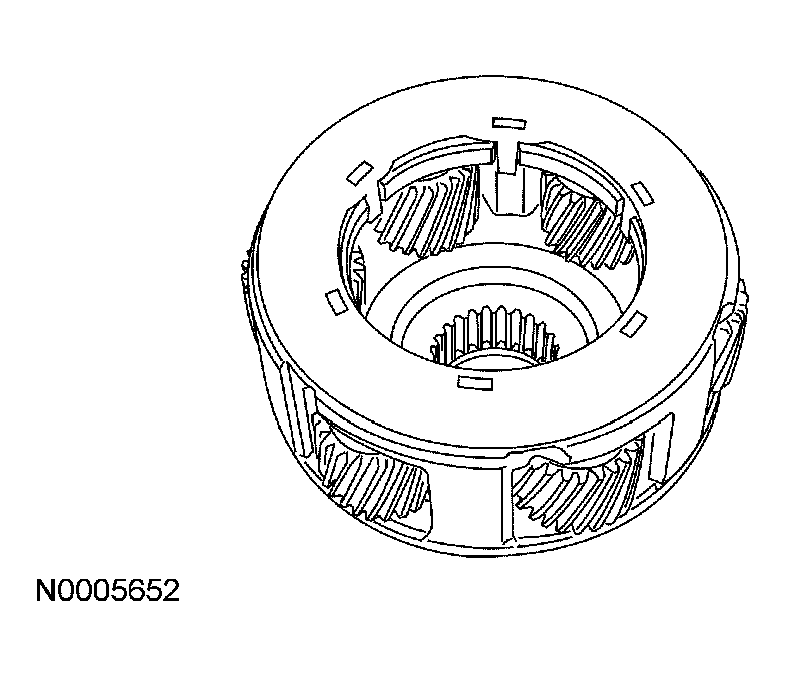

  Fig 4: Inspecting Forward Planet Assembly
  Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
- Lightly lubricate the thrust bearings with clean automatic transmission fluid to hold them in place during assembly.
- The No. 12 thrust bearing must be installed with the notched inner race facing outward.
