Forward Hub And Ring Gear: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the No. 10 forward clutch hub thrust washer.

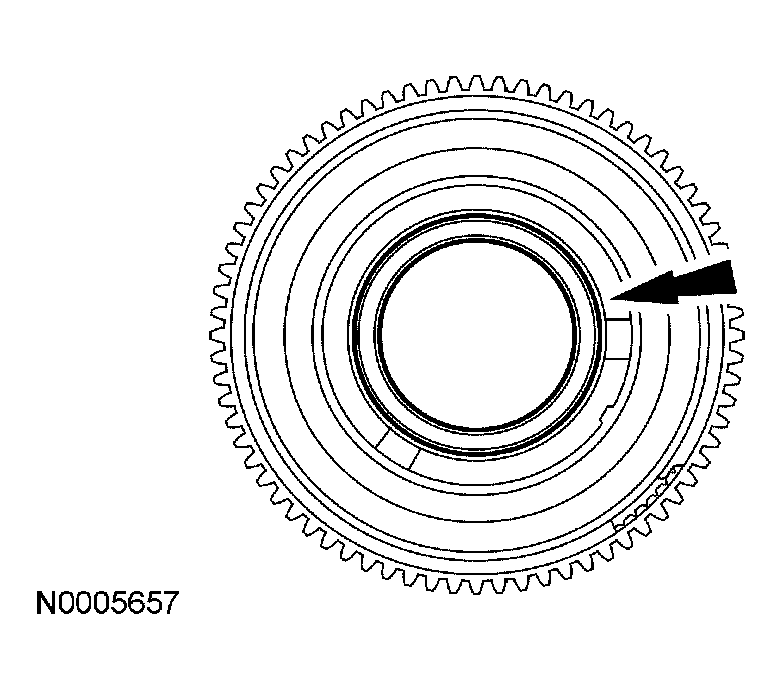

    Fig 1: Removing Forward Clutch Hub Thrust Washer
    G03889429Courtesy of FORD MOTOR CO.
  2. Remove the forward hub retaining ring.

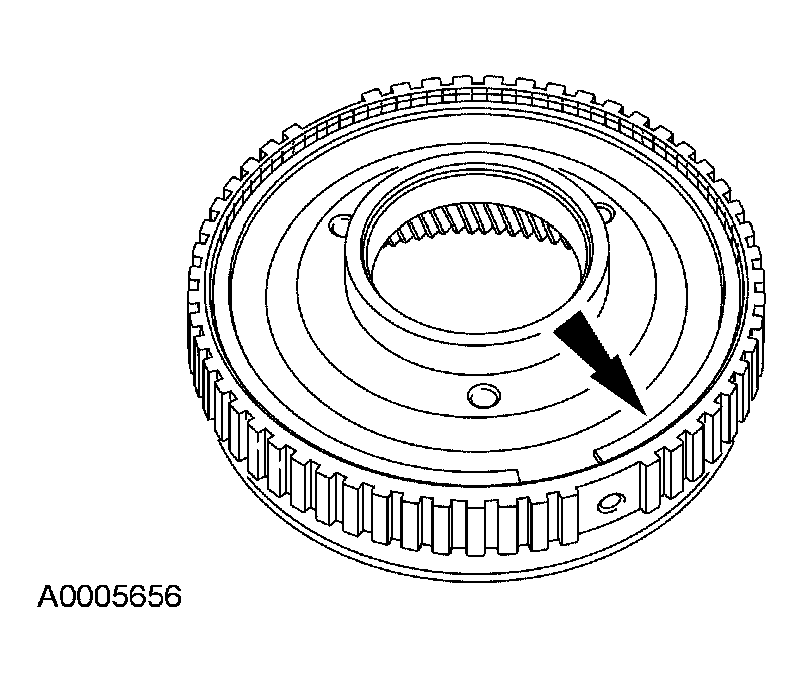

    Fig 2: Identifying Forward Hub Retaining Ring
    G03889430Courtesy of FORD MOTOR CO.
  3. Remove the forward hub.

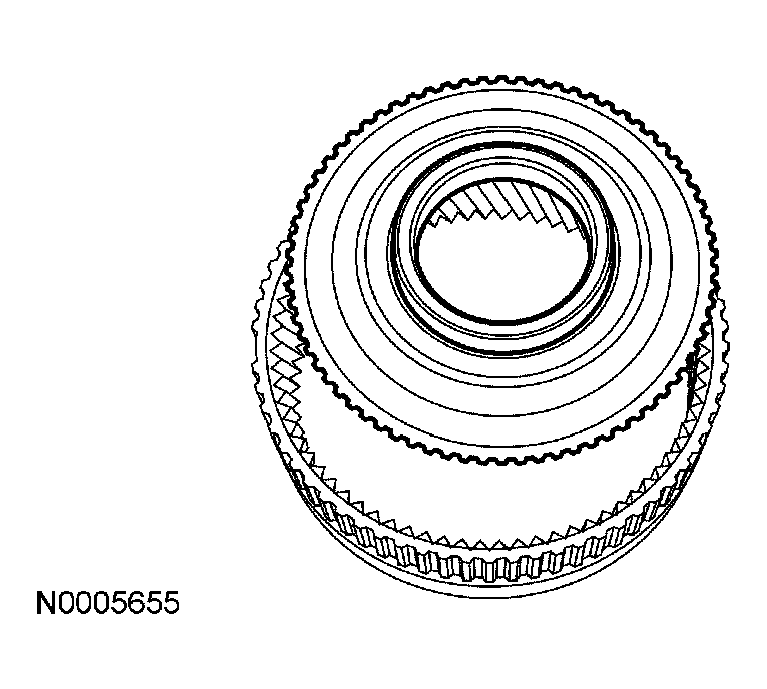

    Fig 3: Removing Forward Hub
    G03889431Courtesy of FORD MOTOR CO.
