Forward GEARTRAIN Assembly - Disassembly: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

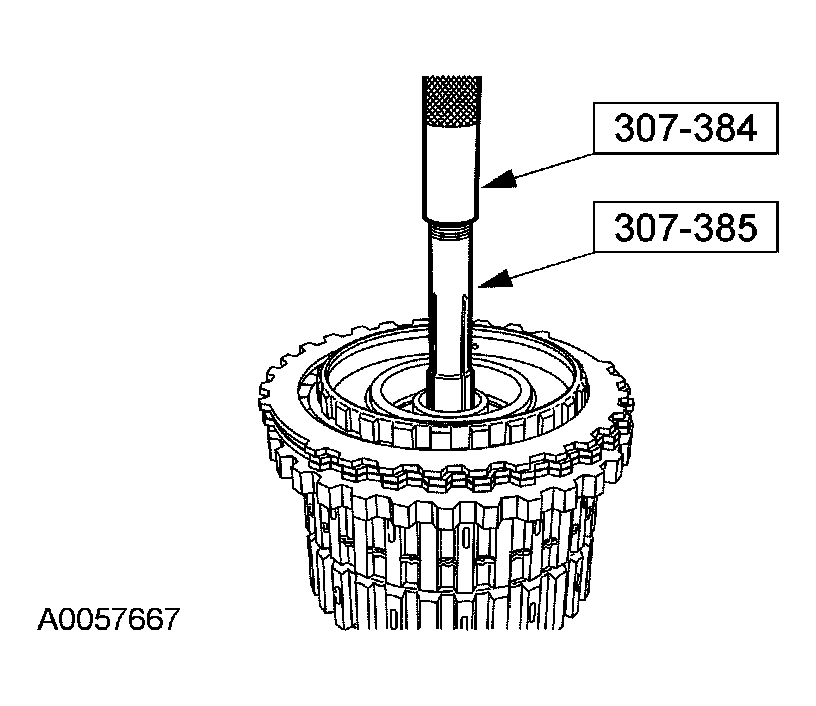

  1. Remove the special tools.
    Fig 1: Removing Special Tools
    G03889434Courtesy of FORD MOTOR CO.

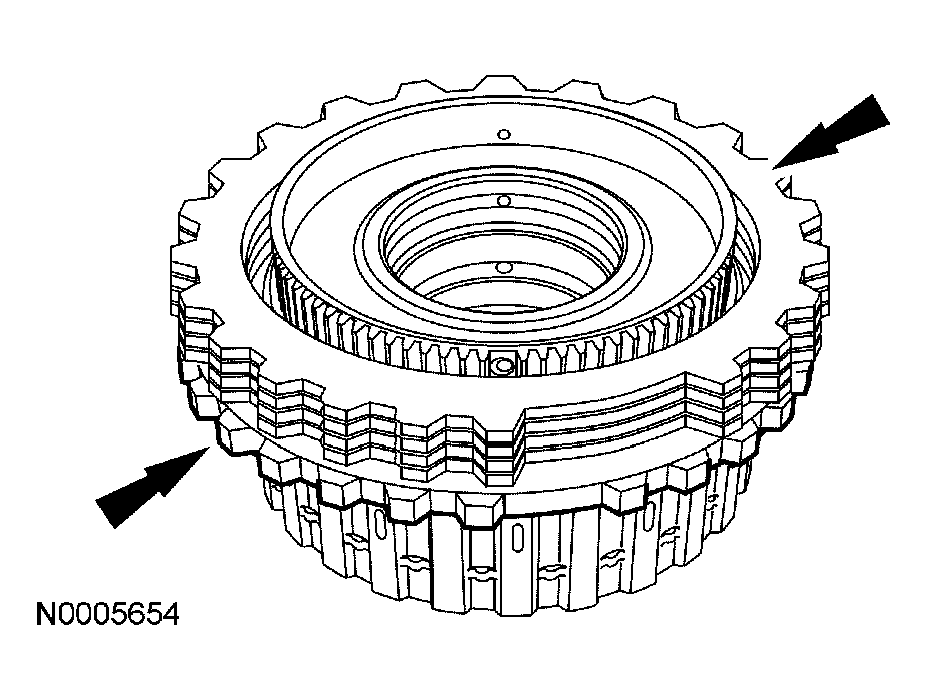

  2. Remove the intermediate clutch plates and pressure plate.
    Fig 2: Removing Intermediate Clutch Plates And Pressure Plate
    G03889435Courtesy of FORD MOTOR CO.

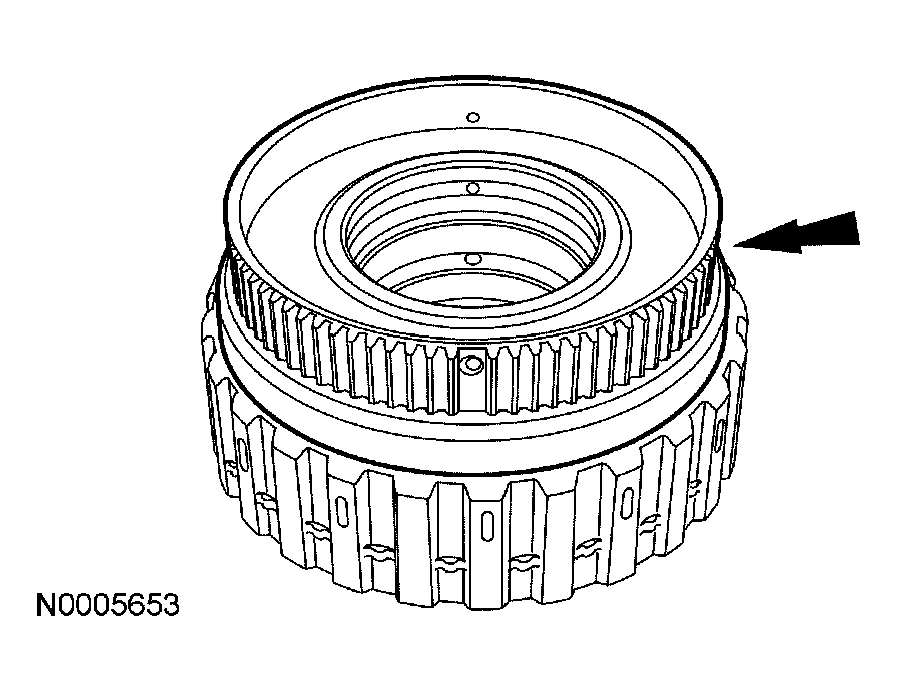

  3. Remove the direct clutch assembly.
    Fig 3: Removing Direct Clutch Assembly
    G03889436Courtesy of FORD MOTOR CO.
