Direct Clutch Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Soak all friction clutch plates in clean automatic transmission fluid.

Remove the snap ring.

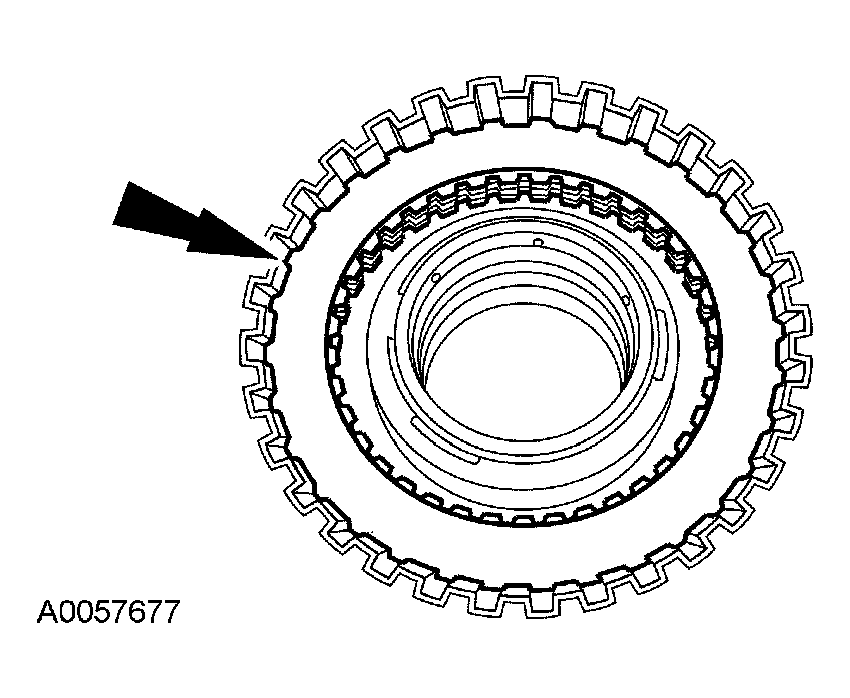

Fig 1: Removing Snap Ring
Courtesy of FORD MOTOR CO.
Remove the direct clutch plates.

Fig 2: Removing Direct Clutch Plates
Courtesy of FORD MOTOR CO.
Using the special tools, remove the snap ring.

Fig 3: Identifying Snap Ring With Special Tools
Courtesy of FORD MOTOR CO.

NOTE: Note the orientation of the return spring.

Fig 4: Removing Direct Clutch Balance Piston And Return Spring

Courtesy of FORD MOTOR CO.

Remove the direct clutch balance piston and return spring. Discard the direct clutch balance piston.
Remove and discard the direct clutch piston.

Fig 5: Removing Direct Clutch Piston
Courtesy of FORD MOTOR CO.
Clean and inspect all components for damage.
