Transmission Connector Layouts

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

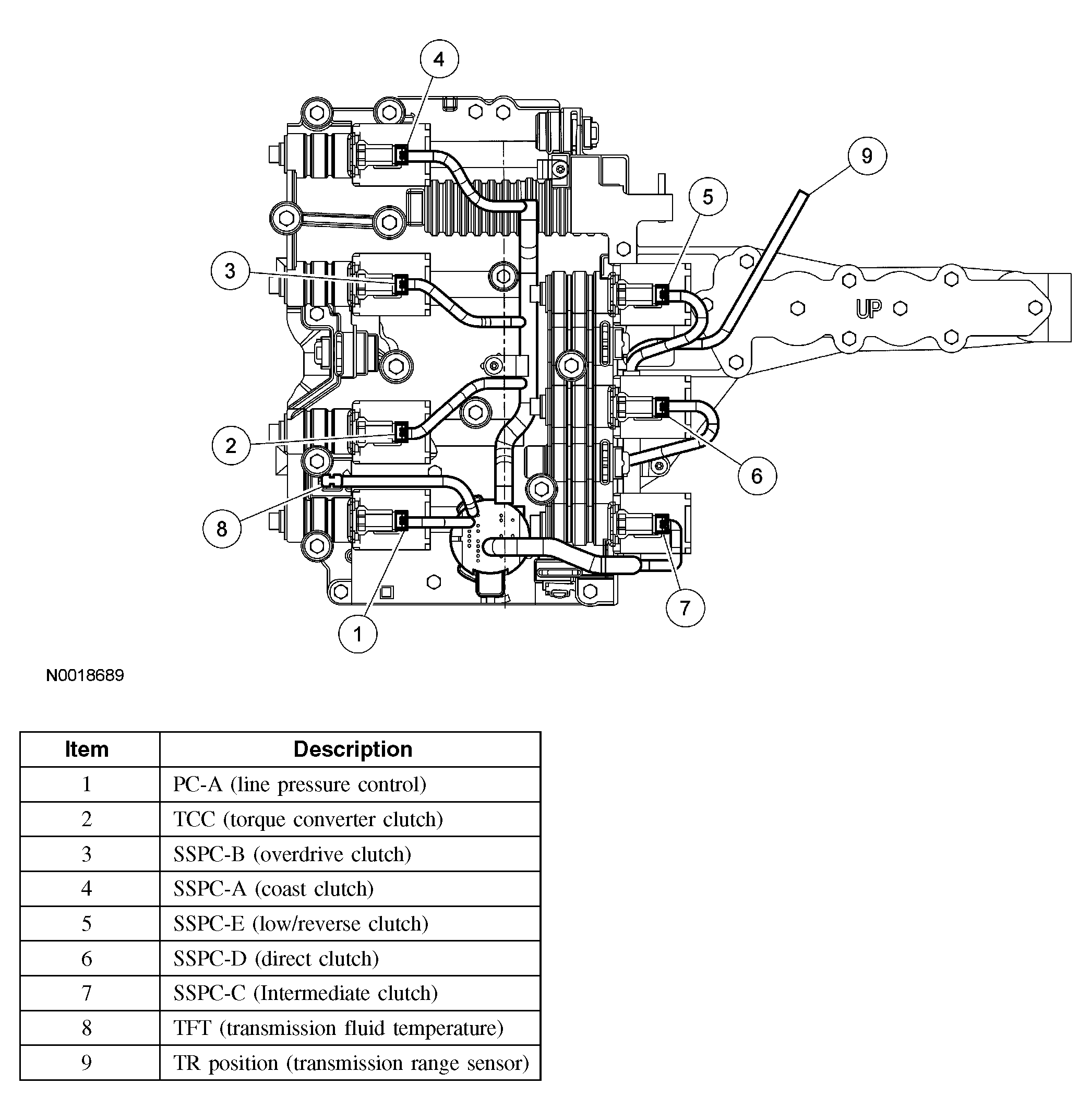

Fig 1: Locating Internal Transmission Harness Connector/Component
G03889004Courtesy of FORD MOTOR CO.

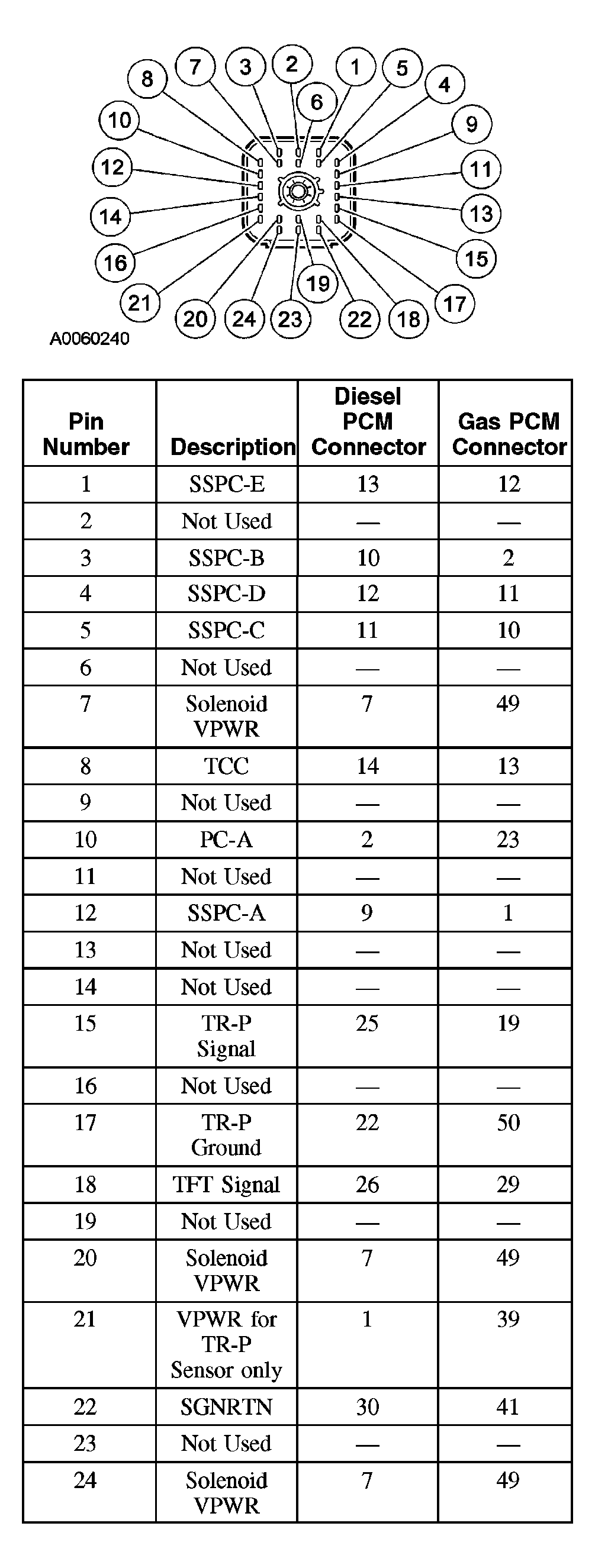

Fig 2: Identifying Transmission Vehicle Harness Connector
G03889005Courtesy of FORD MOTOR CO.

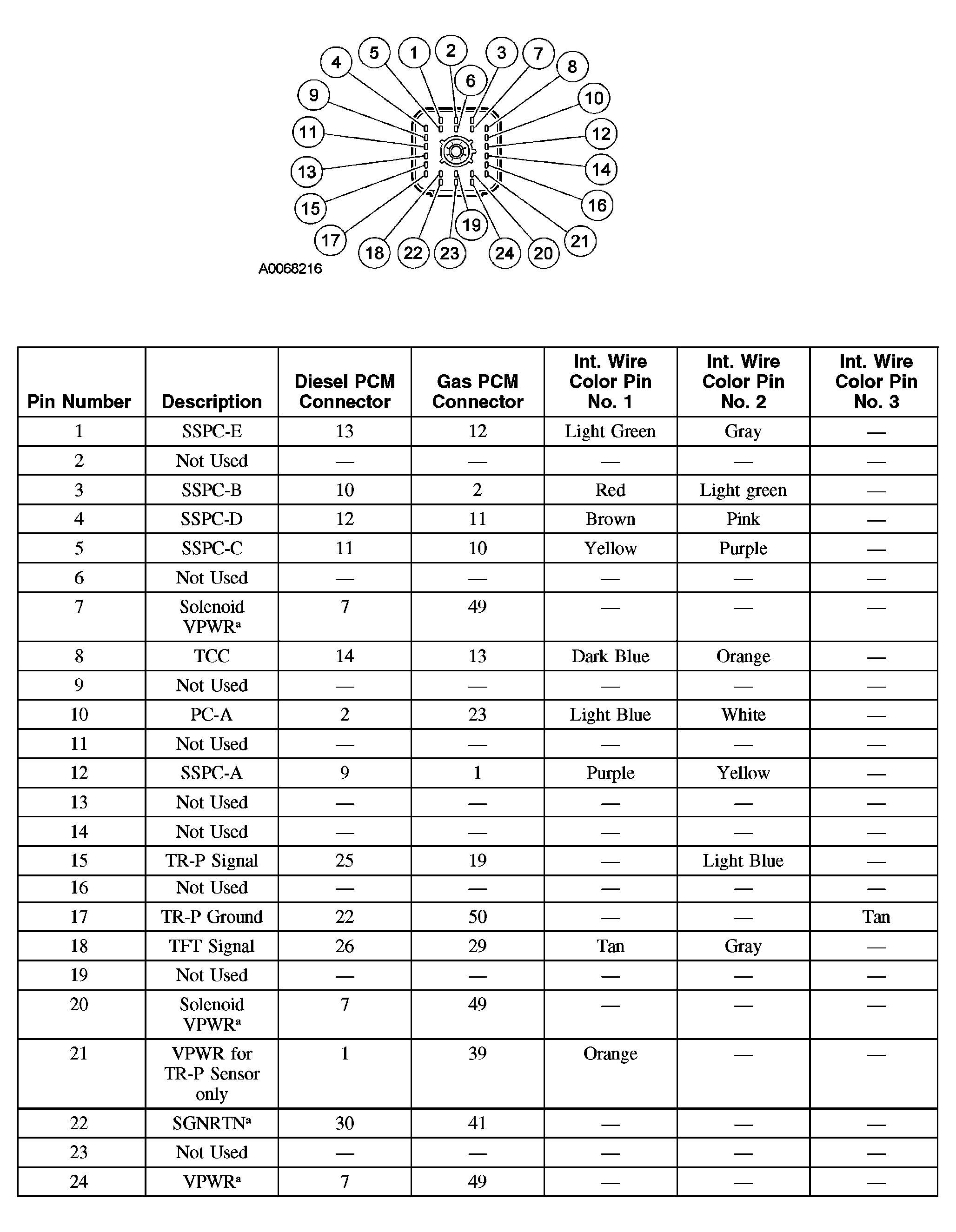

Fig 3: Identifying Transmission Internal Harness Connector
G03889006Courtesy of FORD MOTOR CO.

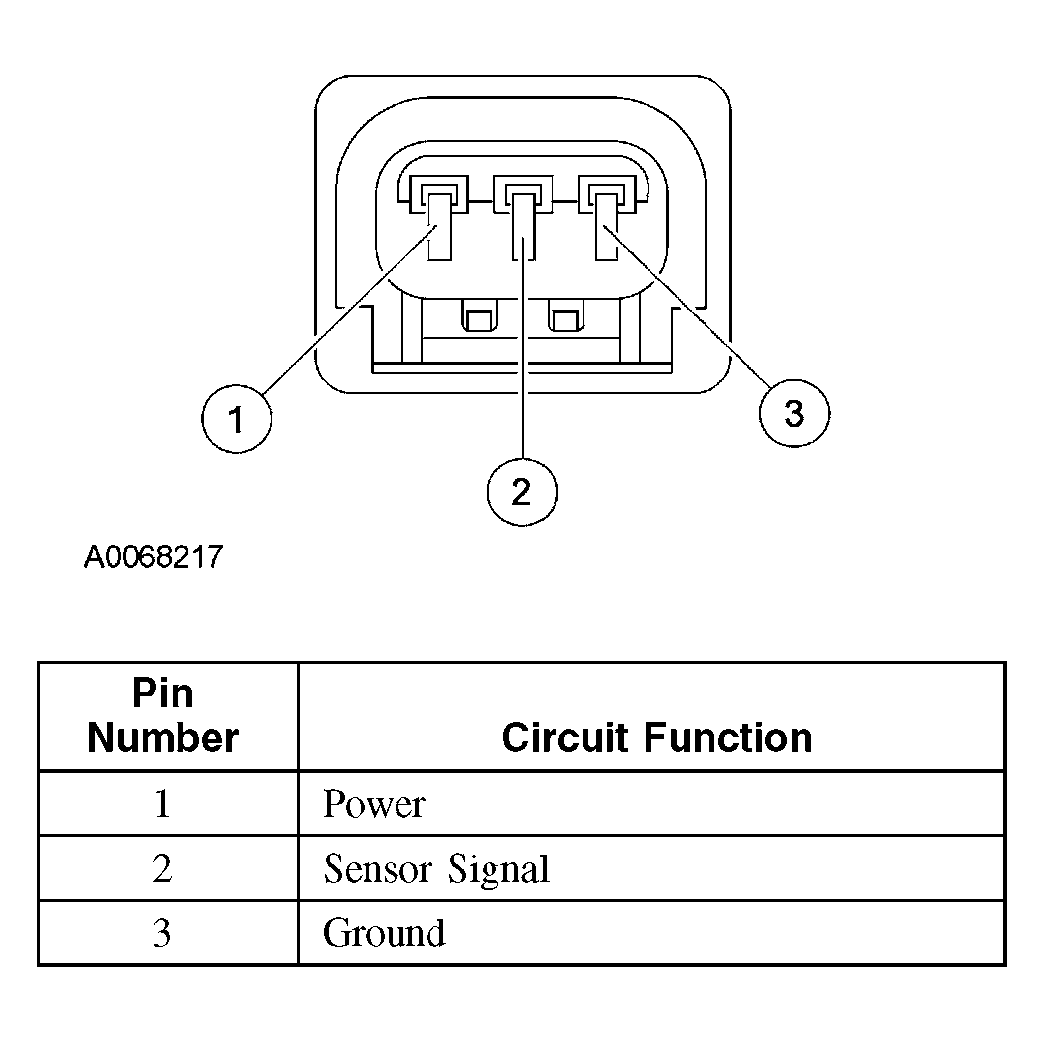

Fig 4: Identifying Internal Harness TR-P Sensor Connector - Tan (3 Pin)
G03889007Courtesy of FORD MOTOR CO.
Fig 5: Identifying Internal Harness SSPC-X Solenoid Connector - Tan (2 Pin)
G03889008Courtesy of FORD MOTOR CO.

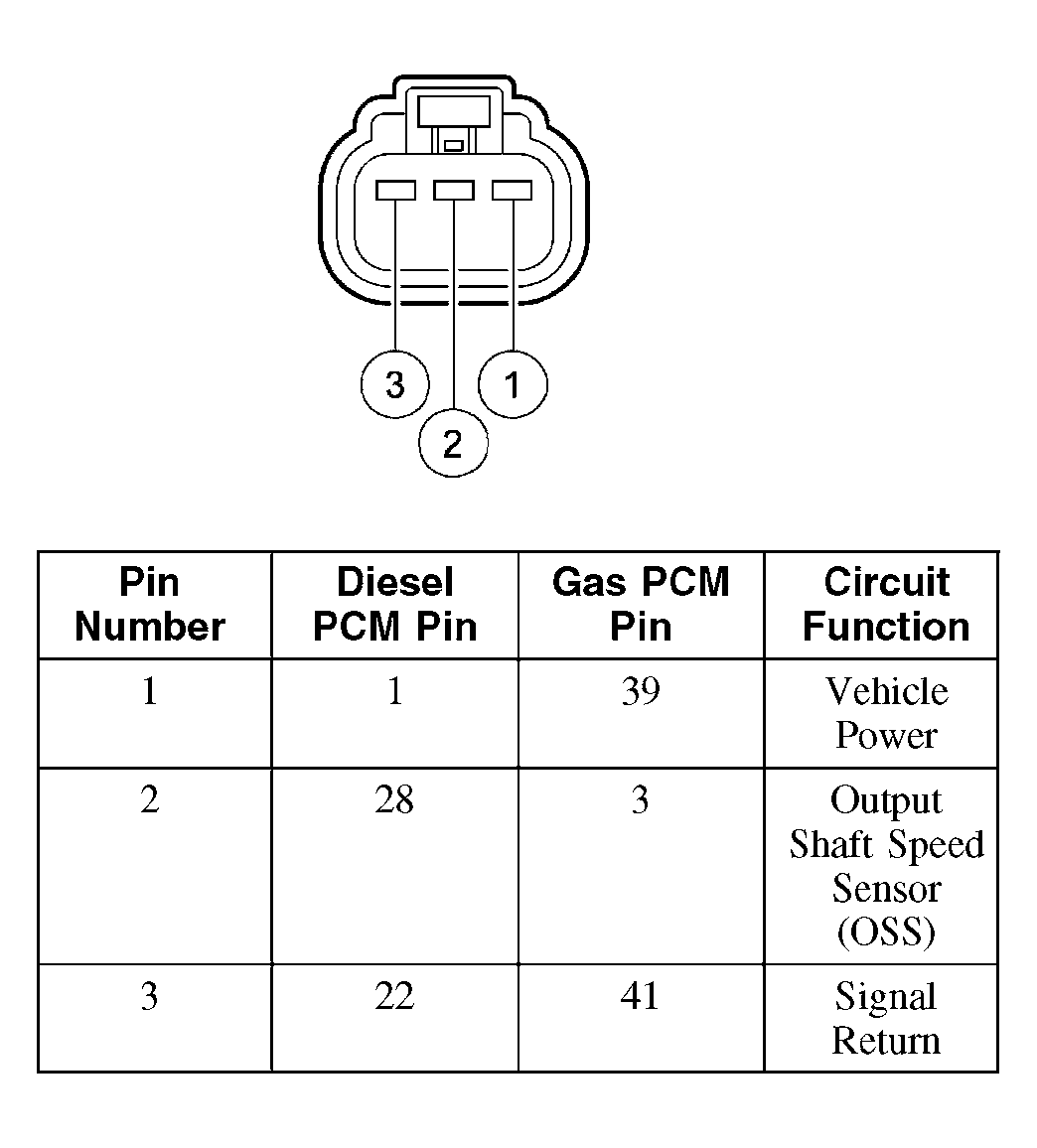

Fig 6: Identifying Output Shaft Speed (OSS) Sensor Harness Connector
G03889009Courtesy of FORD MOTOR CO.

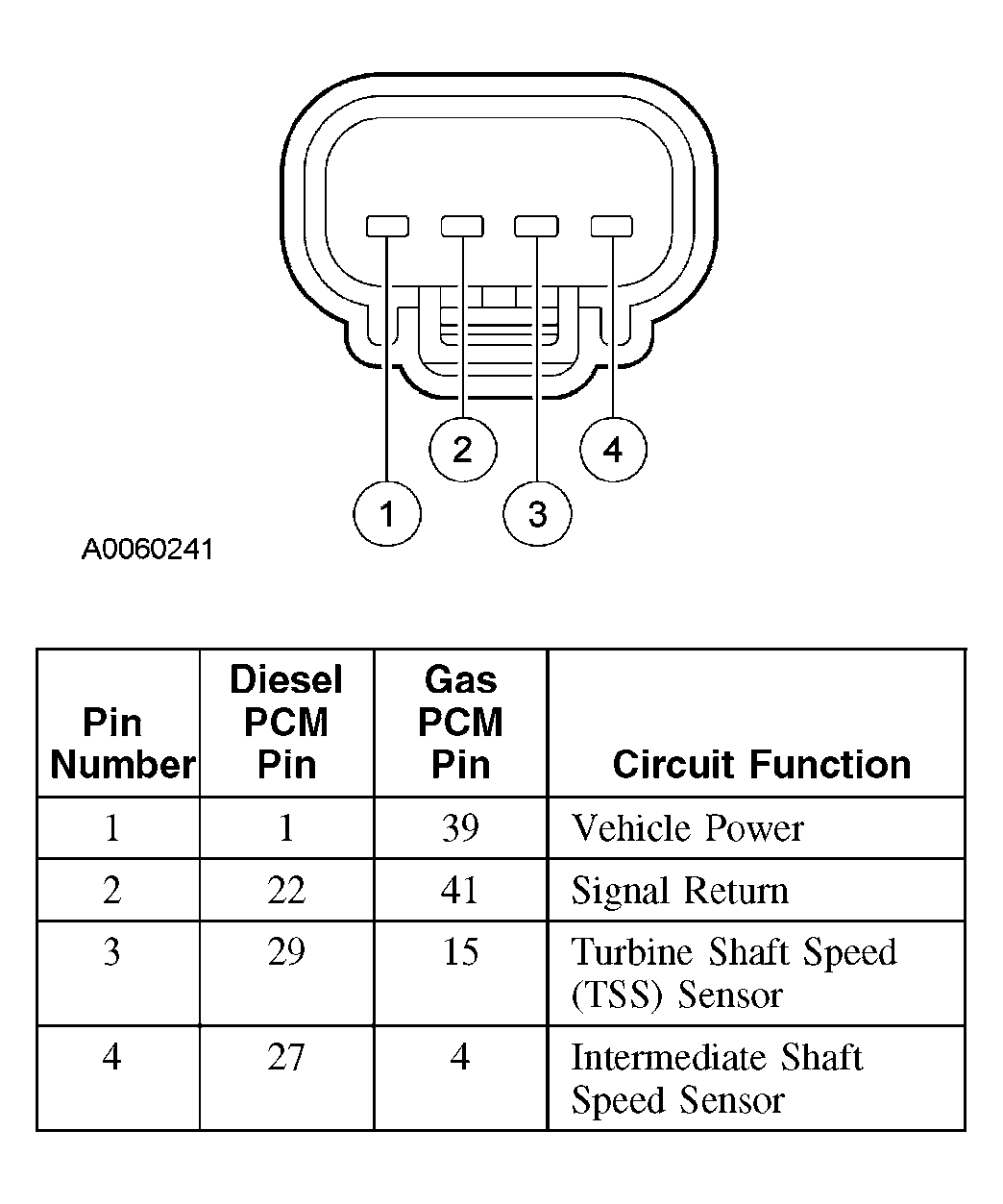

Fig 7: Identifying Intermediate Shaft Speed And Turbine Shaft Speed (TSS) Sensor Harness Connector
G03889010Courtesy of FORD MOTOR CO.

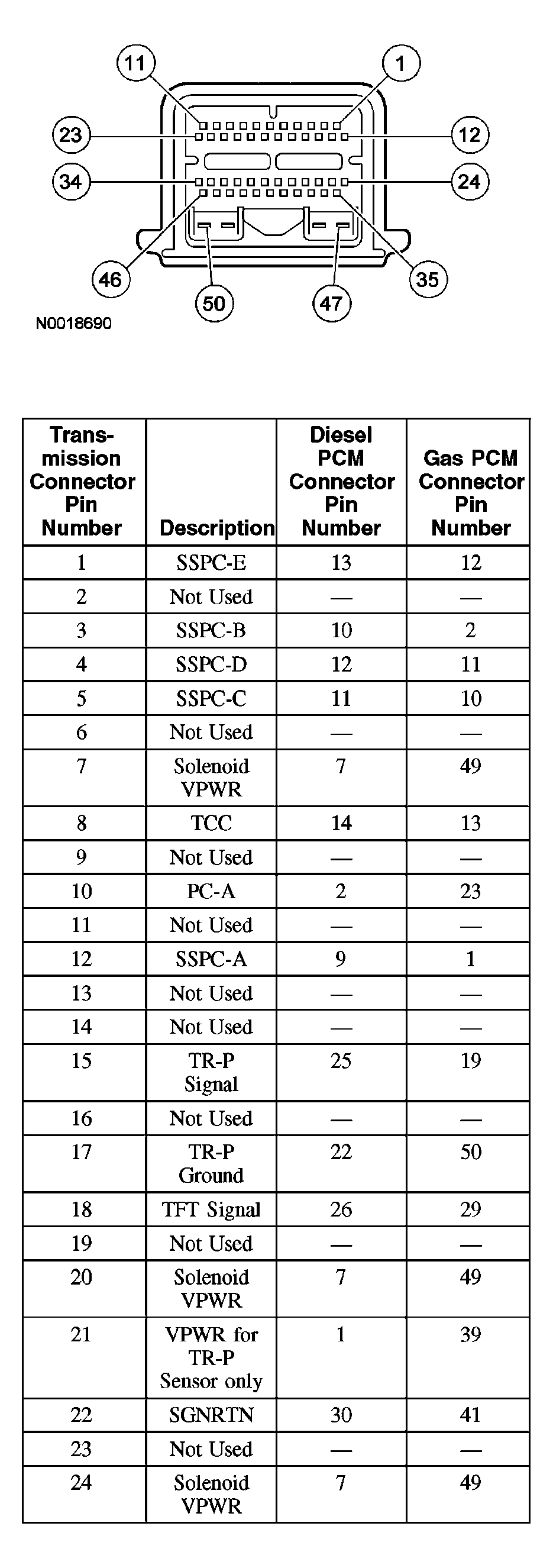

Fig 8: Identifying Transmission PCM Connector
G03889011Courtesy of FORD MOTOR CO.
