Leakage Inspection: Notes

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The transmission has the following parts to prevent external fluid leakage:

gaskets
lip-type seals
O-ring seals
seal rings
seal grommets
thread sealant
sealing washers

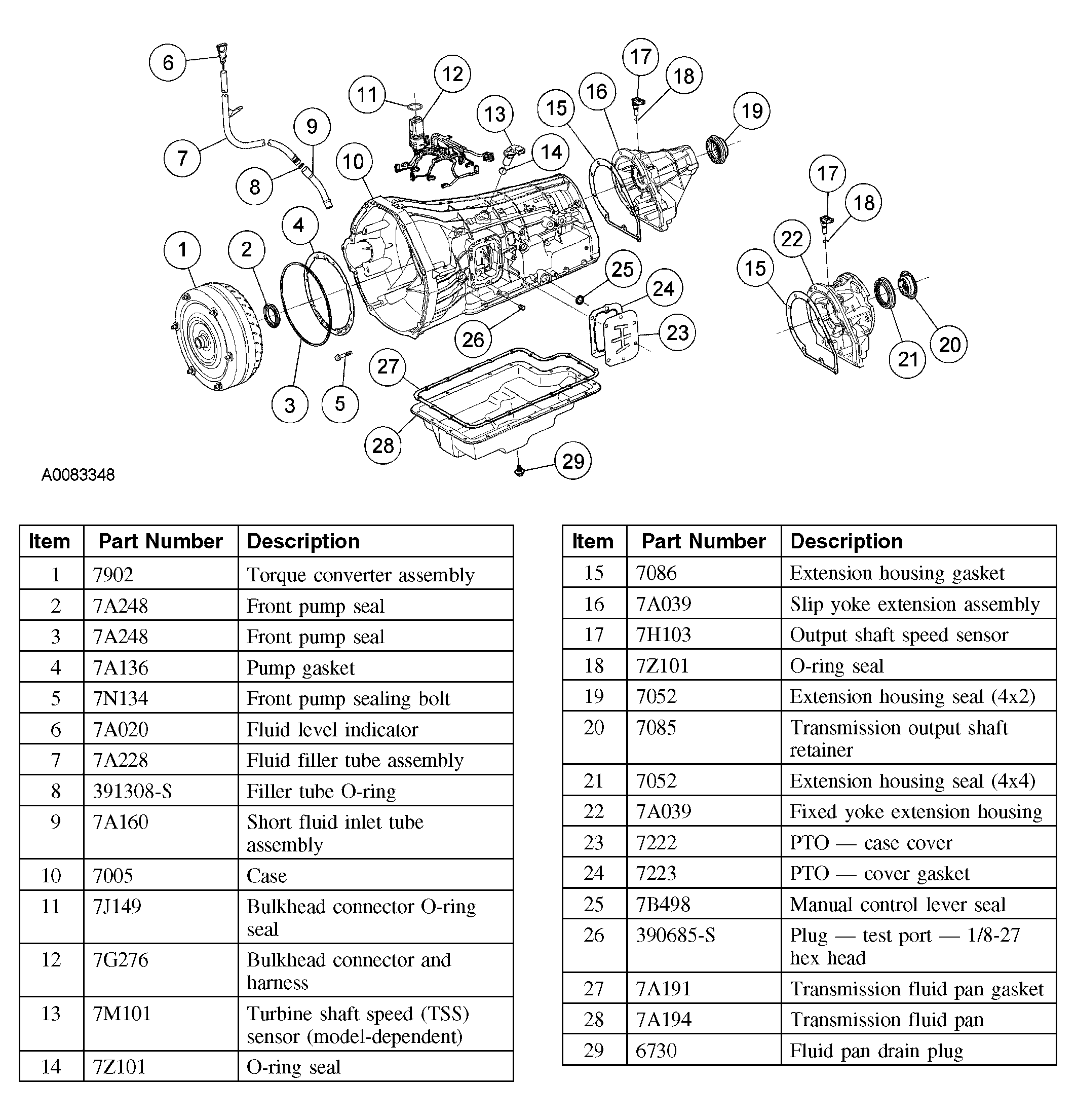

Fig 1: Identifying External Sealing

Courtesy of FORD MOTOR CO.

Leakage at the transmission pan-to-case gasket often can be stopped by tightening the retaining bolts to specification. Refer to TORQUE SPECIFICATIONS . If necessary, install a new pan-to-case gasket only if gasket is damaged.

If leakage is found by the solenoid body connector, refer to SOLENOID BODY ASSEMBLY .

When fluid is found to be leaking between the case and the cooler line fitting, tighten the fitting to maximum specification. Refer to TRANSAXLE/TRANSMISSION COOLING .

CAUTION: Do not try to stop the fluid leak by increasing the torque beyond specification. This can cause damage to the case threads and/or case fittings.

If the leak continues, install new cooler line fitting and tighten to specification. The same procedure should be followed for fluid leaks between the oil-to-air cooler transmission remote filter and the cooler line fittings.

If leakage is found at the manual control lever shaft, install a new seal.

Check for fluid leaking from the end of the extension housing. Leakage can result from a damaged seal, missing garter spring, worn extension bushing, damaged speed sensor plug, or the output shaft retainer (vehicles equipped with a fixed yoke). Install a new seal assembly, bushing, or both, as necessary.

Inspect the line pressure plug for leakage. Make sure it is tightened to specification. Refer to TORQUE SPECIFICATIONS . If tightening the plug does not stop the leak, the case threads and/or plug could be damaged. Remove the plug and inspect the plug and case thread for damage. Repair as necessary.
