Bushings, Bearing And Thrust Washer Locator

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

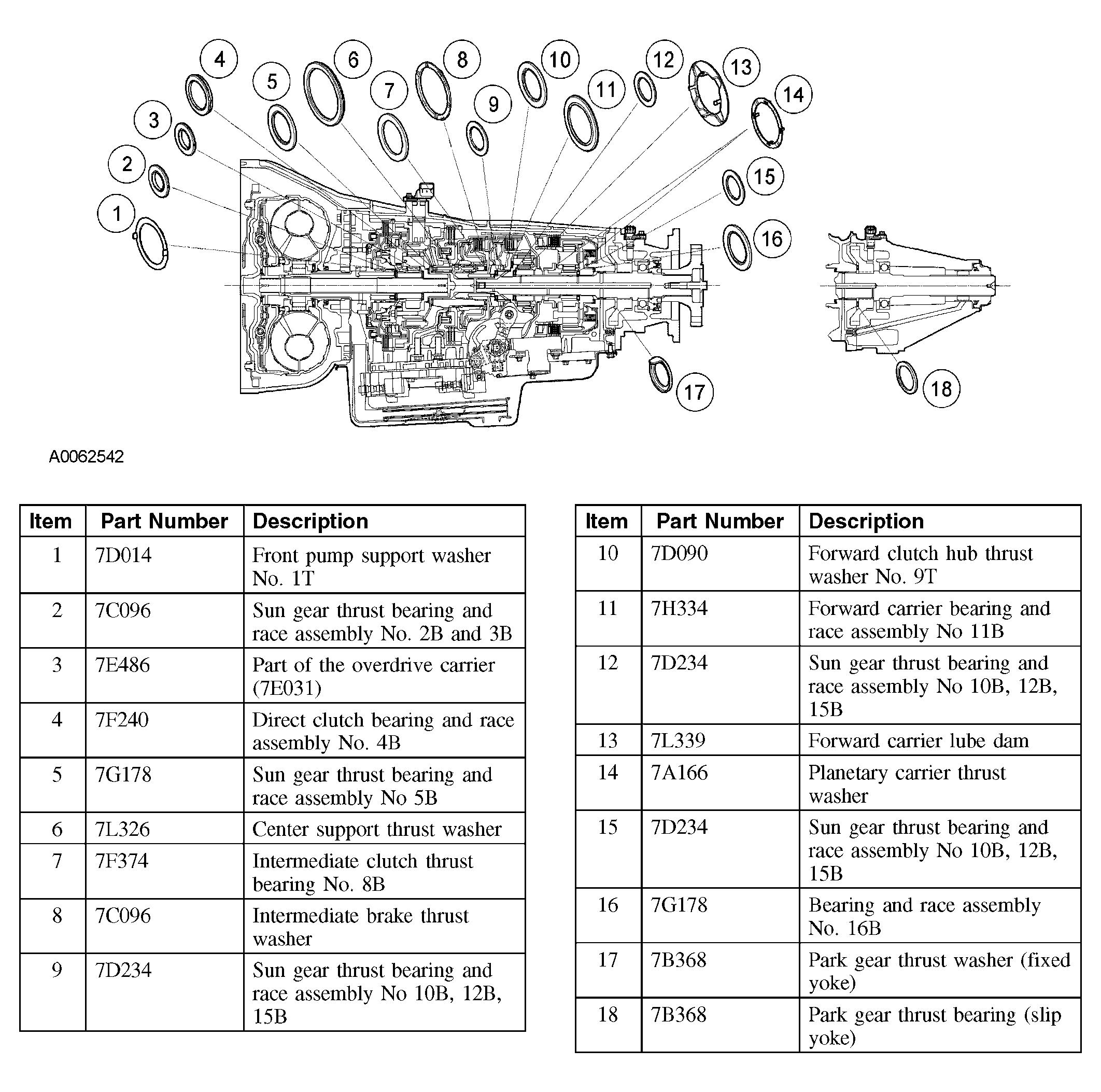

Fig 1: Locating Bushings, Bearing And Thrust Washer
G03888992Courtesy of FORD MOTOR CO.
