Section 814 (Automatic Transmission - 4R70W, 4R75W): Installation: Transmission: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All applications

  1. Inspect the wiring harness and connectors for damage, condition of terminals, corrosion and seal integrity. Repair or install new as required.

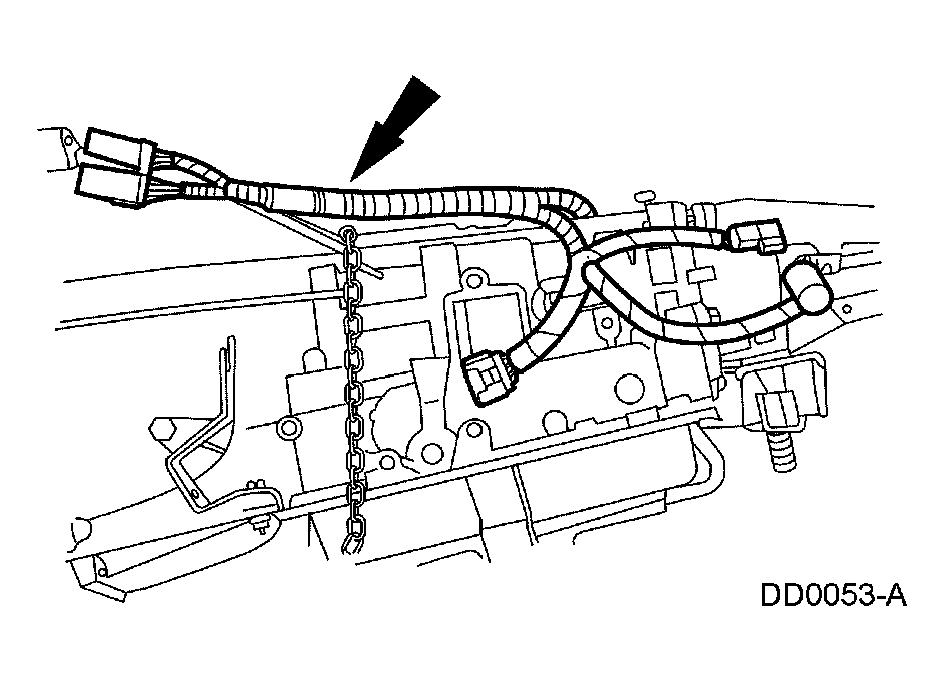

    Fig 1: Inspecting Wiring Harness And Connectors
    G03888966Courtesy of FORD MOTOR CO.
  2. Position, then raise the transmission into the vehicle.
      WARNING: The torque converter must be held firmly in its installed position.
    • While holding the torque converter, carefully tilt the front of the transmission downward.
      • CAUTION: Do not allow the torque converter drive flats to disengage from the pump gear.
    • While continuing to hold the torque converter raise the transmission downward.
      • CAUTION: Watch for obstruction.
    • While continuing to hold the torque converter raise the transmission positioning the extension housing above the exhaust crossover pipe.
      • CAUTION: Watch for clearance between the transmission and engine and the transmission and exhaust crossover pipe.

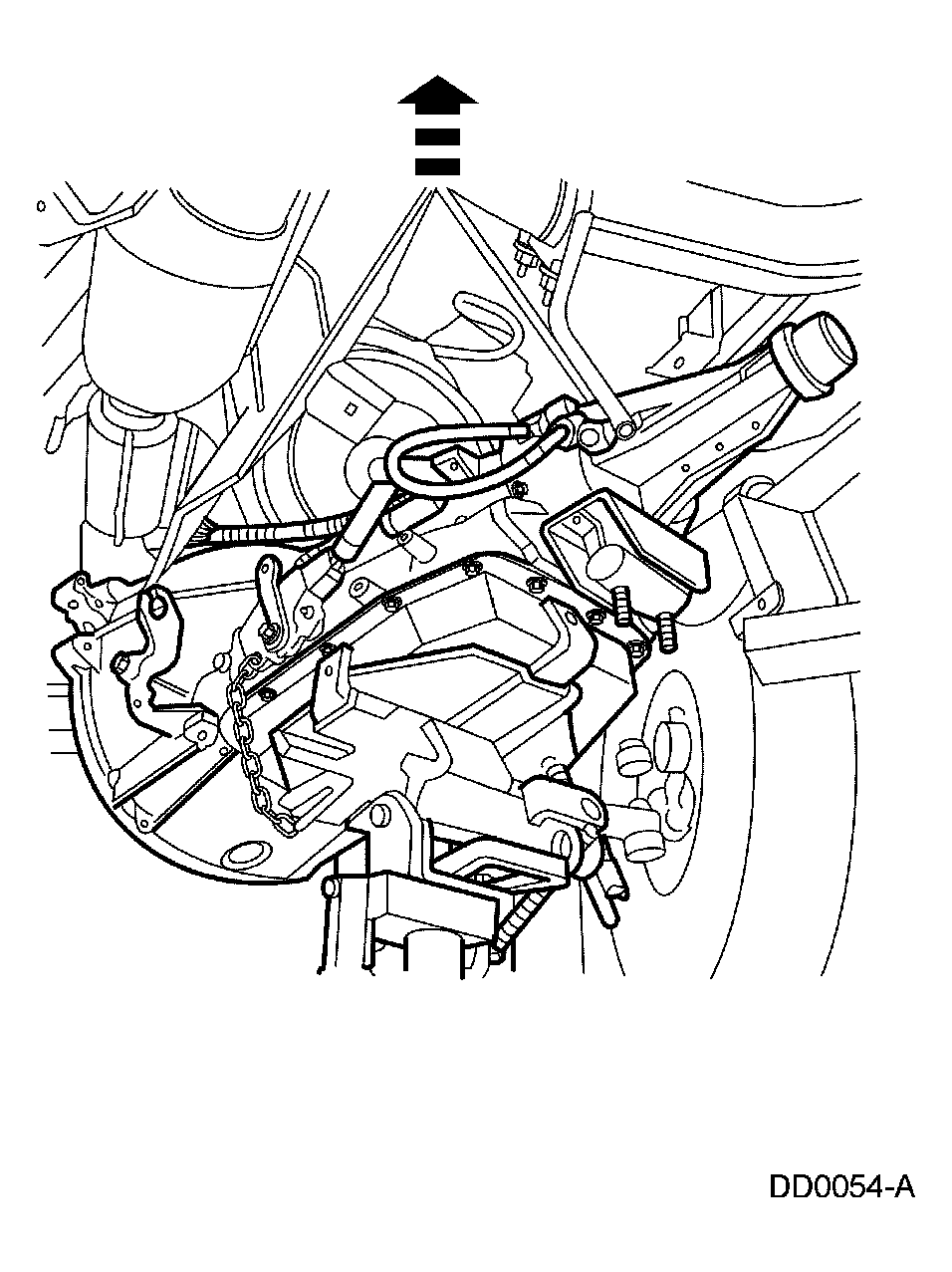

      Fig 2: Tilting Front Of Transmission Upward Until Level
      G03888967Courtesy of FORD MOTOR CO.
    • Tilt the front of the transmission upward until level.
  3. Remove the special tool.
    Fig 3: Holding Torque Converter In Place With Special Tool
    G03908389Courtesy of FORD MOTOR CO.
    4. CAUTION: Use care not to damage the flexplate and the converter pilot. The torque converter must rest squarely against the flexplate, indicating the converter pilot is not binding in the crankshaft.

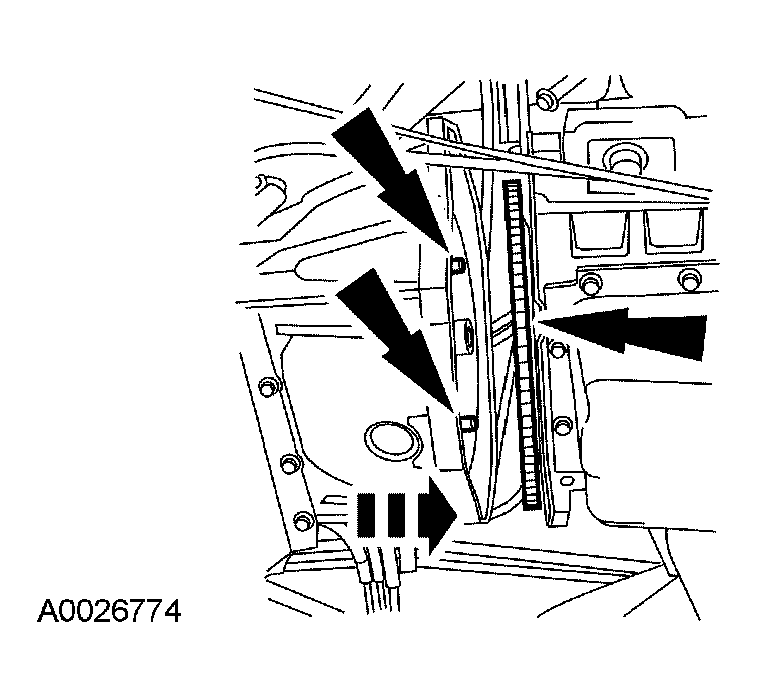

    Fig 4: Aligning Torque Converter Studs With Mounting Holes In Flexplate
    G03888969Courtesy of FORD MOTOR CO.
  4. Align the torque converter studs with the mounting holes in the flexplate. Install the transmission to the engine.

    5. 4.2L, 4.6L and 5.4L engines

  5. Install and alternately tighten the torque converter housing-to-engine retaining bolts.

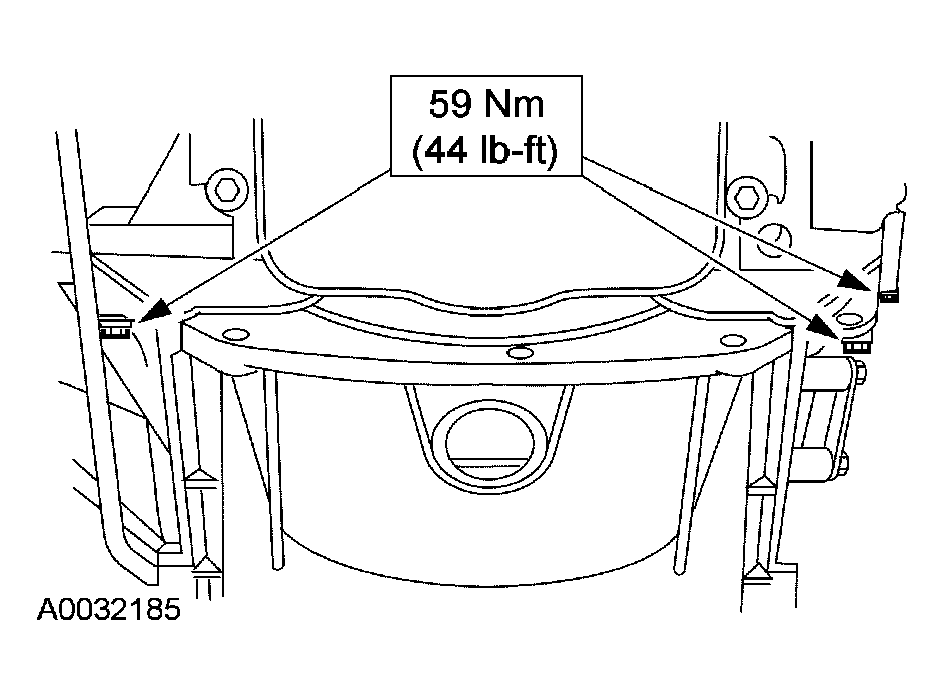

    Fig 5: Installing Alternately Tighten Torque Converter Housing-To-Engine Retaining Bolts
    G03888970Courtesy of FORD MOTOR CO.

    6. 4.2L, 4.6L and 5.4L engines

  6. Install four new torque converter nuts.
    Fig 6: Installing Four New Torque Converter Nuts
    G03888971Courtesy of FORD MOTOR CO.
  7. Install the flexplate inspection plate and the bolts. Install the rear engine plate-to-torque converter housing retaining bolt.

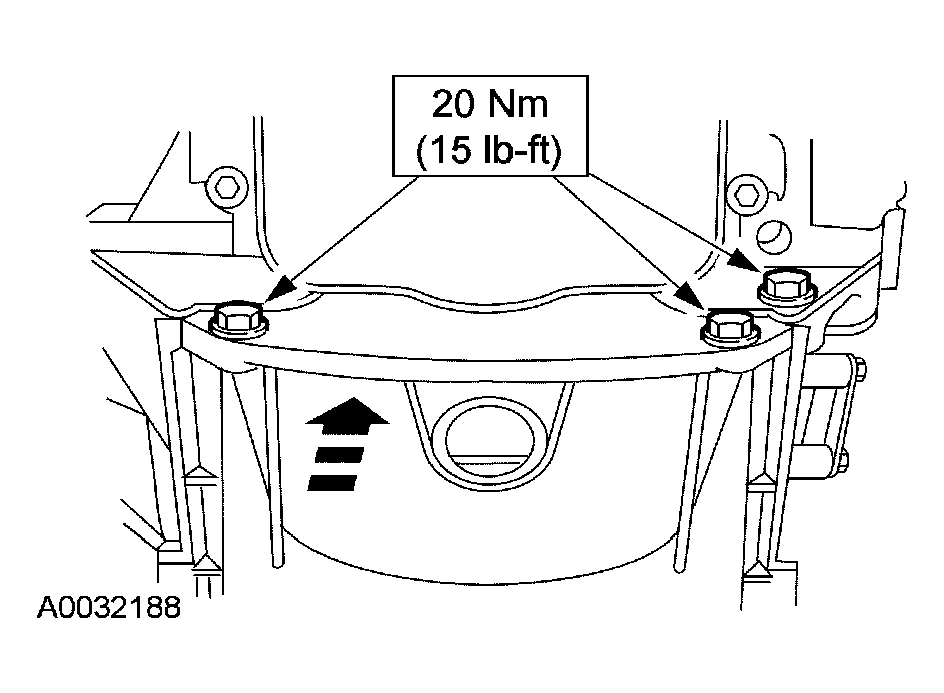

    Fig 7: Installing Flexplate Inspection Plate And Bolts
    G03888972Courtesy of FORD MOTOR CO.

    8. 4.2L, 4.6L and 5.4L engines

  8. Install the access plugs.
    Fig 8: Installing Access Plugs
    G03888677Courtesy of FORD MOTOR CO.

    9. All applications

  9. Connect the electrical connectors and install the wire harness on the transmission.
    1. Connect the digital TR sensor electrical connector.
    2. Connect the OSS sensor electrical connector.
    3. Install the TSS sensor electrical connector.
      Fig 9: Identifying Transmission Electrical Connectors
      G03882612Courtesy of FORD MOTOR CO.
  10. Connect the solenoid body connector.

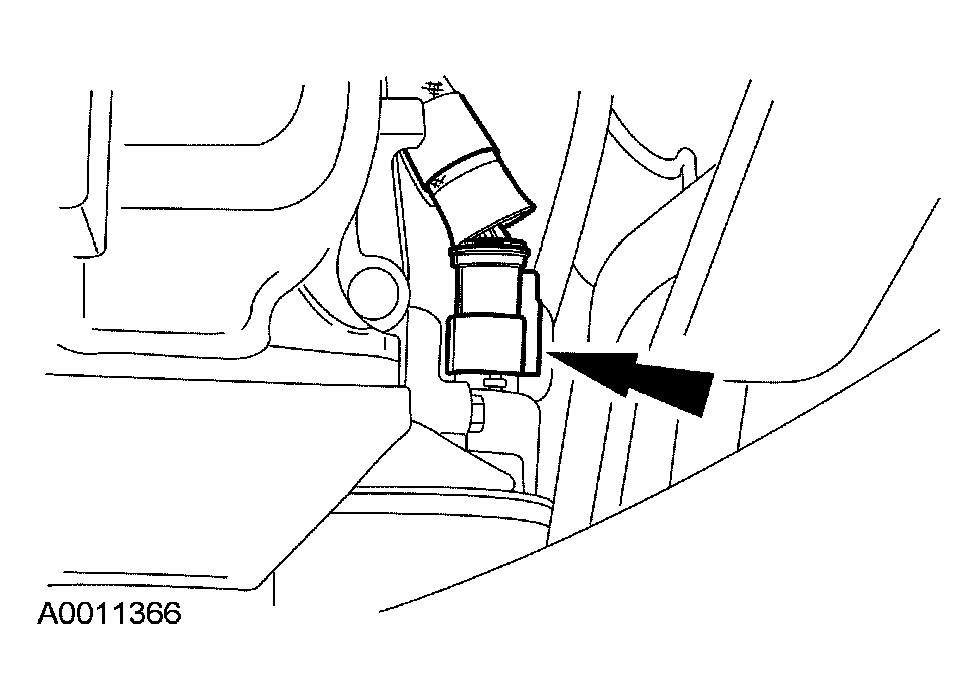

    Fig 10: Connecting Solenoid Body Connector
    G03888689Courtesy of FORD MOTOR CO.
  11. If so equipped, install the front A/C deflector assembly with the fasteners.
    Fig 11: Installing Front A/C Deflector Assembly With Fasteners
    G03884781Courtesy of FORD MOTOR CO.

    12. 4.2L and 4.6L engines

  12. Install the bracket onto the hanger and position it to the transmission insulator and retainer. Install the bolt.

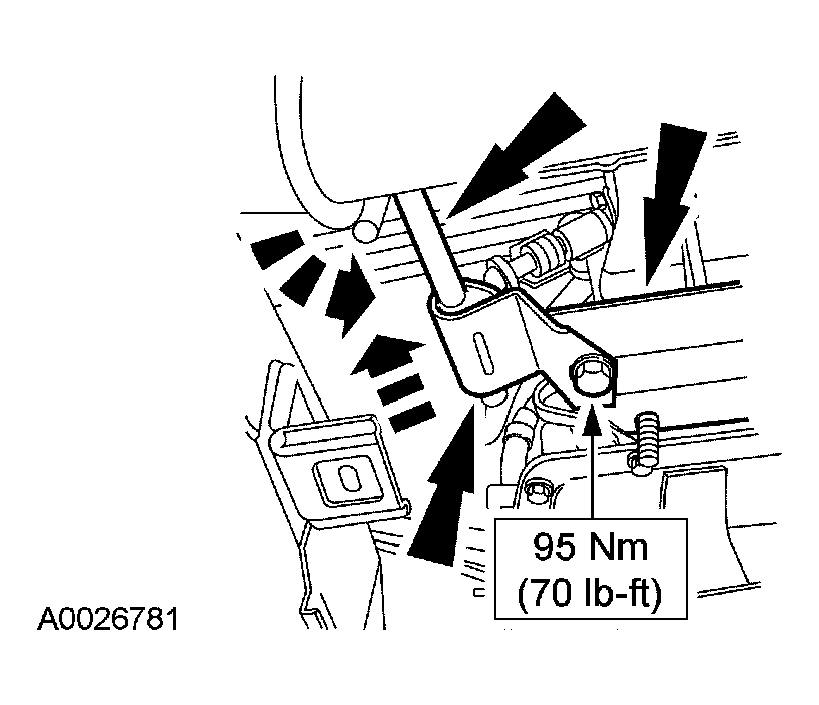

    Fig 12: Installing Bracket Onto Hanger
    G03888977Courtesy of FORD MOTOR CO.

    13. All applications

  13. Install the transmission support crossmember.
    1. Install the transmission support crossmember onto the retainer and insulator studs. Install the retaining nuts hand-tight.
    2. Raise the transmission, aligning the transmission support crossmember to the frame.
    3. Install the stud brackets and the retaining nuts.
    4. Tighten the retainer and insulator-to-crossmember retaining nuts.

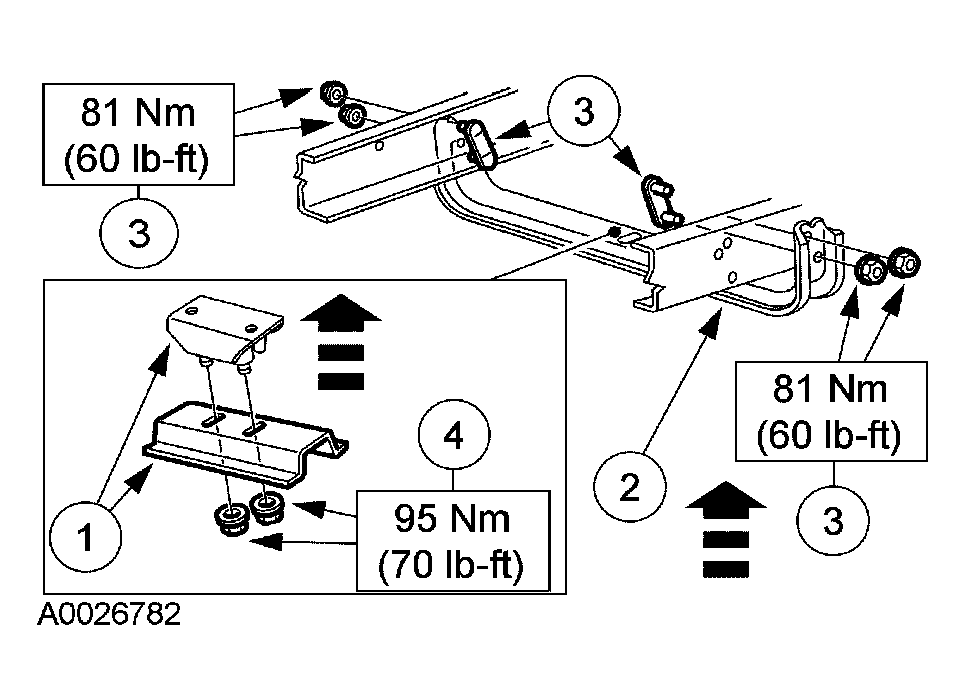

      Fig 13: Installing Stud Brackets And Retaining Nuts
      G03888978Courtesy of FORD MOTOR CO.
  14. Remove the high-lift transmission jack.

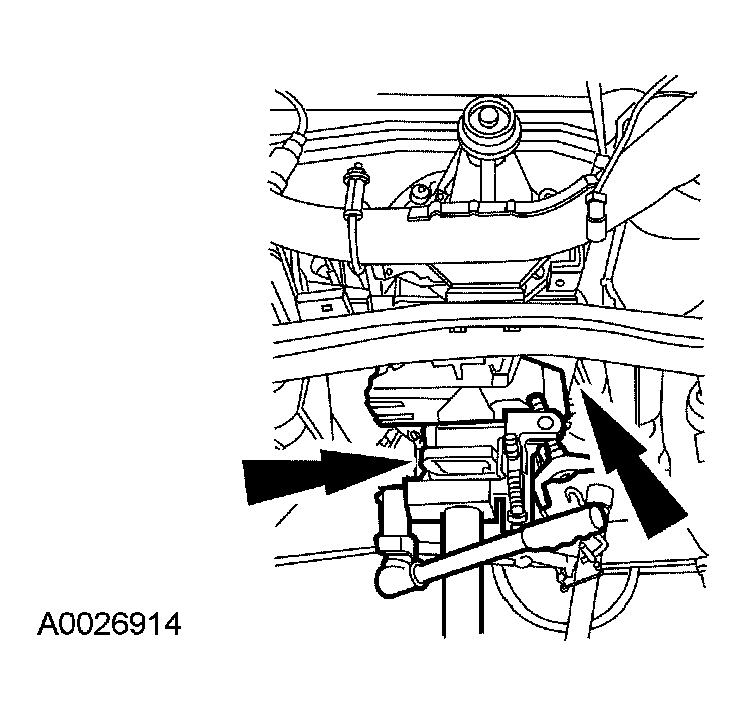

    Fig 14: Removing High-Lift Transmission Jack
    G03888979Courtesy of FORD MOTOR CO.

    15. 4.2L and 4.6L engines

  15. Connect the catalyst monitoring sensor harness connectors.

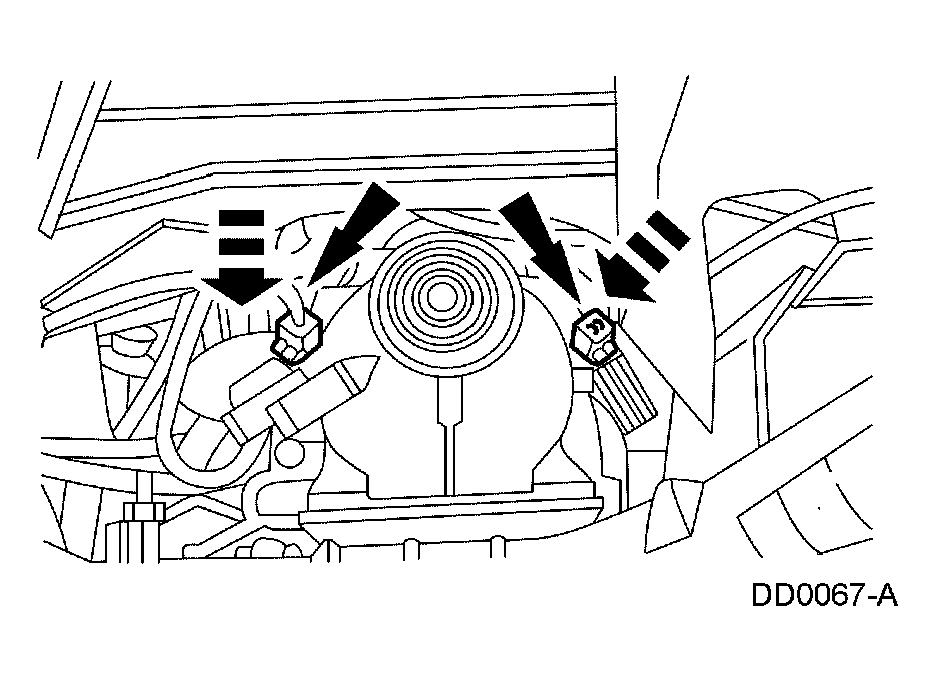

    Fig 15: Connecting Catalyst Monitoring Sensor Harness Connectors
    G03888980Courtesy of FORD MOTOR CO.
  16. Tighten the clamp.

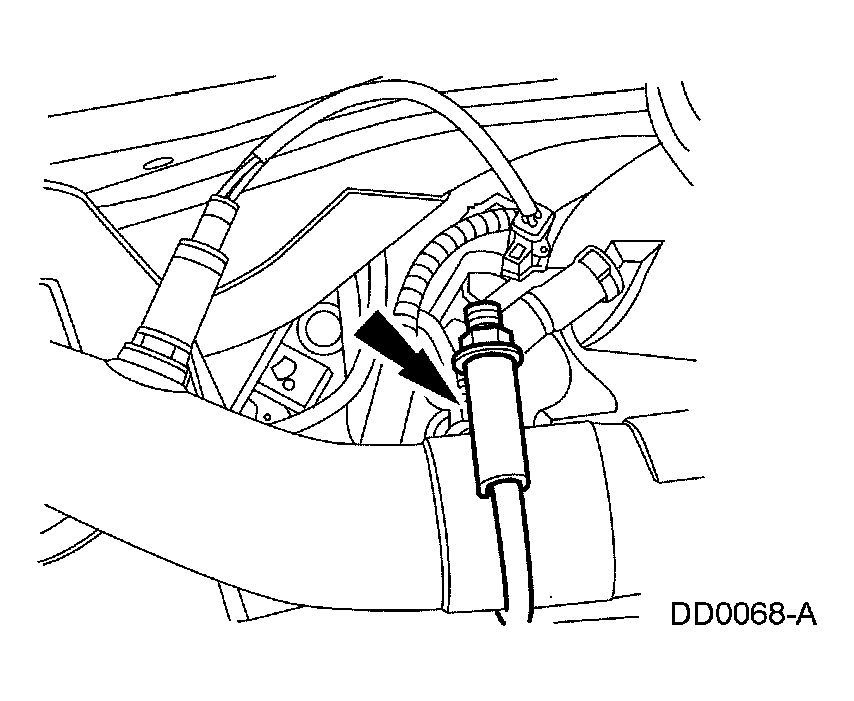

    Fig 16: Tightening Clamp
    G03888981Courtesy of FORD MOTOR CO.

    17. All applications

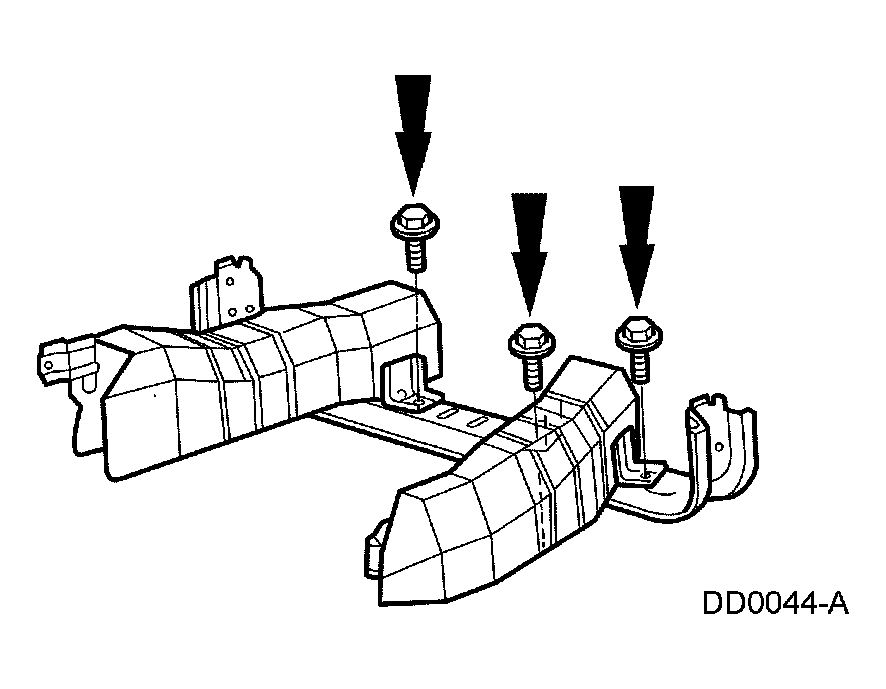

  17. Install the exhaust heat shield-to-crossmember retaining bolts.
    Fig 17: Installing Exhaust Heat Shield-To-Crossmember Retaining Bolts
    G03888681Courtesy of FORD MOTOR CO.

    18. All applications

  18. Install the starter motor. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES for E-series, or STARTING SYSTEM -- F150 PICKUP .
    19. NOTE: The output shaft and the driveshaft are a balanced assembly.
  19. Install the driveshaft.
    • Align the index marks and position the driveshaft on the transmission.
    • Position the driveshaft to the rear differential.
      Fig 18: Positioning Driveshaft To Rear Differential
      G03888592Courtesy of FORD MOTOR CO.
    20. NOTE: To maintain initial driveshaft balance, align the index marks made during removal.
  20. Install the driveshaft.
    1. Install the driveshaft.
    2. Install the bolts.

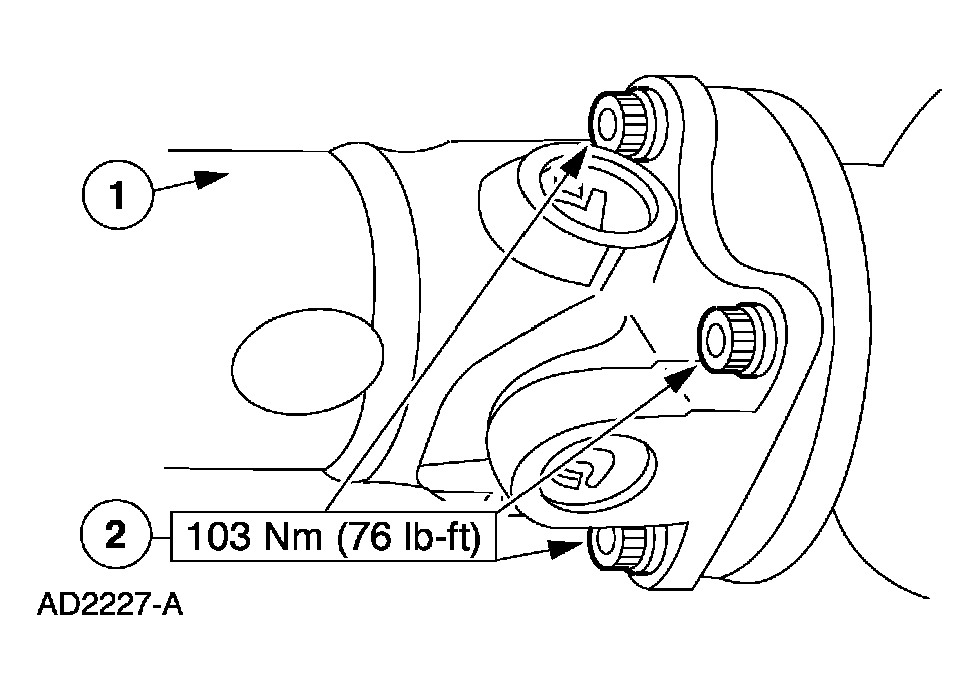

      Fig 19: Installing Bolts
      G03930134Courtesy of FORD MOTOR CO.

    21. 4.2L, 4.6L and 5.4L engines

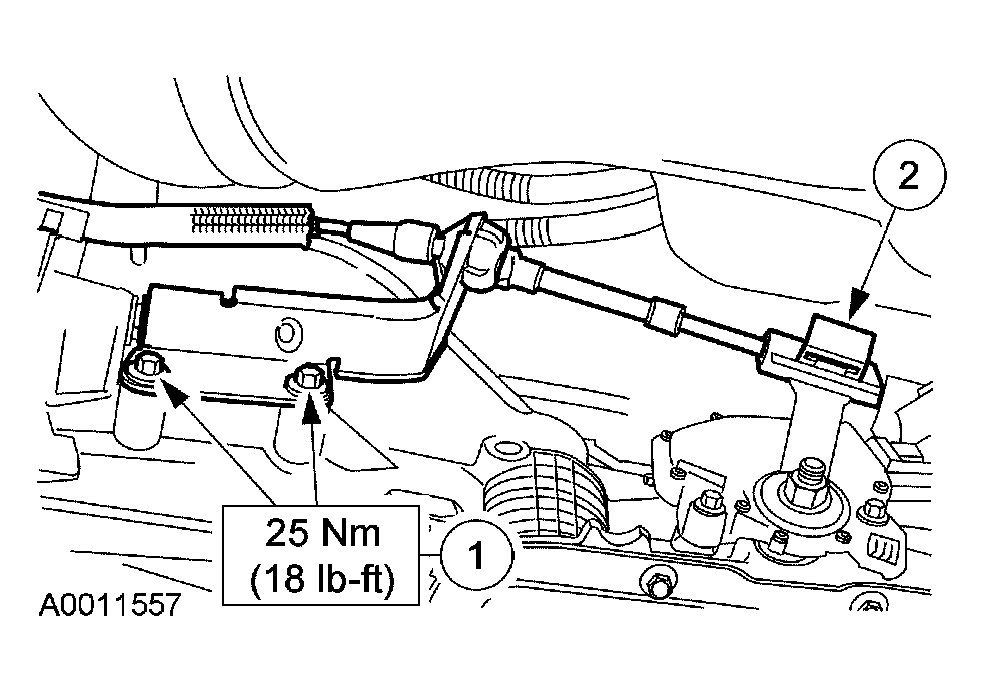

  21. Install the shift cable and bracket.
    1. Install the bolts.
    2. Connect the clip.
      Fig 20: Installing Bolts
      G03886113Courtesy of FORD MOTOR CO.

    22. 4.2L, 4.6L and 5.4L engines

    NOTE: Prior to installation, check the condition of the transmission fluid filler tube O-ring. If damaged, install a new O-ring.

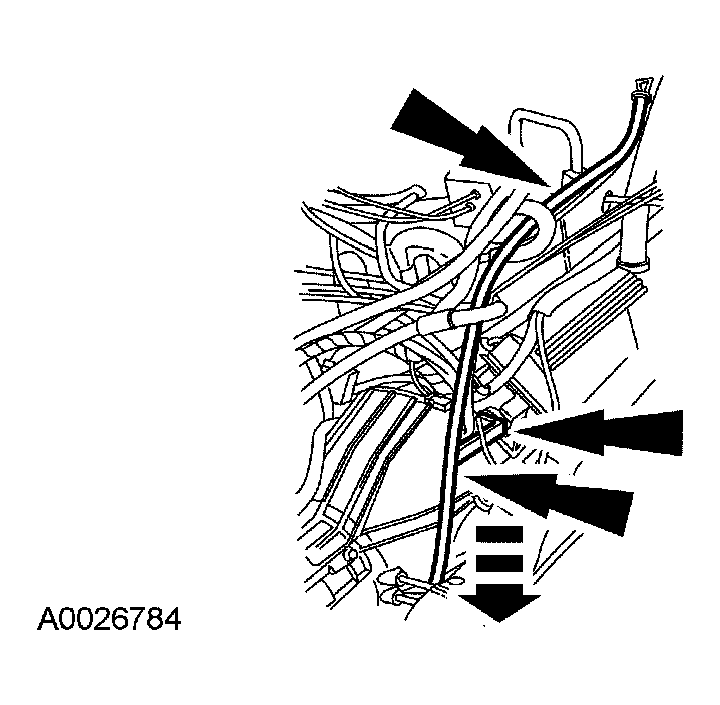

    Fig 21: Installing Fluid Filler Tube Into Transmission
    G03888986Courtesy of FORD MOTOR CO.
  22. Install the fluid filler tube into the transmission. Position the retaining brackets. Install the bolt and nut.

    23. All applications

  23. With a drain pan correctly positioned, remove the plugs and connect the fluid cooler tubes.

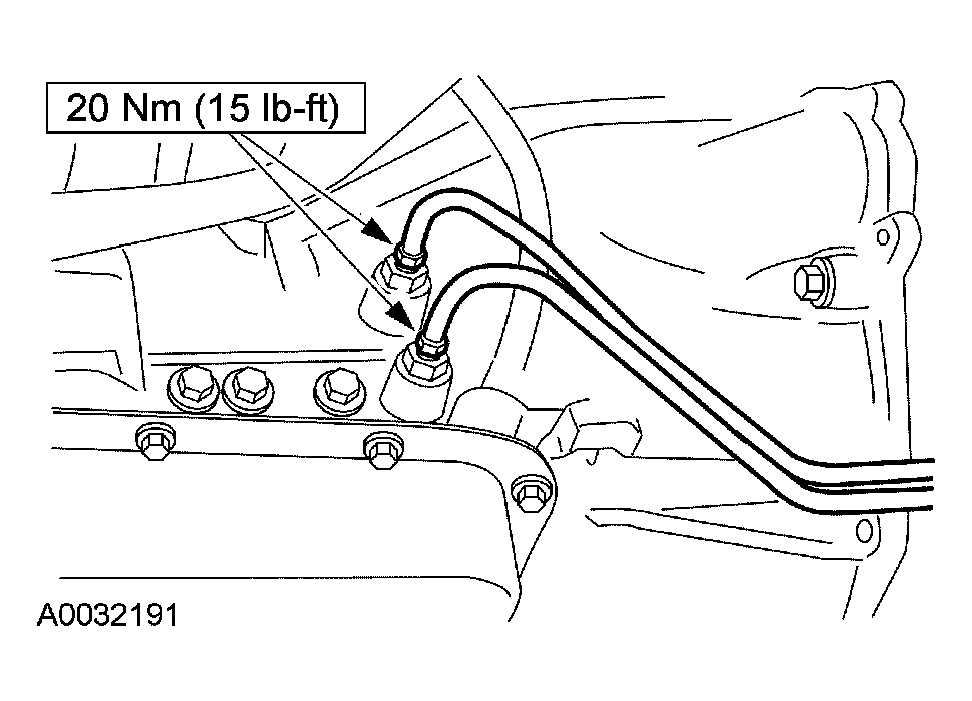

    Fig 22: Connecting Fluid Cooler Tubes
    G03888987Courtesy of FORD MOTOR CO.

    24. 4.2L, 4.6L and 5.4L engines

  24. Install the bolts and position fuel line in place.

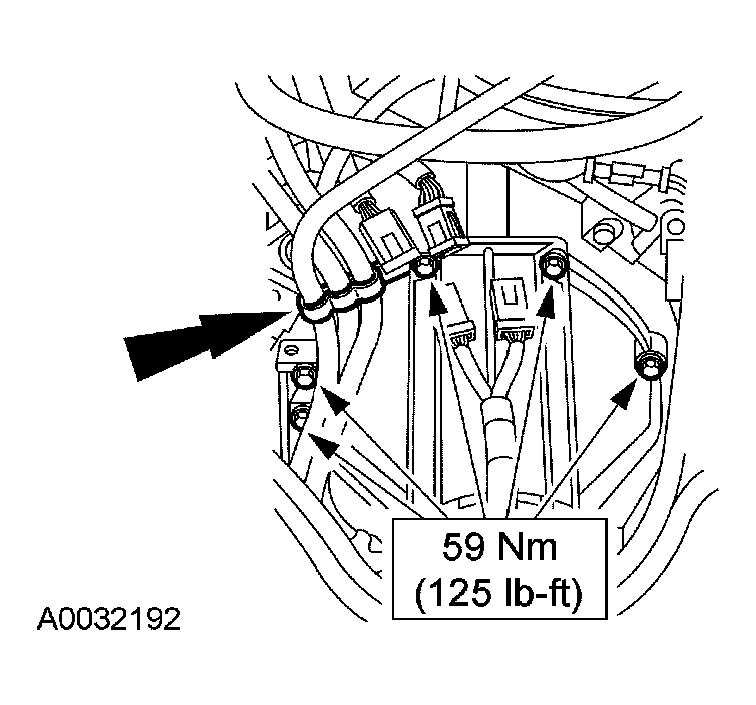

    Fig 23: Installing Bolts And Positioning Fuel Line
    G03888988Courtesy of FORD MOTOR CO.

    25. All applications

  25. Connect the electrical harness connectors.

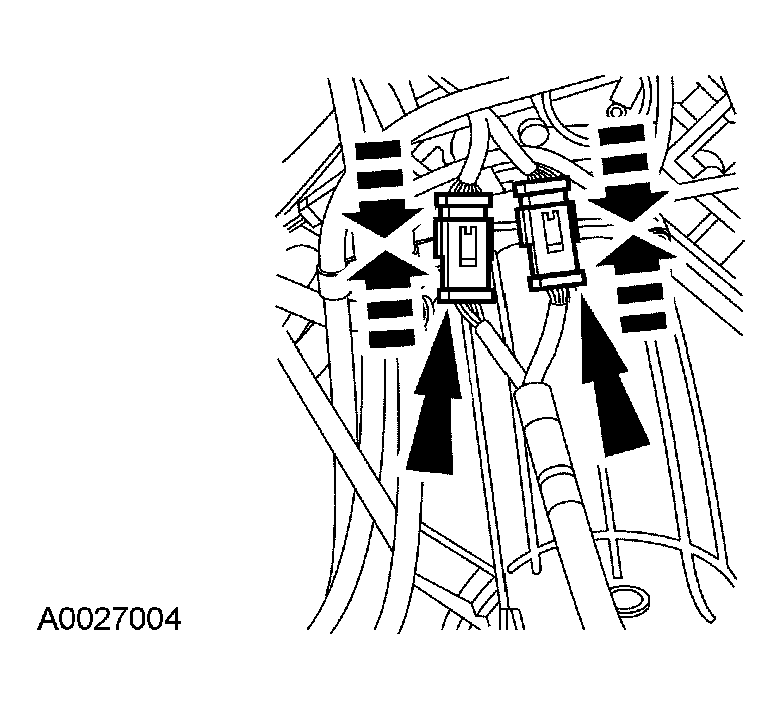

    Fig 24: Connecting Electrical Harness Connectors
    G03888989Courtesy of FORD MOTOR CO.
  26. Use the following guidelines for the in-line transmission fluid filter:
    • If the transmission was overhauled and the vehicle was equipped with an in-line fluid filter, install a new in-line fluid filter.
    • If the transmission was overhauled and the vehicle was not equipped with an in-line fluid filter, install a new in-line fluid filter kit.
    • If the transmission is being installed for a non-internal repair, do not install an in-line filter or filter kit.
    • If installing a new or a Ford authorized remanufactured transmission, install the in-line transmission fluid filter that is supplied.

      Prior to lowering the vehicle, install a new in-line transmission filter or a filter kit. For additional information, refer to TRANSMISSION FLUID IN-LINE FILTER .

  27. Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION for E-series, or INTERIOR TRIM AND ORNAMENTATION -- F150 PICKUP .
  28. Install the air cleaner air intake duct assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING for E-series, or INTAKE AIR DISTRIBUTION SYSTEM & FILTERING SYSTEM -- F150 PICKUP .
    29. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
  29. Connect the battery ground cable.
  30. Fill the transmission to the specified level with clean automatic transmission fluid.
