Overdrive Servo: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the overdrive servo piston assembly.
    1. Install the overdrive servo piston return spring.
    2. Install the overdrive servo piston assembly.

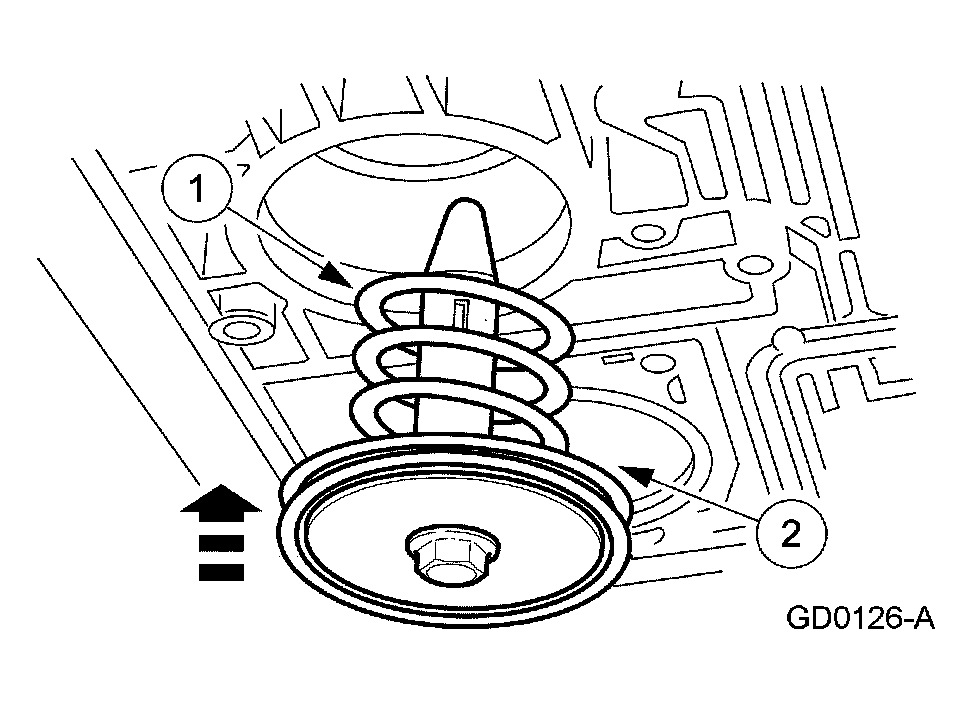

      Fig 1: Installing Overdrive Servo Piston Return Spring
      G03888649Courtesy of FORD MOTOR CO.
  2. Use the special tool to install the overdrive servo piston retaining ring.

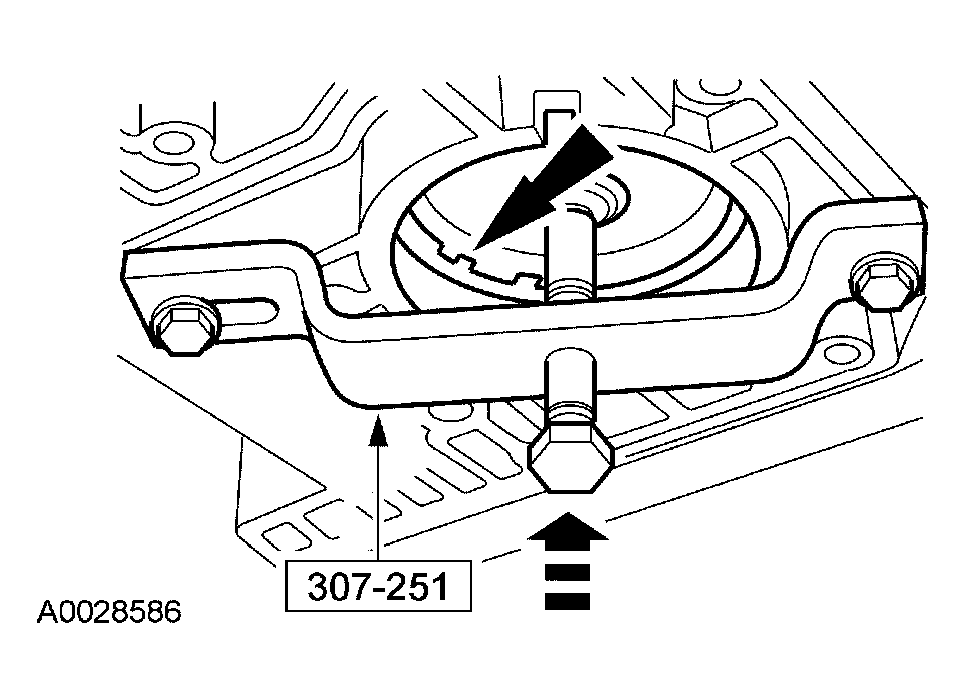

    Fig 2: Installing/Removing Overdrive Servo Piston Retaining Ring Using Special Tool
    G03929774Courtesy of FORD MOTOR CO.
  3. Install the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
