Manual Control Lever Shaft And Seal: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the manual control lever seal.
    Fig 1: Installing Manual Control Lever Seal
    G03888612Courtesy of FORD MOTOR CO.
  2. Install the parking lever actuating rod.
    1. Install the parking lever actuating rod.
    2. Install the manual valve detent lever.

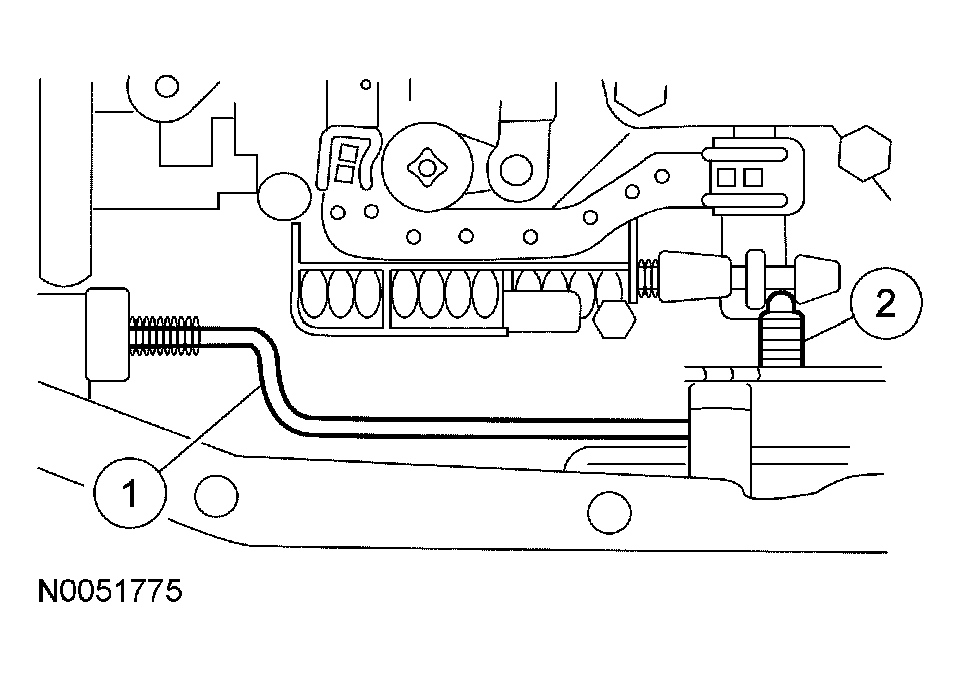

      Fig 2: Installing Parking Lever Actuating Rod
      G03888613Courtesy of FORD MOTOR CO.
  3. Install the manual valve detent lever spring.
    1. Install the manual valve detent lever spring.
    2. Install the manual valve detent lever spring bolt.
      Fig 3: Identifying Manual Valve Detent Lever Spring
      G03929677Courtesy of FORD MOTOR CO.
  4. Install the digital TR sensor.
    1. Install the digital TR sensor.
    2. Loosely install the bolts.
      Fig 4: Installing Digital TR Sensor And Bolts
      G03888615Courtesy of FORD MOTOR CO.
    5. NOTE: The manual lever must be in the NEUTRAL position.
    Fig 5: Aligning Digital TR Sensor Slots Using Special Tool
    G03888628Courtesy of FORD MOTOR CO.
  5. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.
    6. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
    Fig 6: Digital TR Sensor Bolts - With Torque Specifications
    G03929639Courtesy of FORD MOTOR CO.
  6. Tighten the digital TR sensor bolts.
  7. Install the manual control lever.
    1. Position the manual control lever.
    2. Install a new manual control lever nut.
      Fig 7: Identifying Manual Control Lever
      G03888530Courtesy of FORD MOTOR CO.
  8. Connect the shift cable end to the manual lever with the lever in the (D) position.
    Fig 8: Identifying Manual Control Lever Shift Cable End
    G03888604Courtesy of FORD MOTOR CO.
  9. Install the digital TR sensor electrical connector.
  10. Position the pan magnet into the transmission fluid pan.
    Fig 9: Locating Pan Magnet In Transmission Fluid Pan
    G03888537Courtesy of FORD MOTOR CO.
    11. NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.
  11. Install the transmission fluid pan and gasket.
    1. Position the transmission fluid pan gasket.
    2. Position the transmission fluid pan.
      Fig 10: Positioning Transmission Fluid Pan Gasket
      G03882578Courtesy of FORD MOTOR CO.
  12. Install the transmission fluid pan bolts.
    Fig 11: Installing Transmission Fluid Pan Bolts
    G03888622Courtesy of FORD MOTOR CO.
    13. NOTE: Start by filling the transmission with 4.7 liters (5 quarts) of clean automatic transmission fluid.
  13. Fill the transmission to the correct level with clean automatic transmission fluid.
