Digital Transmission Range (Tr) Sensor: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the digital TR sensor.
1. Install the digital TR sensor.
2. Loosely install the bolts.

  Fig 1: Installing Digital TR Sensor And Bolts
  Courtesy of FORD MOTOR CO.

NOTE: The manual lever must be in the NEUTRAL position.

Fig 2: Aligning Digital TR Sensor Slots Using Special Tool

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

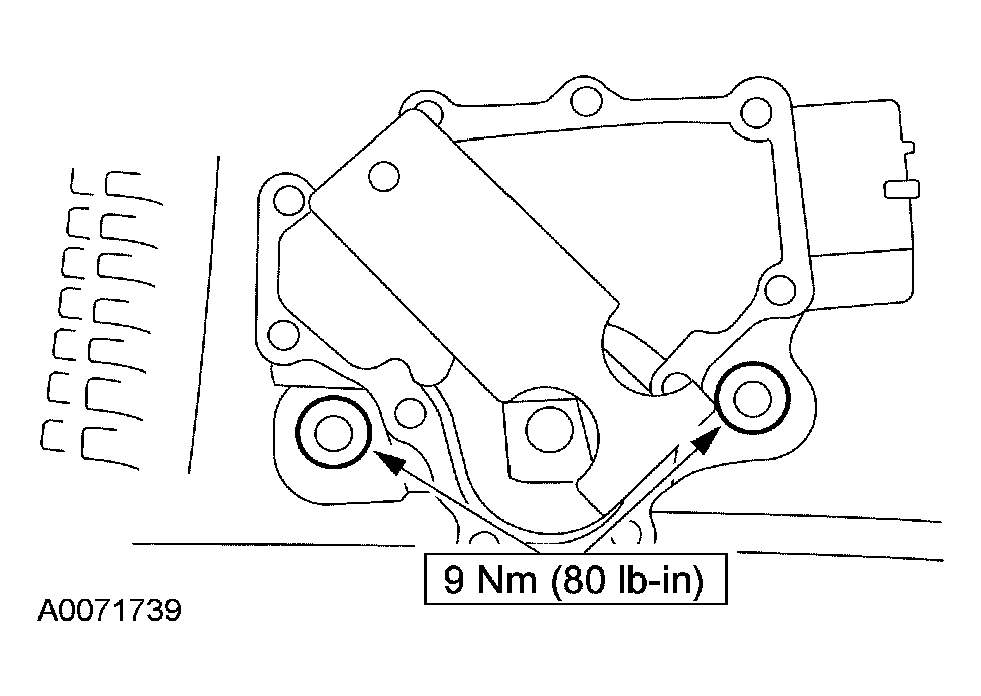

Fig 3: Digital TR Sensor Bolts - With Torque Specifications

Courtesy of FORD MOTOR CO.

Tighten the digital TR sensor bolts.
Install the manual control lever.
1. Position the manual control lever.
2. Install a new manual control lever nut.

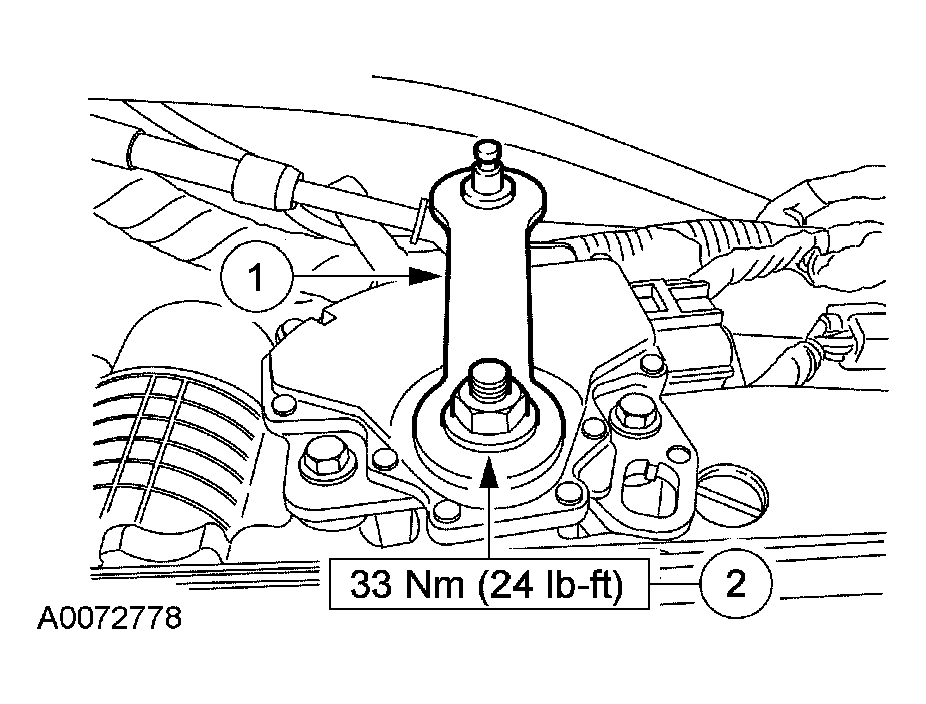

  Fig 4: Identifying Manual Control Lever
  Courtesy of FORD MOTOR CO.
Connect the shift cable end to the manual lever with the lever in the (D) position.

Fig 5: Identifying Manual Control Lever Shift Cable End
Courtesy of FORD MOTOR CO.
Install the digital TR sensor electrical connector.
