Reverse Sun Gear: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

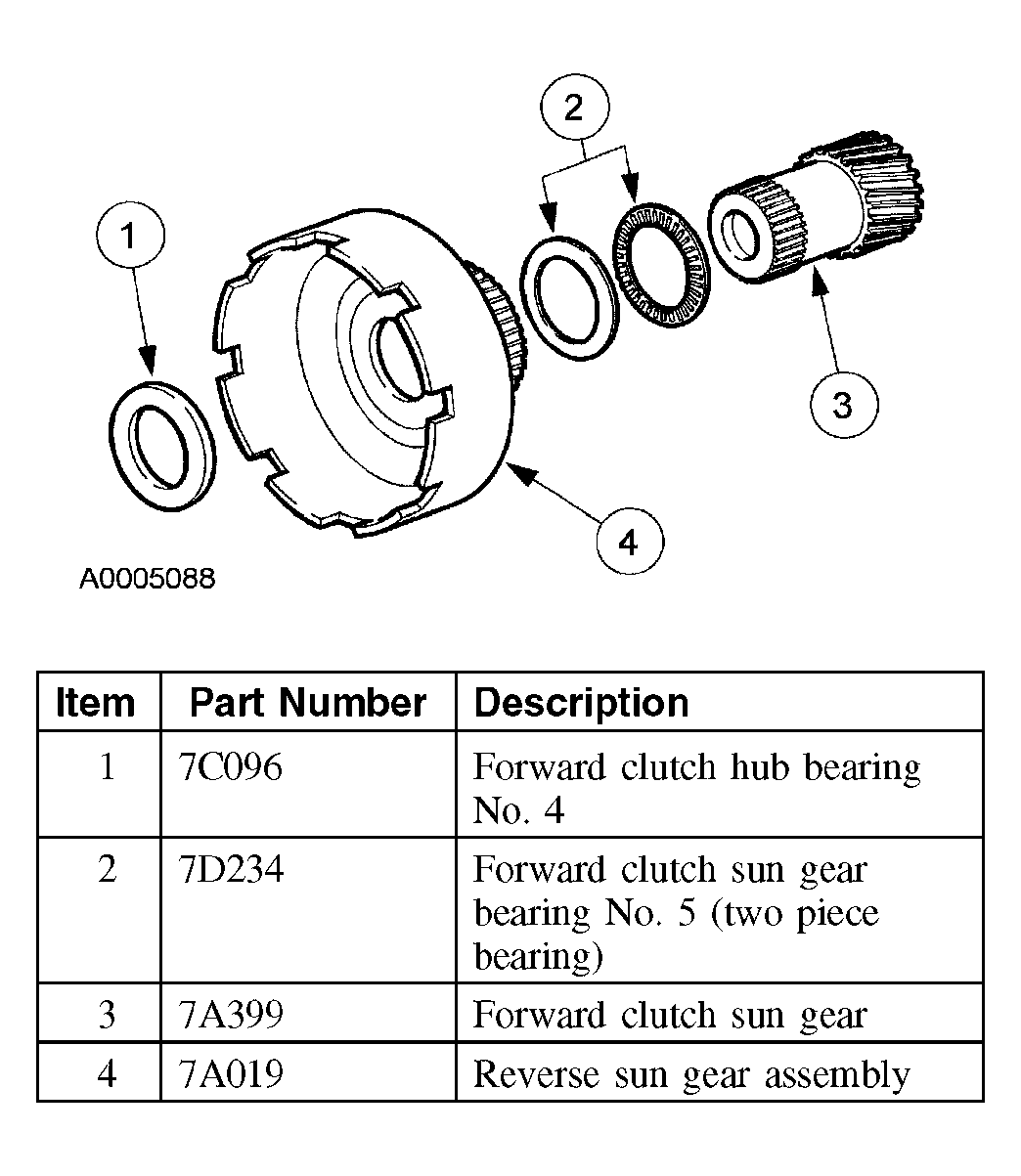

Fig 1: Identifying Reverse Sun Gear Components
G03888837Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.
    Fig 2: Removing Reverse Clutch Sun Gear Assembly And No. 4 Forward Clutch Hub Bearing And Race
    G03888838Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.
    Fig 3: Removing Forward Clutch Sun Gear Assembly And No. 5 Forward Clutch Sun Gear Bearing And Race
    G03888839Courtesy of FORD MOTOR CO.
