Pump And Intermediate Clutch Piston: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the No. 1 selective pump support thrust washer.
    Fig 1: Locating Selective Pump Support Thrust Washer No. 1
    G03888769Courtesy of FORD MOTOR CO.
    2. NOTE: Note the location of the bleed hole during disassembly for assembly.
    Fig 2: Identifying Intermediate Clutch Piston
    G03888770Courtesy of FORD MOTOR CO.
  2. Remove the intermediate clutch piston.
  3. Remove the bolts, and remove the front pump support.

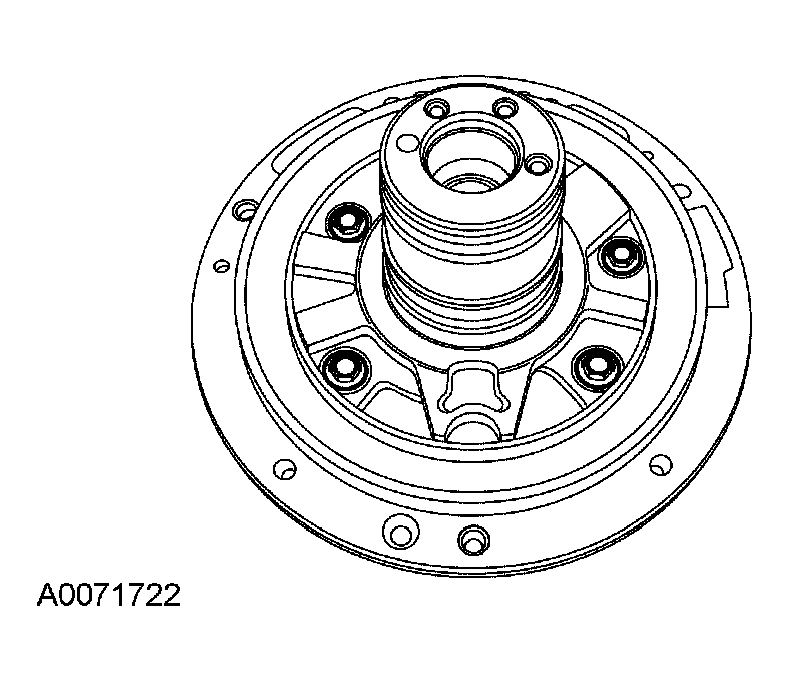

    Fig 3: Removing Front Pump Support
    G03888771Courtesy of FORD MOTOR CO.
    4. NOTE: Note that the new seals on this pump are square cut on the ends.
    Fig 4: Removing/Installing Seal Rings
    G04584564Courtesy of FORD MOTOR CO.
  4. Remove the seal rings.
  5. Remove the inner and outer pump gerotor gears.
    Fig 5: Identifying Inner And Outer Fluid Pump Gerotor Gears
    G03888776Courtesy of FORD MOTOR CO.
  6. Remove and discard the front pump seal.
    Fig 6: Identifying Front Pump Seal
    G04584566Courtesy of FORD MOTOR CO.
