Main Control Valve Body: Assembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before beginning assembly, carry out and inspect the following:
When building up subassemblies and assembling the transmission, ALWAYS use new gaskets and seals.
All fasteners must be tightened to the torque specification indicated. For the necessary torques see General Specifications .
When building up subassemblies, each component part should be lubricated with clean transmission fluid. It is also good practice to lubricate the subassemblies as they are installed in the case.
Needle bearings, thrust washers and seals should be lightly coated with petroleum jelly during subassembly buildup or transmission assembly.
Many components and surfaces in the transmission are precision machined. Careful handling during disassembly, cleaning, inspection and assembly can prevent unnecessary damage to machined surfaces.

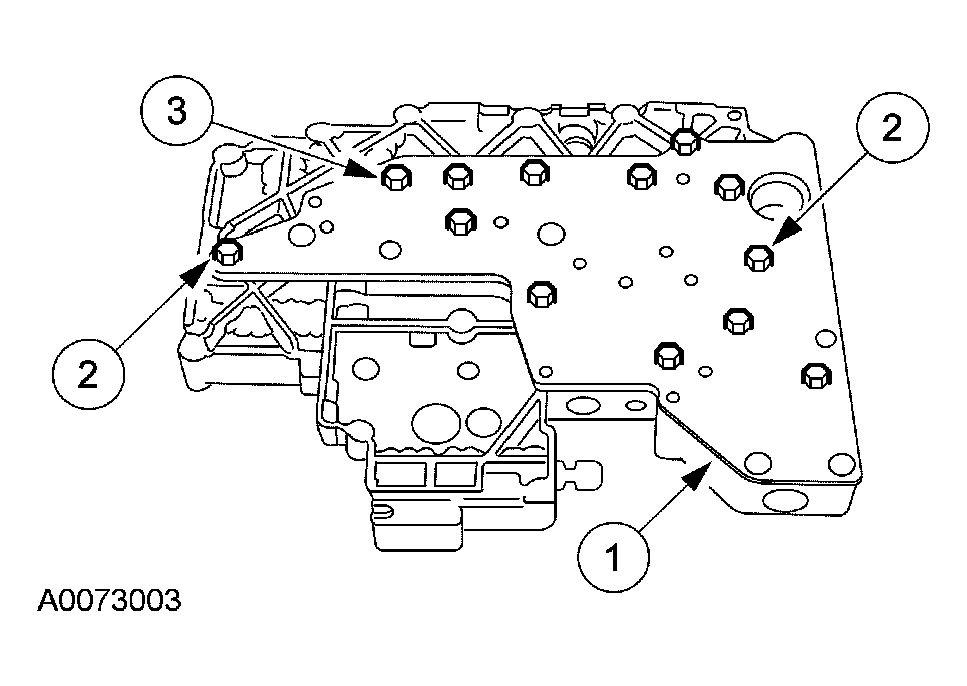

Install the valve body cover plate.
1. Position the valve body cover plate gasket and cover plate.
2. Loosely install the two guide pin bolts.
3. Loosely install the bolts.

  Fig 1: Installing Valve Body Cover Plate Gasket And Cover Plate
  Courtesy of FORD MOTOR CO.

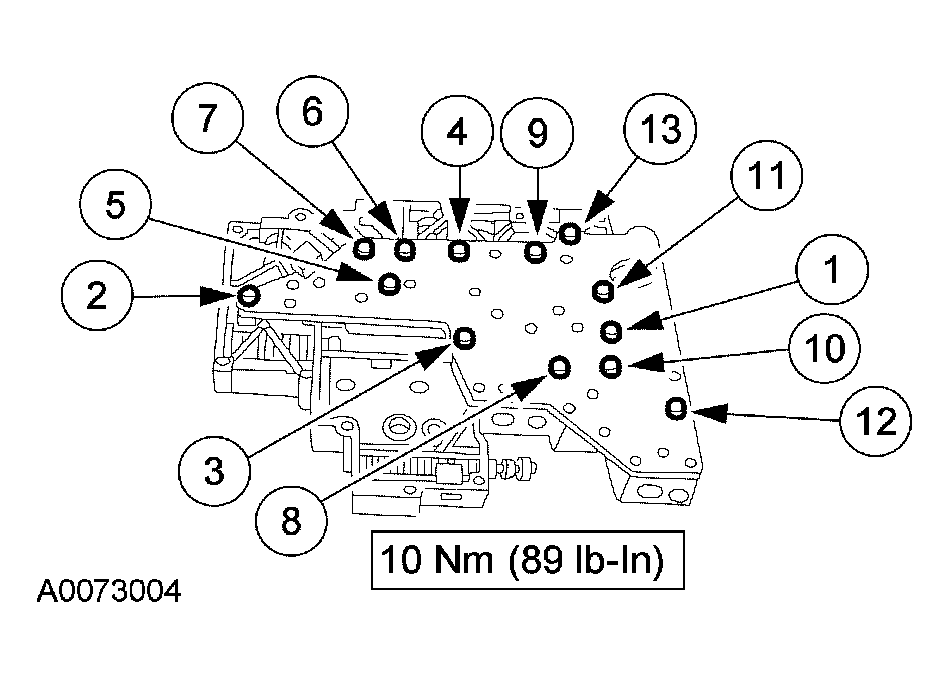

Tighten the bolts in the sequence shown in Fig 2.

Fig 2: Tightening Bolts In Sequence
Courtesy of FORD MOTOR CO.

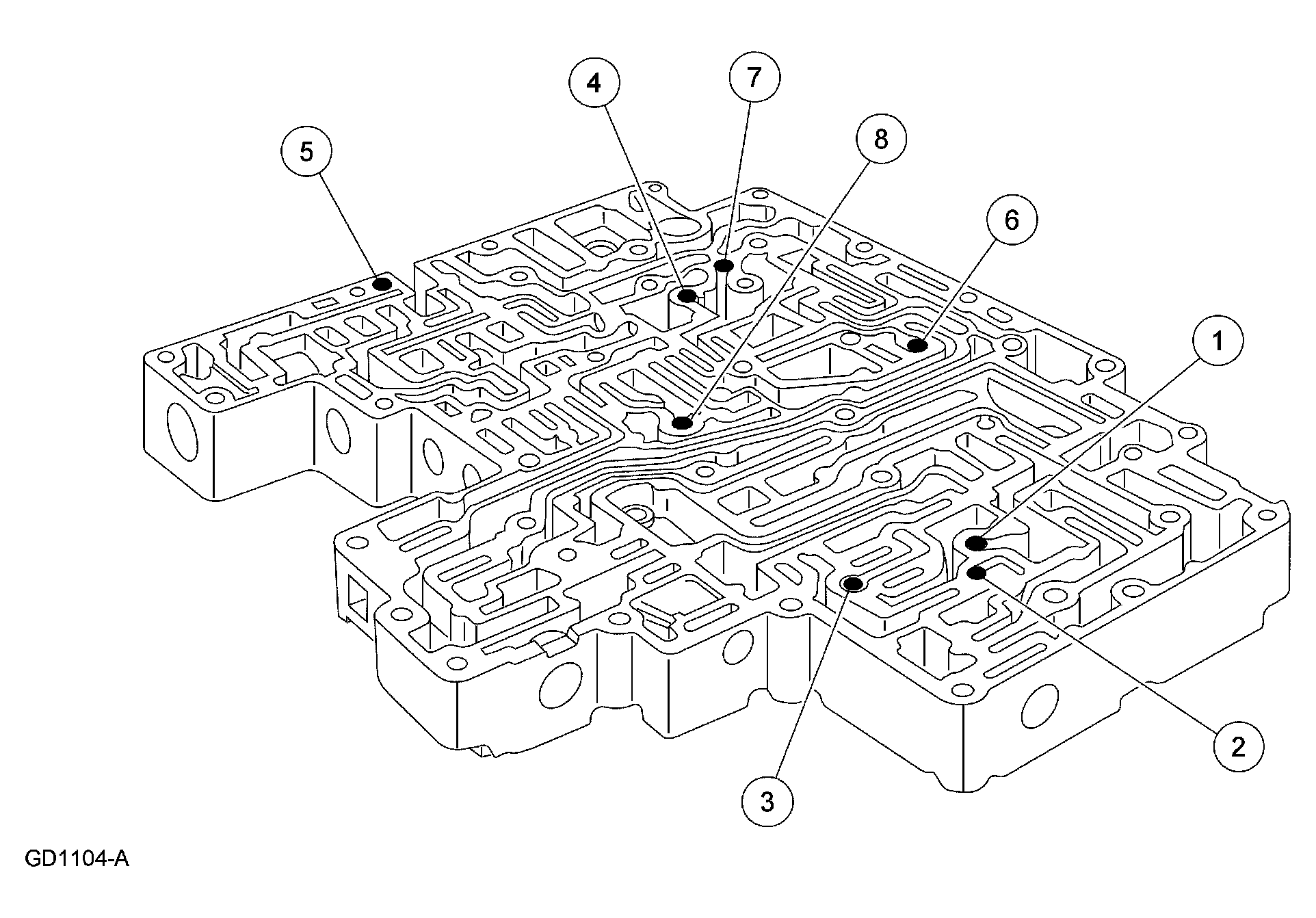

Install the eight coasting booster valve shuttle balls.

Fig 3: Installing Eight Coasting Booster Valve Shuttle Balls
Courtesy of FORD MOTOR CO.
Install the converter drain back valve and solenoid pressure supply screen.

Fig 4: Identifying Converter Drain Back Valve And Solenoid Pressure Supply Screen
Courtesy of FORD MOTOR CO.
Install the separator plate and gaskets.

Fig 5: Identifying Separator Plate And Gaskets
Courtesy of FORD MOTOR CO.
Install the two reinforcement plates.
1. Position the plates.
2. Install the bolts.

  Fig 6: Installing Two Reinforcement Plates
  Courtesy of FORD MOTOR CO.

NOTE: Inspect the shift solenoid O-rings and TCC solenoid O-rings for damage.

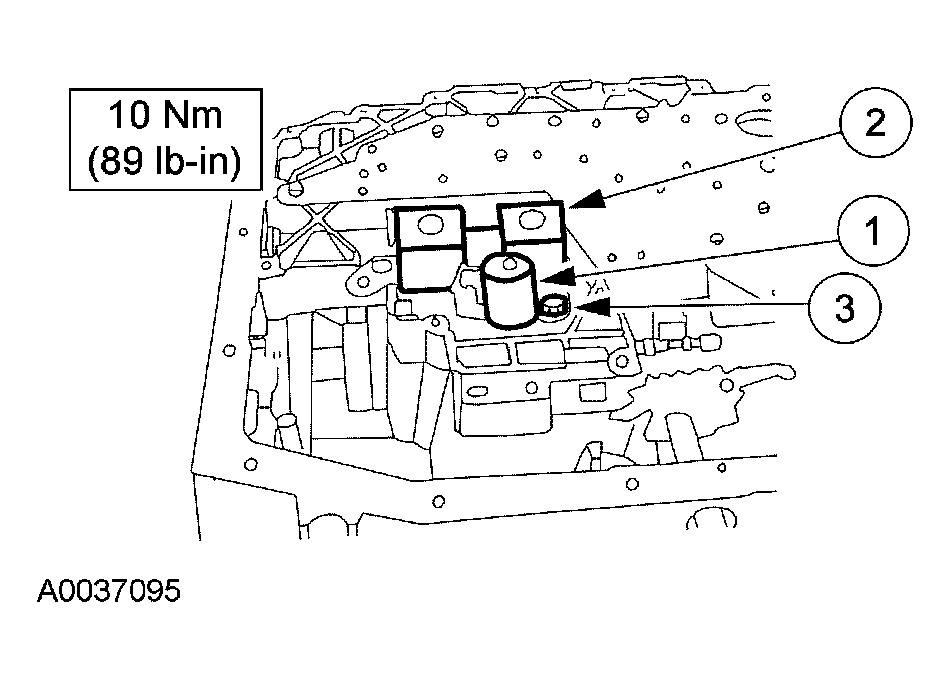

Install the shift solenoid.
1. Position the TCC solenoid.
2. Position the shift solenoid.
3. Install the bolt.

  Fig 7: Installing Shift Solenoid
  Courtesy of FORD MOTOR CO.
