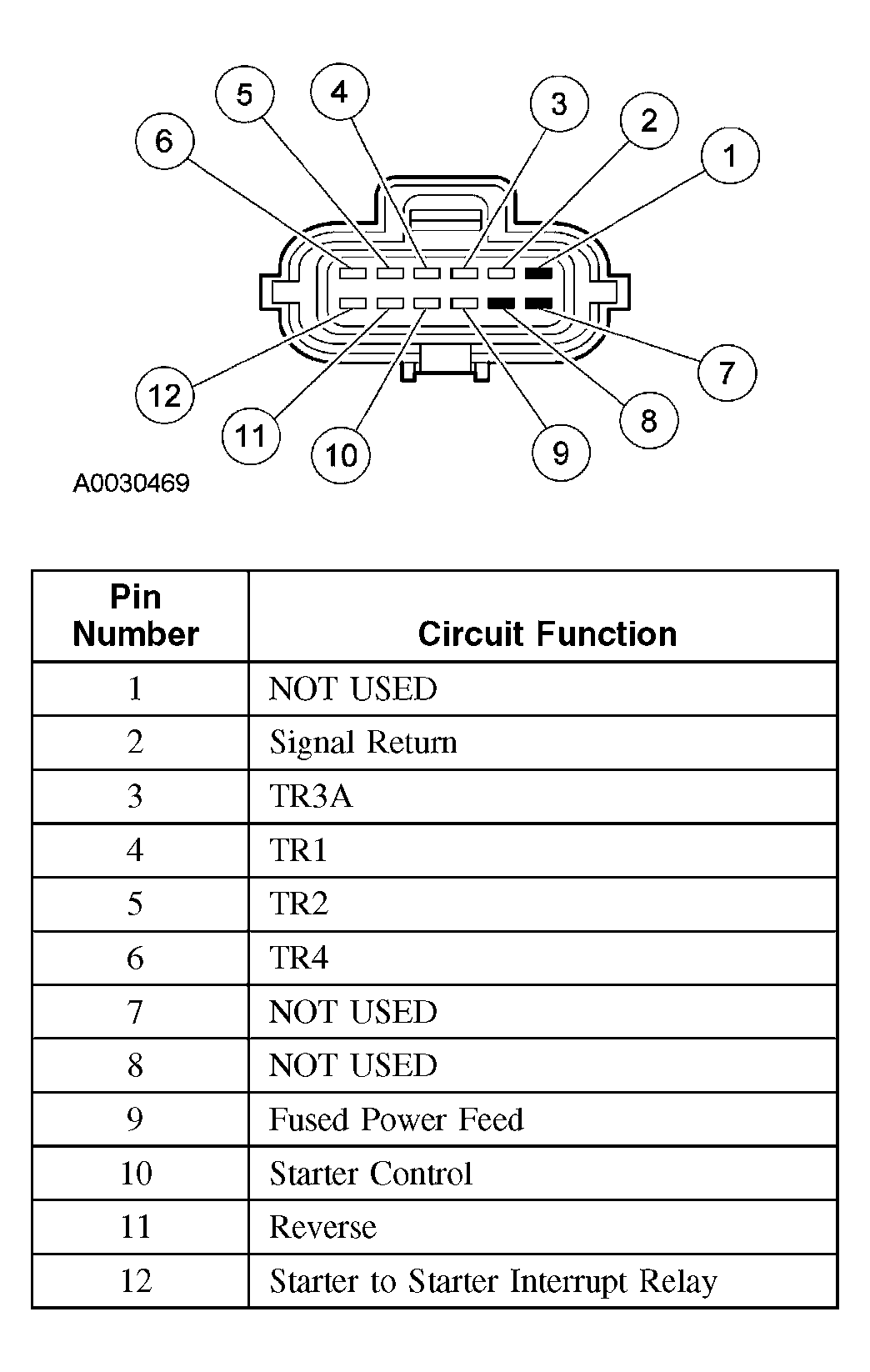

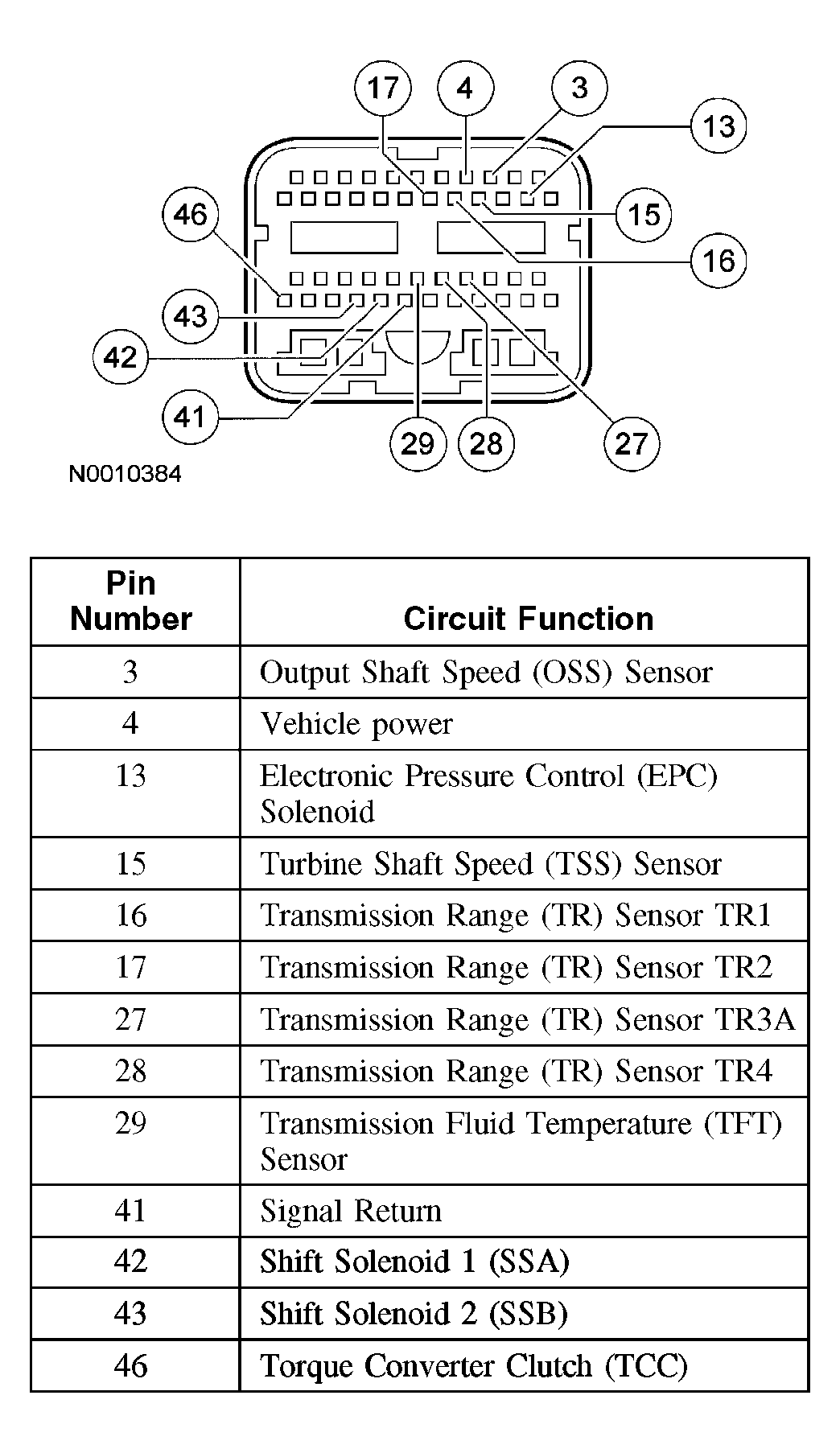

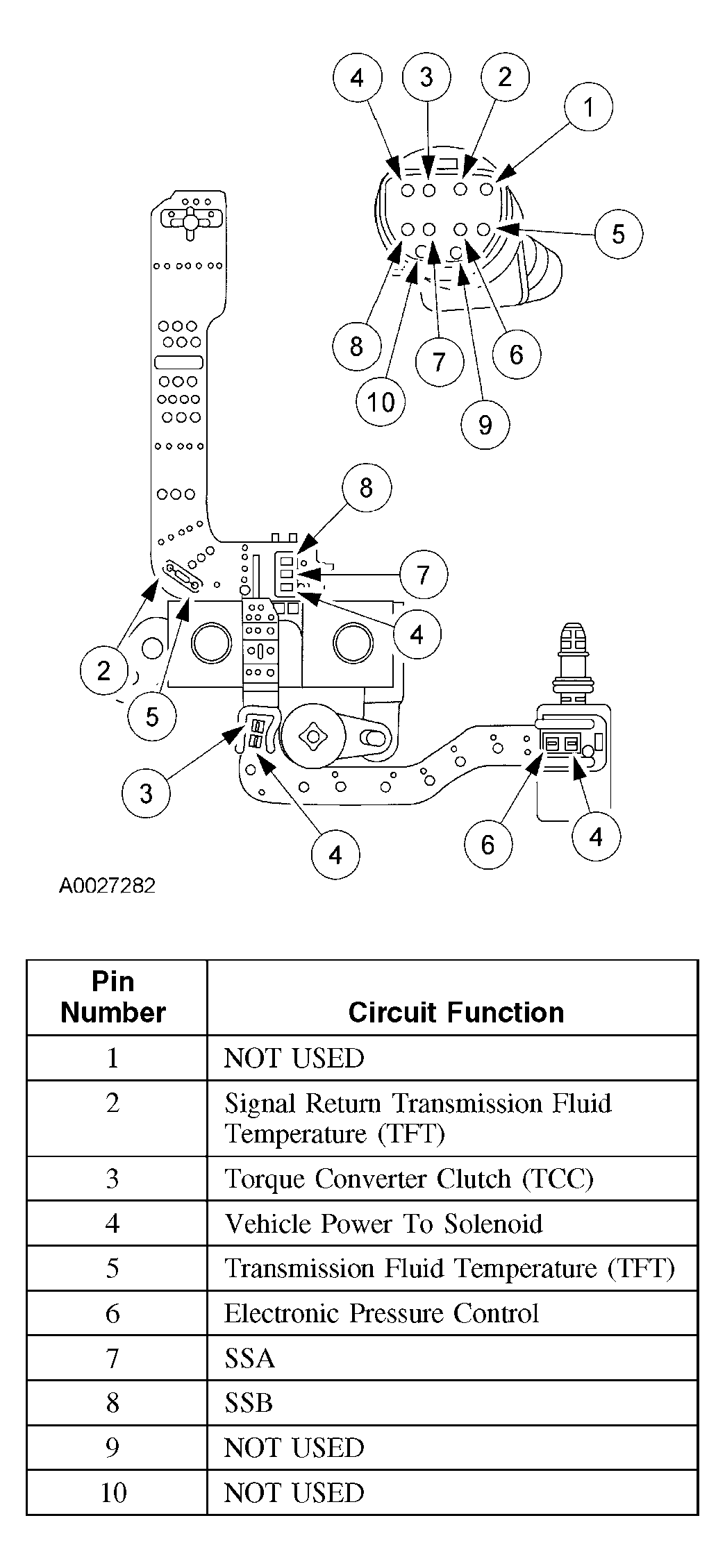

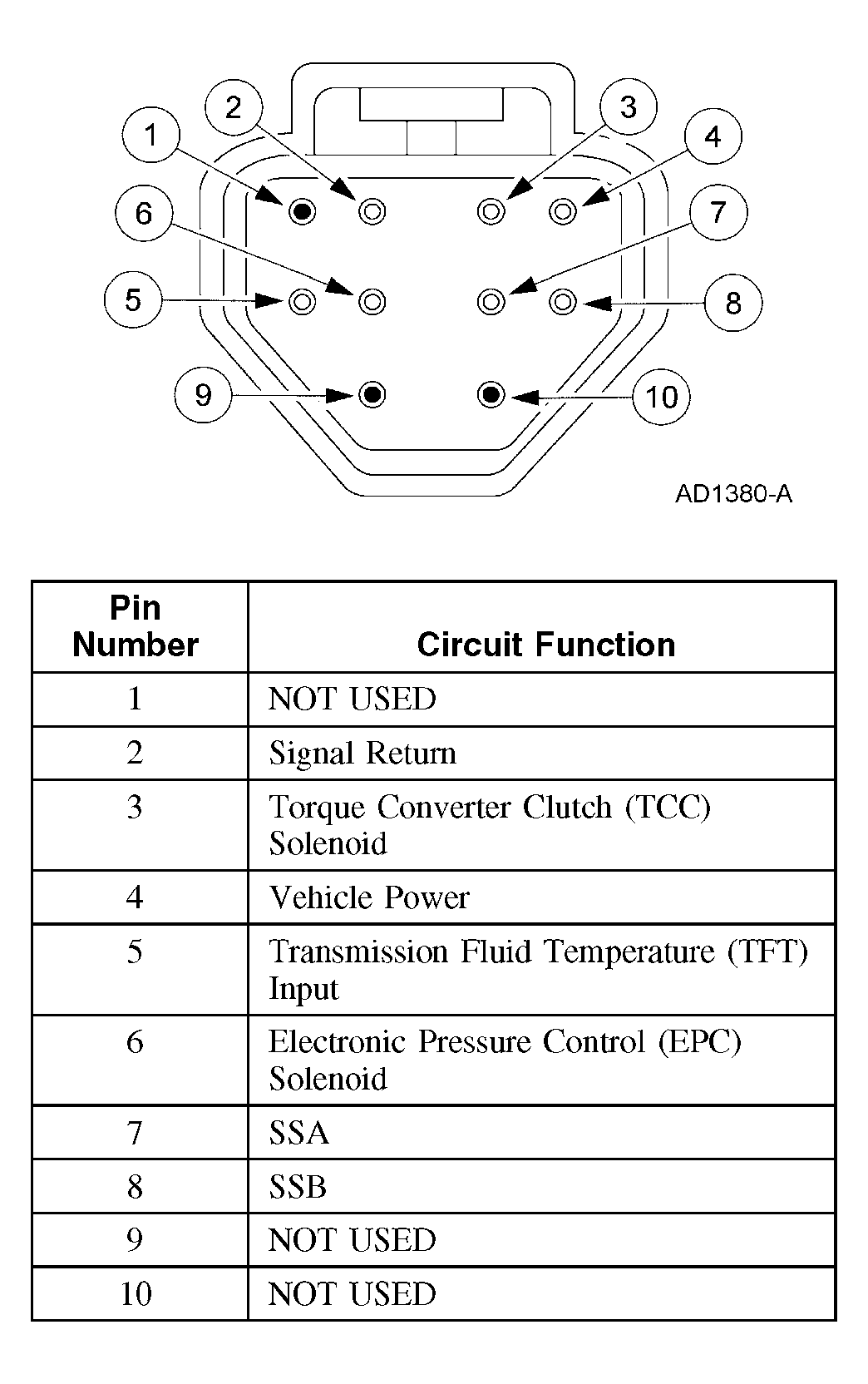

Transmission Connector Layouts: Notes
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
DIGITAL TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART
| Selector Position | PID: TR | PID: TR_D | PID: TR_V (volts) | |||||
|---|---|---|---|---|---|---|---|---|
| TR4 | TR3A | TR2 | TR1 | TR3A | ||||
| PARK | P/N | 0 | 0 | 0 | 0 | 0.0 Volts | ||
| In Between | REV | 0 | 1 | 0 | 0 | 1.3 - 1.8 Volts | ||
| REVERSE | REV | 1 | 1 | 0 | 0 | 1.3 - 1.8 Volts | ||
| In Between | REV | 0 | 1 | 0 | 0 | 1.3 - 1.8 Volts | ||
| NEUTRAL | NTRL | 0 | 1 | 1 | 0 | 1.3 - 1.8 Volts | ||
| In Between | O/D(1) | 1 | 1 | 1 | 0 | 1.3 - 1.8 Volts | ||
| OVERDRIVE | O/D(1) | 1 | 1 | 1 | 1 | 1.3 - 1.8 Volts | ||
| In Between | Man 2 | 1 | 0 | 1 | 1 | 0.0 Volts | ||
| Manual 2 | Man 2 | 1 | 0 | 0 | 1 | 0.0 Volts | ||
| In Between | Man 2 | 1 | 0 | 1 | 1 | 0.0 Volts | ||
| Manual 1 | Man 1 | 0 | 0 | 1 | 1 | 0.0 Volts | ||
|
||||||||
- TR_V is the voltage at the PCM pin 19 (TR3A circuit) to signal return.
- "In Between" reading could be caused by a shift cable or digital TR sensor misaligned or a digital TR sensor circuit failure of TR1, TR2, TR3A, or TR4.
- TR_D: 1= Open Digital TR switch, 0= Closed Digital TR switch.
- Readings taken from PCM signal pins for TR1, TR2, TR3A, TR4 to signal return.
- Voltages for TR1, TR2, TR4:
- = 0.0 volts.
- = 9.0-14.0 volts.
- Voltage for TR3A:
- = 0.0 volts.
- = 1.3-1.8 volts.
