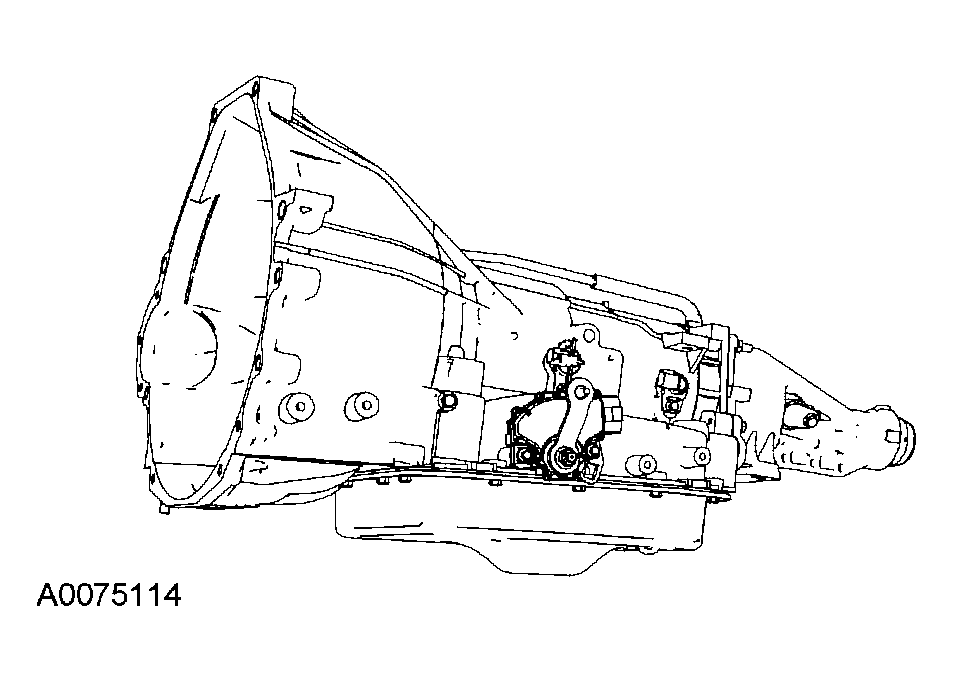

Transmission Description
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
The transmission has the following features:
- Wide ratio gears
- Four speeds
- Rear wheel drive
- Automatic
- Electronic shift
- Torque converter clutch control
- Line pressure controls
The transmission uses Ravigneaux-style double-pinion gearset with 2 bands, 1 one-way roller clutch, 1 mechanical diode and 4 friction clutches to produce 4 forward gears and Reverse.
