Main Components And Functions

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

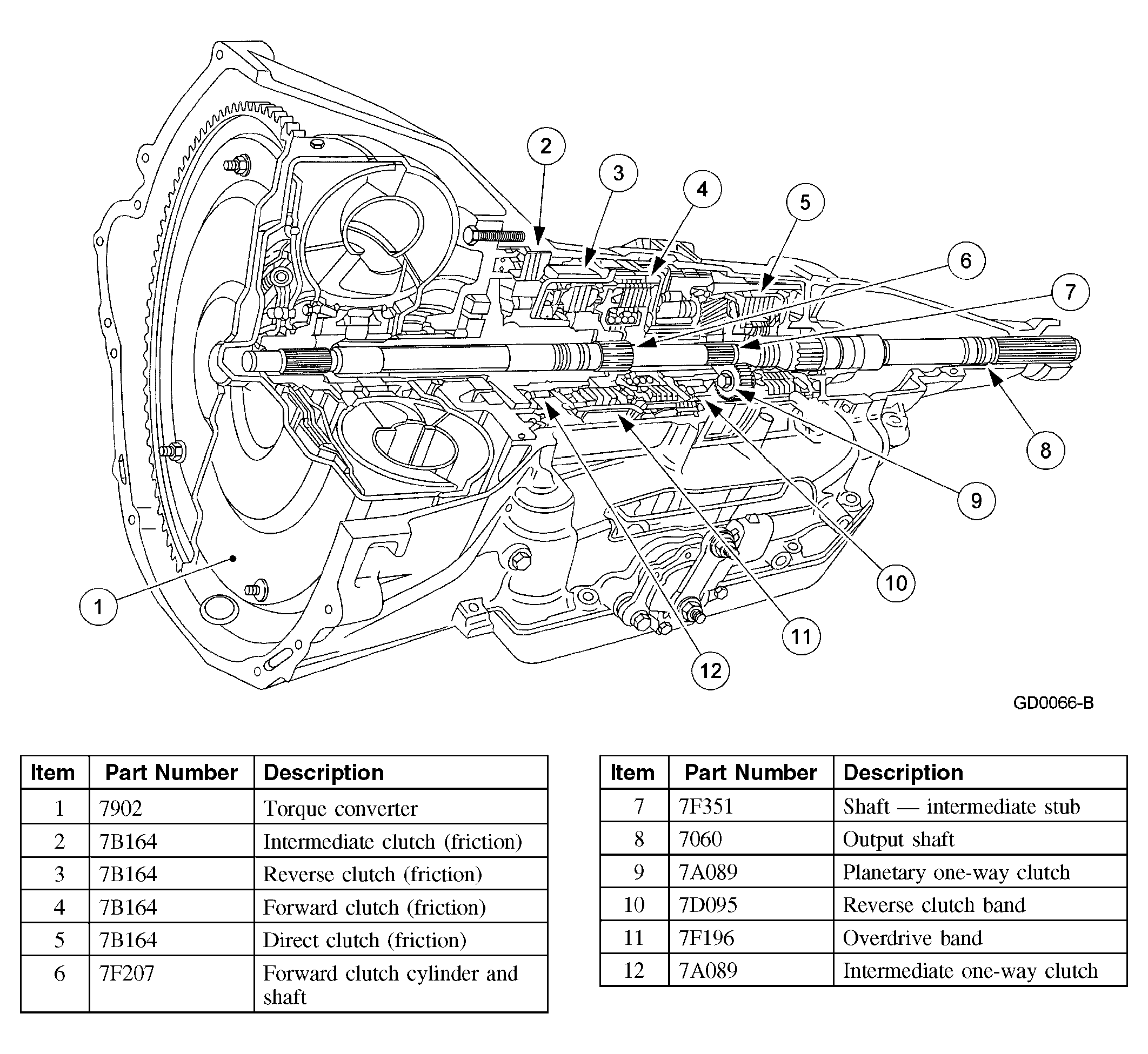

Fig 1: Identifying Transmission Main Components
G03888449Courtesy of FORD MOTOR CO.
