WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

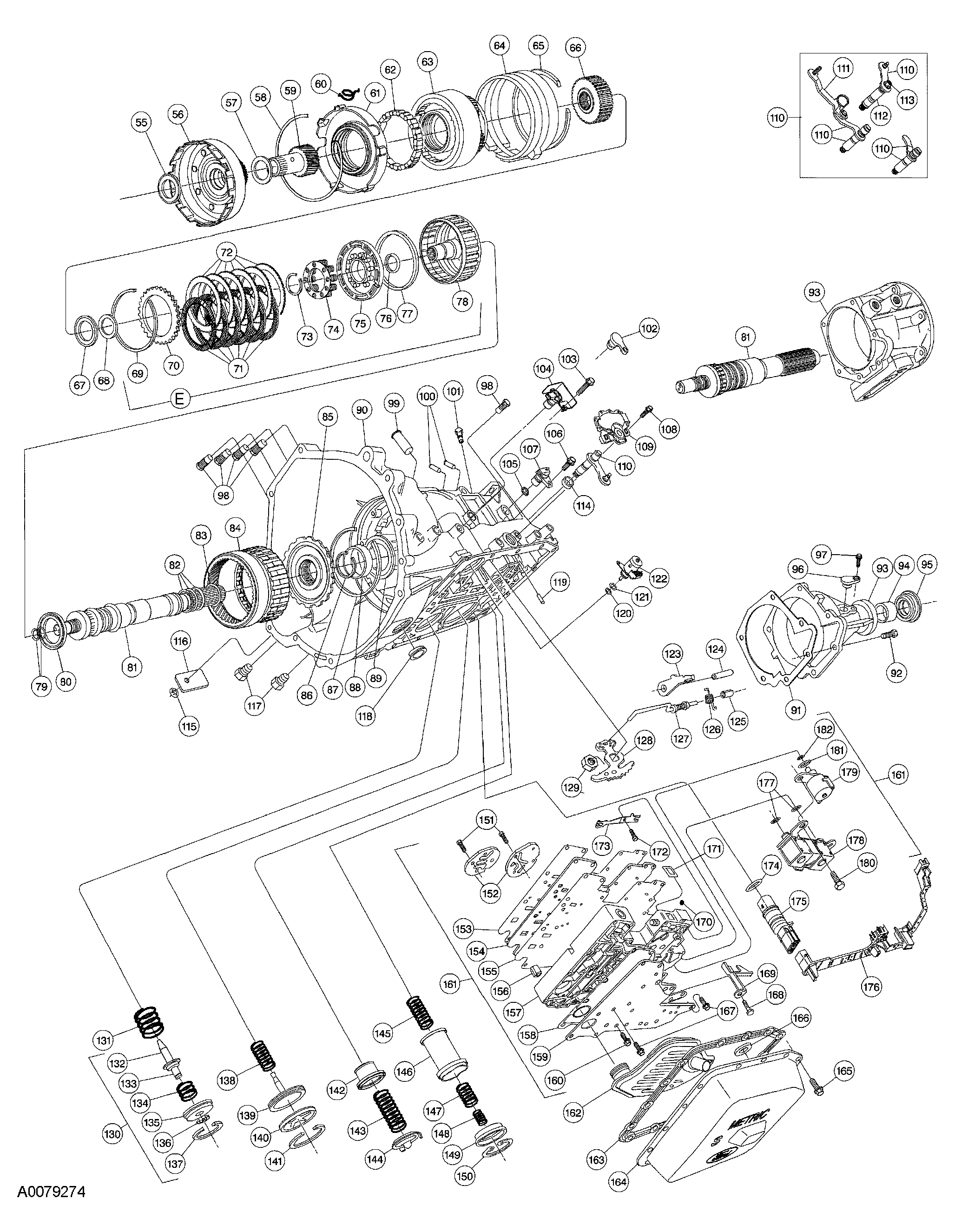

Fig 1: Exploded View Of Automatic Transmission (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Exploded View Of Automatic Transmission (2 Of 2)
Courtesy of FORD MOTOR CO.

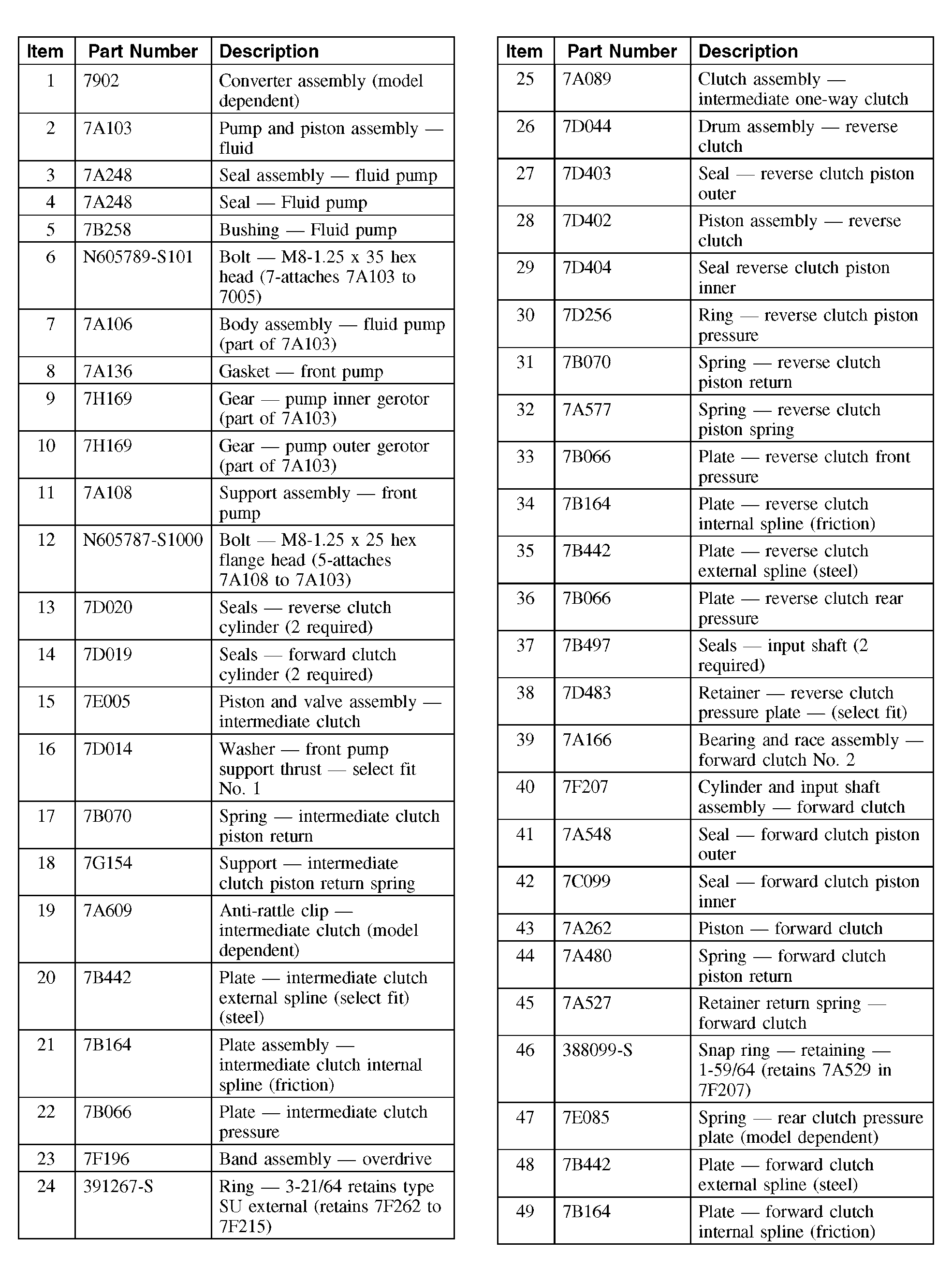

Fig 3: Identifying Automatic Transmission Components (1 Of 4)
Courtesy of FORD MOTOR CO.

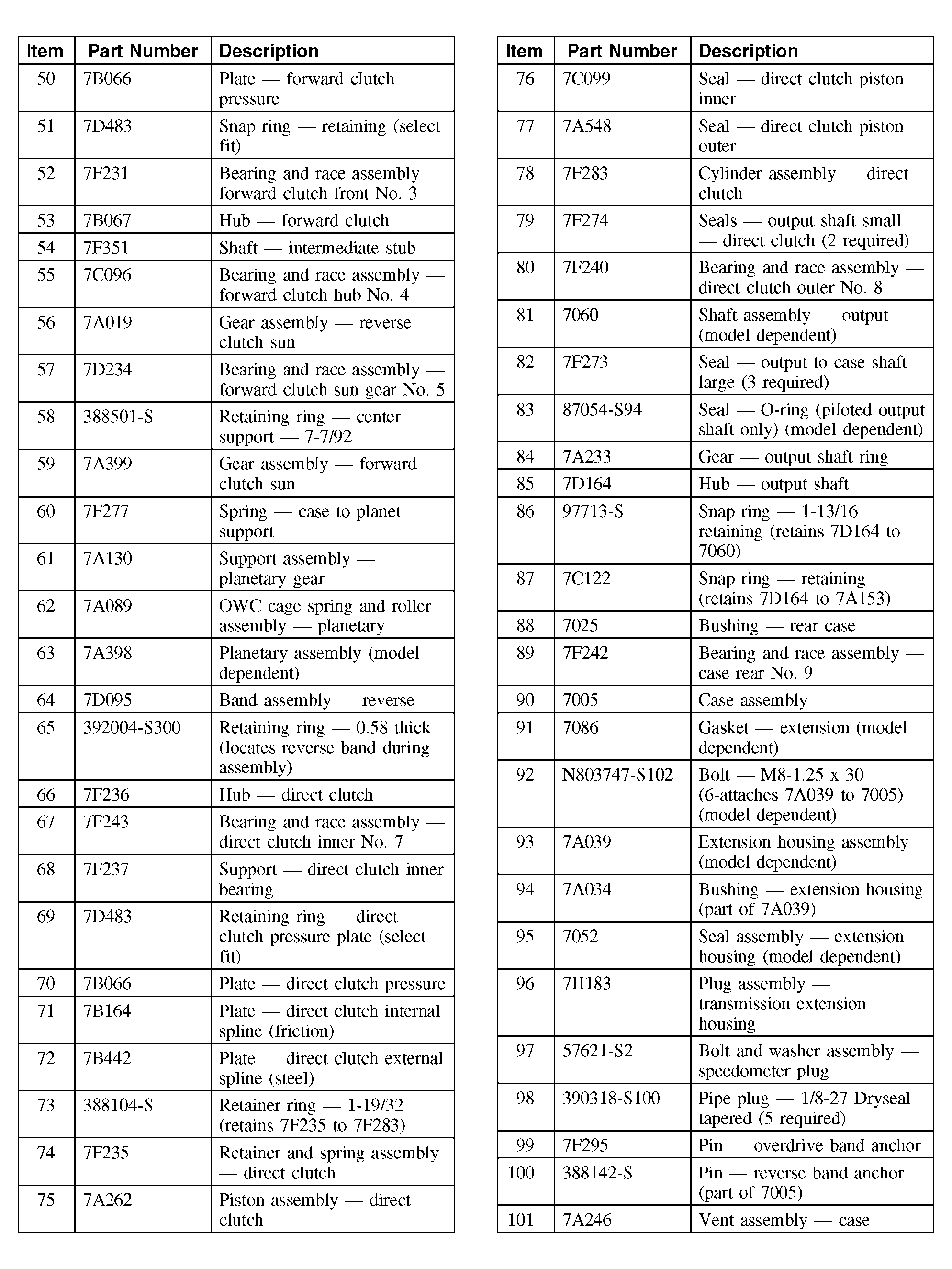

Fig 4: Identifying Automatic Transmission Components (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 5: Identifying Automatic Transmission Components (3 Of 4)
Courtesy of FORD MOTOR CO.

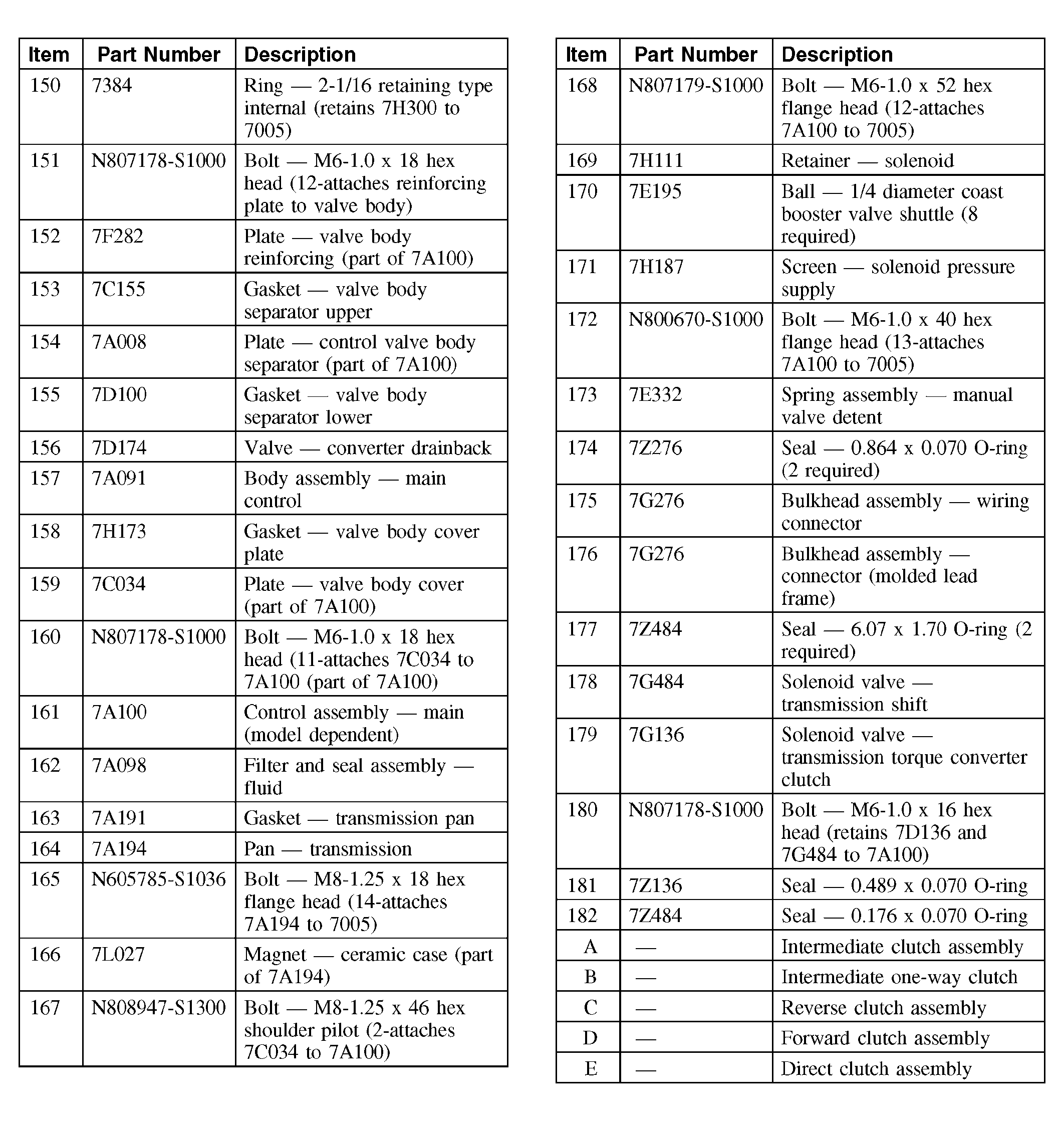

Fig 6: Identifying Automatic Transmission Components (4 Of 4)
