Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. Disconnect the mass airflow (MAF) sensor electrical connector.

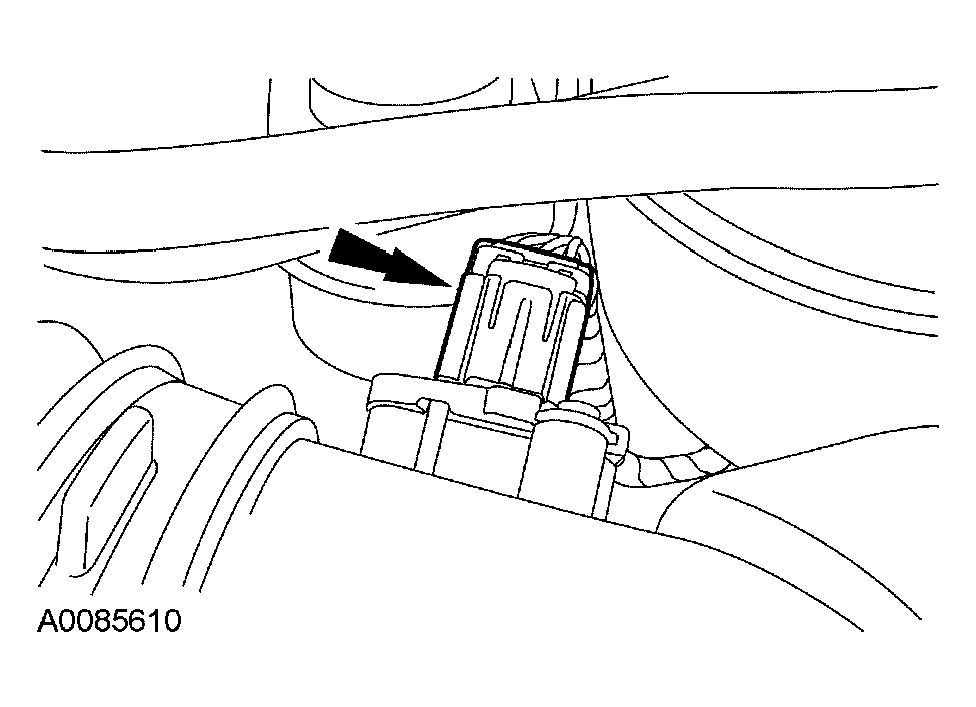

    Fig 1: Disconnecting Mass Airflow (MAF) Sensor Electrical Connector
    G03888417Courtesy of FORD MOTOR CO.
  3. Remove the screws and the MAF sensor.

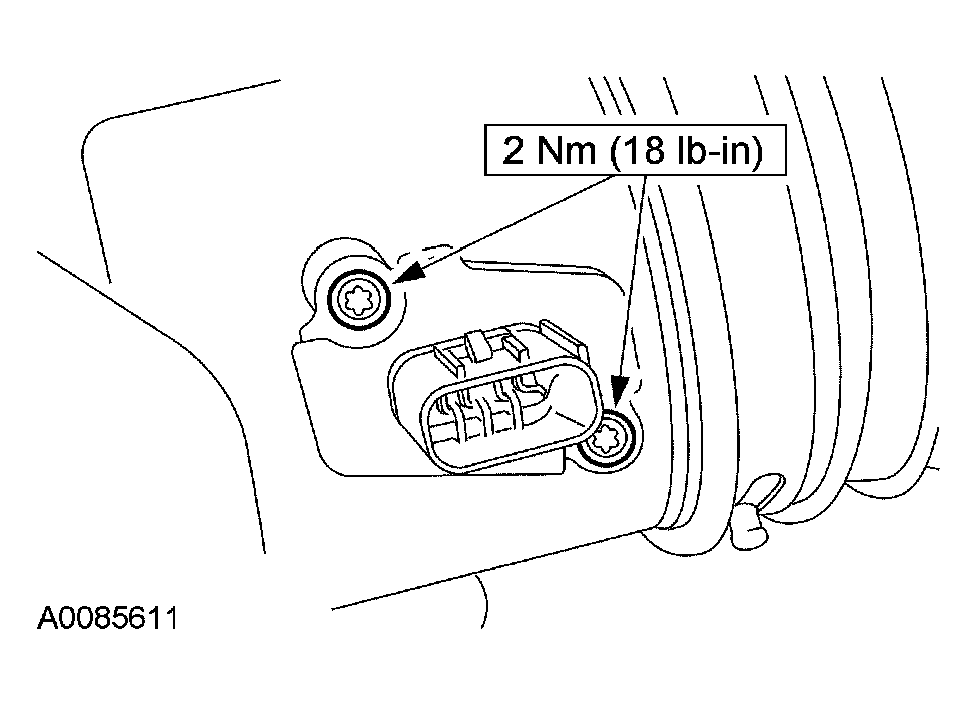

    Fig 2: Removing MAF Sensor
    G03888418Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
