Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Disconnect the exhaust pressure sensor electrical connector.

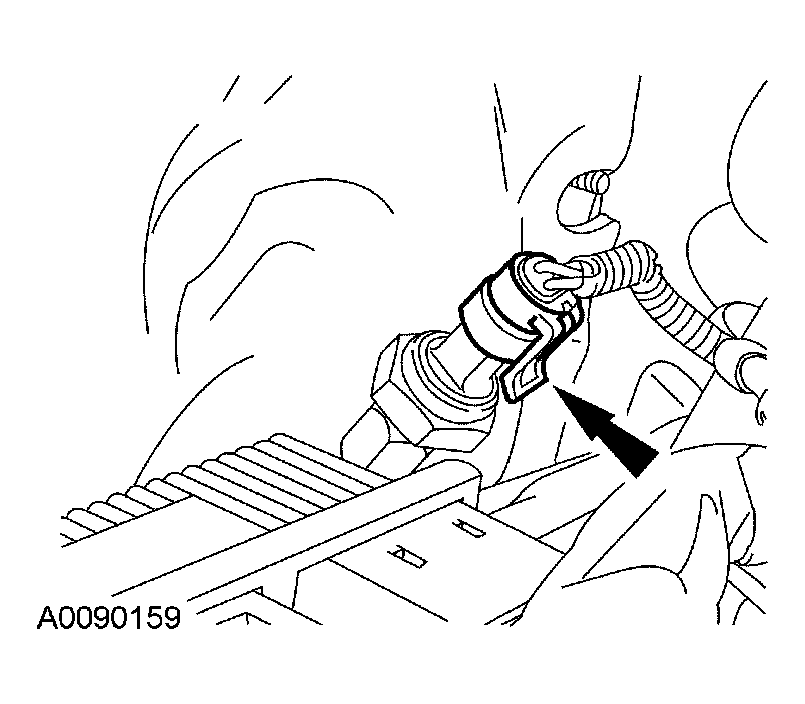

    Fig 1: Disconnecting Exhaust Pressure Sensor Electrical Connector
    G03888401Courtesy of FORD MOTOR CO.
    4. CAUTION: Use a backup wrench to remove the exhaust pressure sensor.

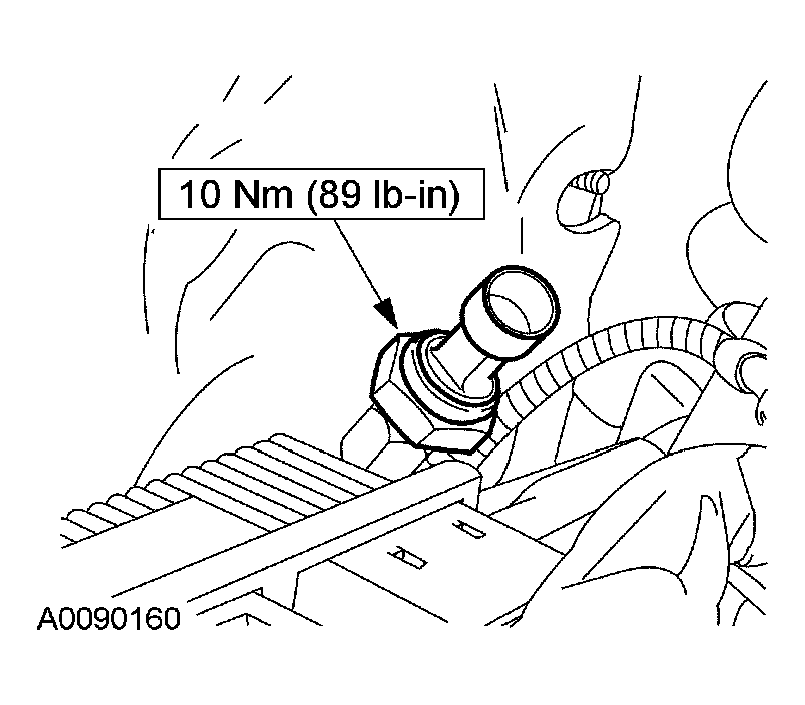

    Fig 2: Removing Exhaust Pressure Sensor
    G03888402Courtesy of FORD MOTOR CO.
  4. Remove the exhaust pressure sensor.
  5. To install, reverse the removal procedure.
