Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. Remove the instrument panel steering column cover.

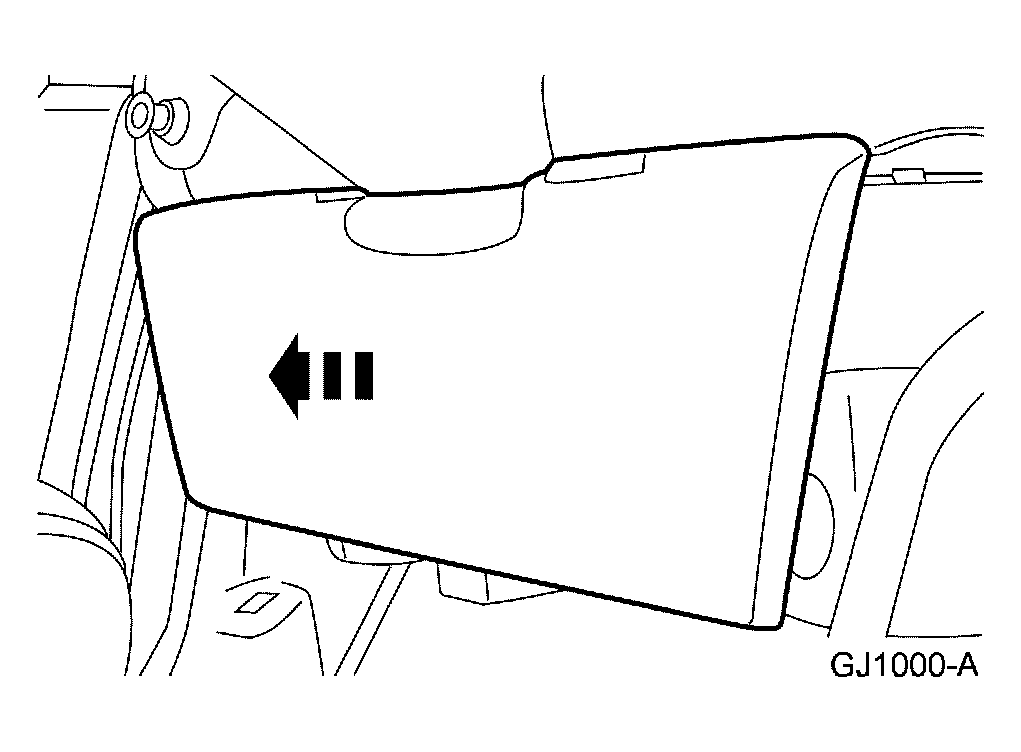

    Fig 1: Removing Instrument Panel Steering Column Cover
    G03888381Courtesy of FORD MOTOR CO.
  3. Disconnect the pin-type retainer and position the barometric pressure (BARO) sensor out of the dash.

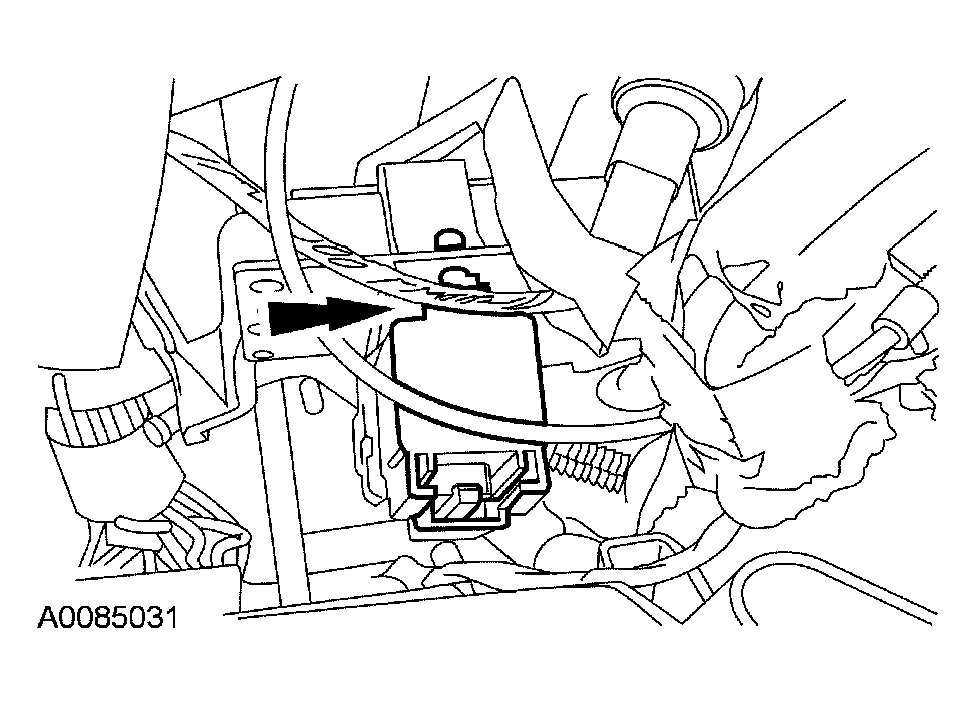

    Fig 2: Disconnecting Pin-Type Retainer
    G03888382Courtesy of FORD MOTOR CO.
  4. Disconnect and remove the BARO sensor.

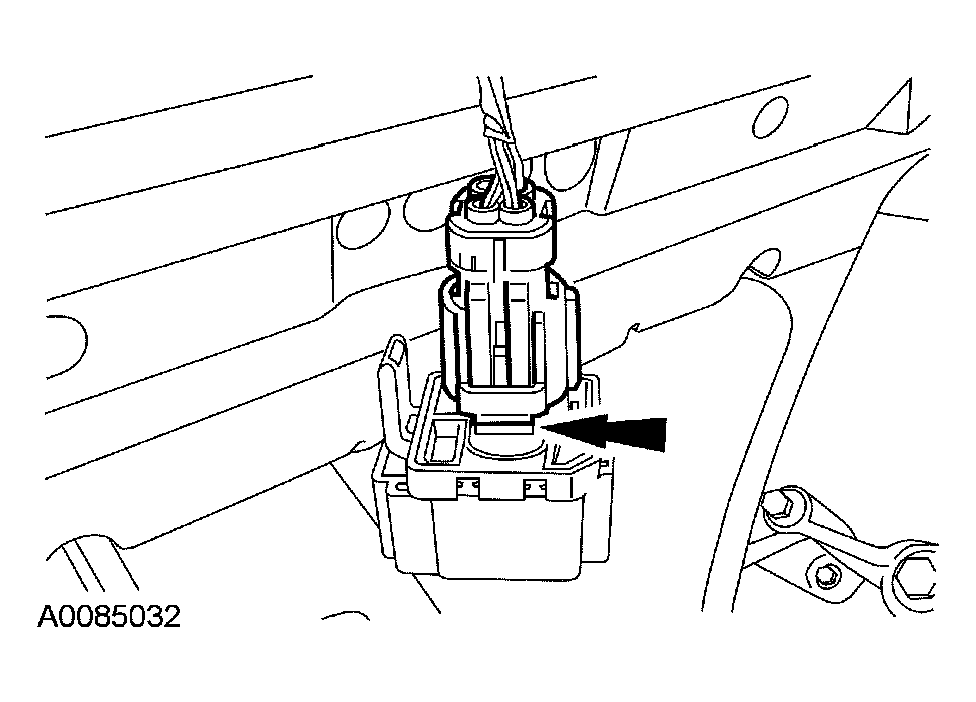

    Fig 3: Disconnecting BARO Sensor
    G03888383Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
