Throttle Position (TP) Sensor: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
    3. NOTE: The clip must be pulled out before disconnecting the electrical connector.
    Fig 1: Locating Throttle Position (TP) Sensor Electrical Connector
    G03885095Courtesy of FORD MOTOR CO.
  3. Disconnect the throttle position (TP) sensor electrical connector.
    4. CAUTION: Failure to remove the TP sensor screws in the following manner will result in damage to the screws. First loosen the screws 1 - 2 full turns using a hand tool and then use a suitable high speed driver to complete the removal.

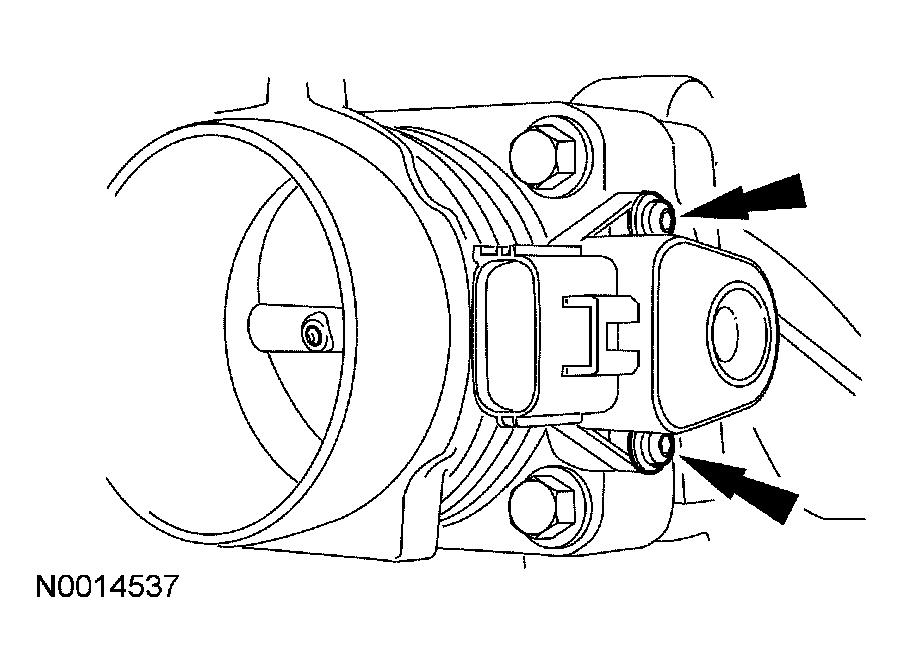

    Fig 2: Removing TP Sensor
    G03888368Courtesy of FORD MOTOR CO.
  4. Remove and discard the two screws and the TP sensor.
