Throttle Position (TP) Sensor: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not reuse the TP sensor and screws. A new TP sensor and screws must be installed.
    CAUTION: Do not use a high speed driver to install the new screws or damage to the TP sensor can occur.
    NOTE: When installing the new TP sensor, make sure that the radial locator tab on the TP sensor is aligned with the radial locator hole on the throttle body.

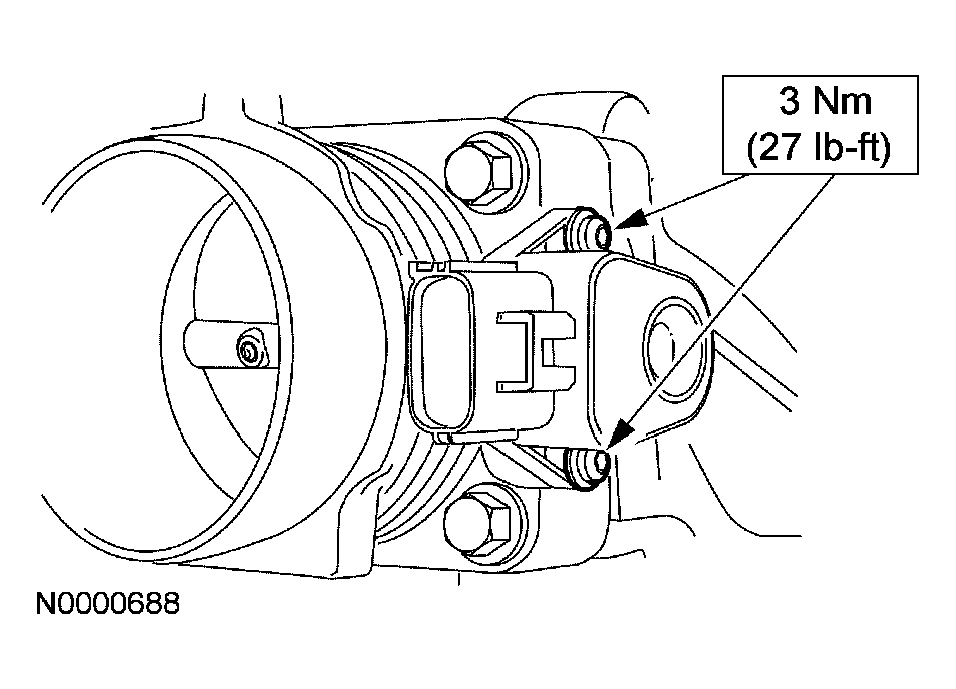

    Fig 1: Installing TP Sensor
    G03888369Courtesy of FORD MOTOR CO.
  1. Position the new TP sensor and install the two new screws.
  2. Connect the TP sensor electrical connector.
    Fig 2: Locating Throttle Position (TP) Sensor Electrical Connector
    G03885095Courtesy of FORD MOTOR CO.
  3. Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  4. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
