Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Disconnect the fuel injection pressure and temperature sensor electrical connector and vacuum hose.
    Fig 1: Disconnecting Fuel Injection Pressure And Temperature Sensor Electrical Connector
    G03887986Courtesy of FORD MOTOR CO.
  5. Remove the bolts and fuel injection pressure and temperature sensor.

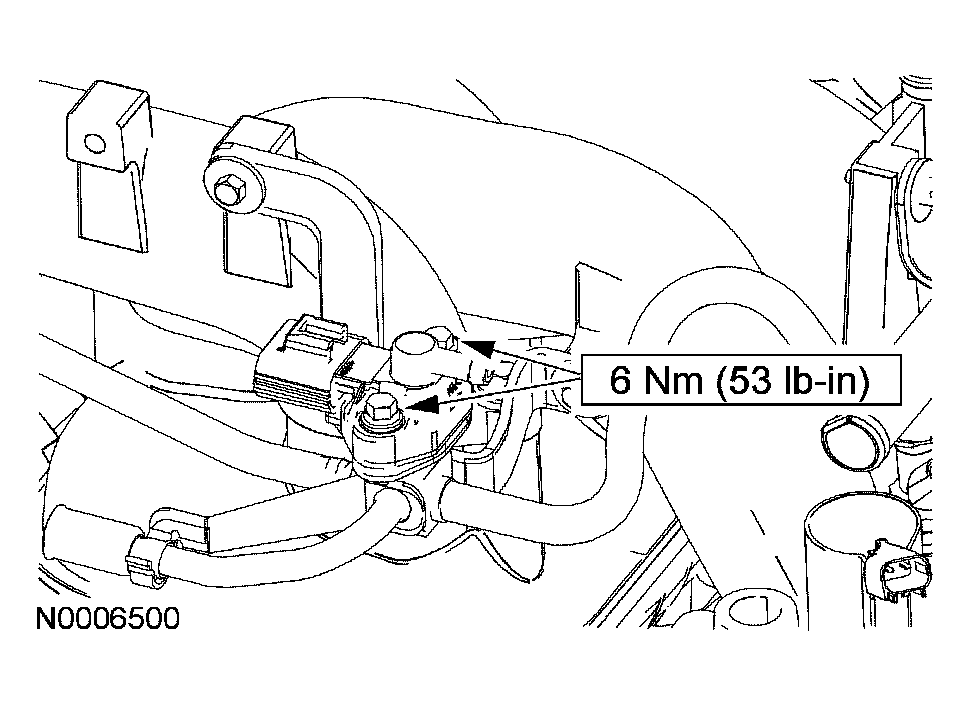

    Fig 2: Removing Fuel Injection Pressure And Temperature Sensor
    G03888364Courtesy of FORD MOTOR CO.
    6. NOTE: Hand tighten both bolts before tightening to specification.
  6. To install, reverse the removal procedure.
    • Apply clean engine oil to the sensor O-ring seal prior to installing the fuel injection pressure and temperature sensor.
