WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

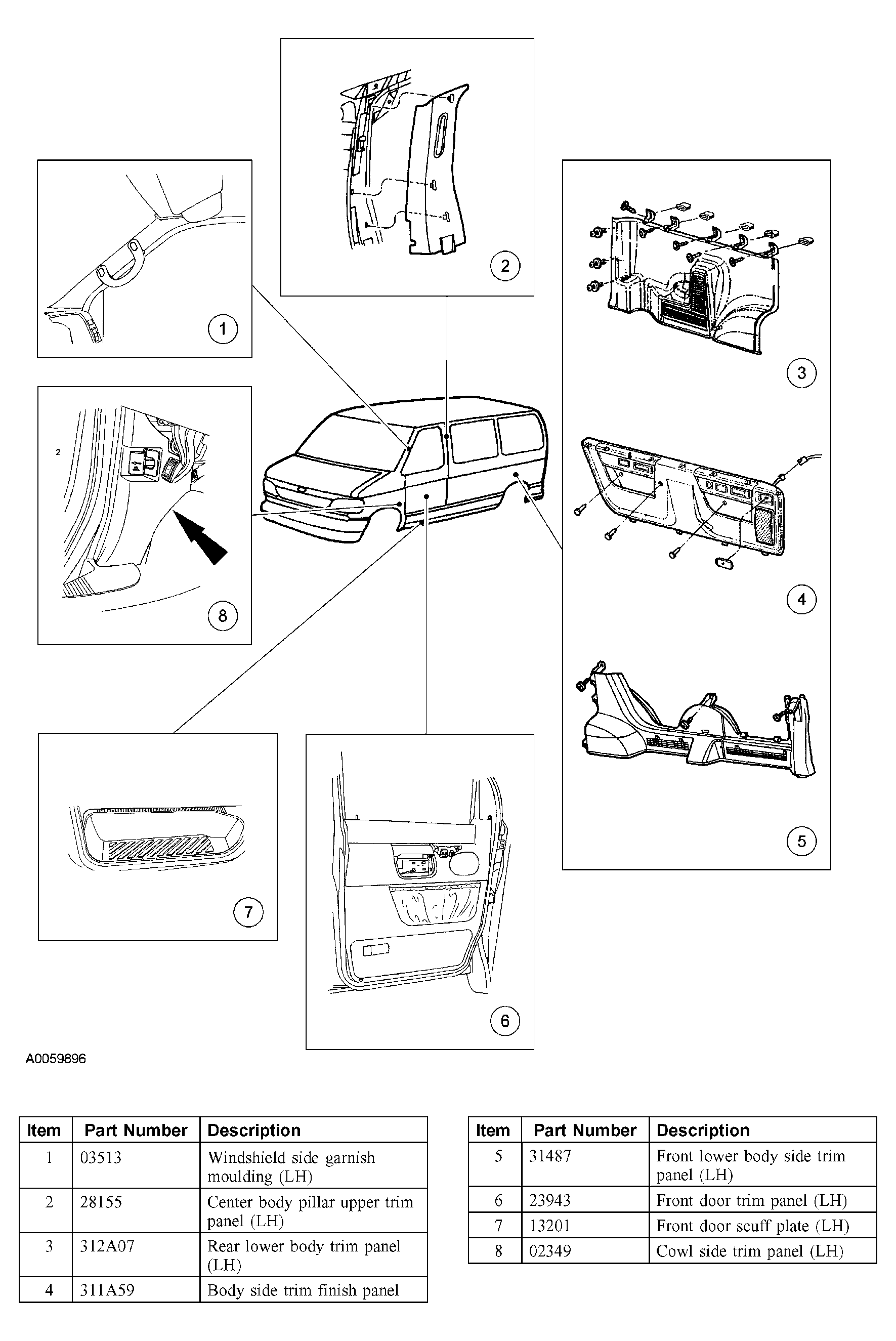

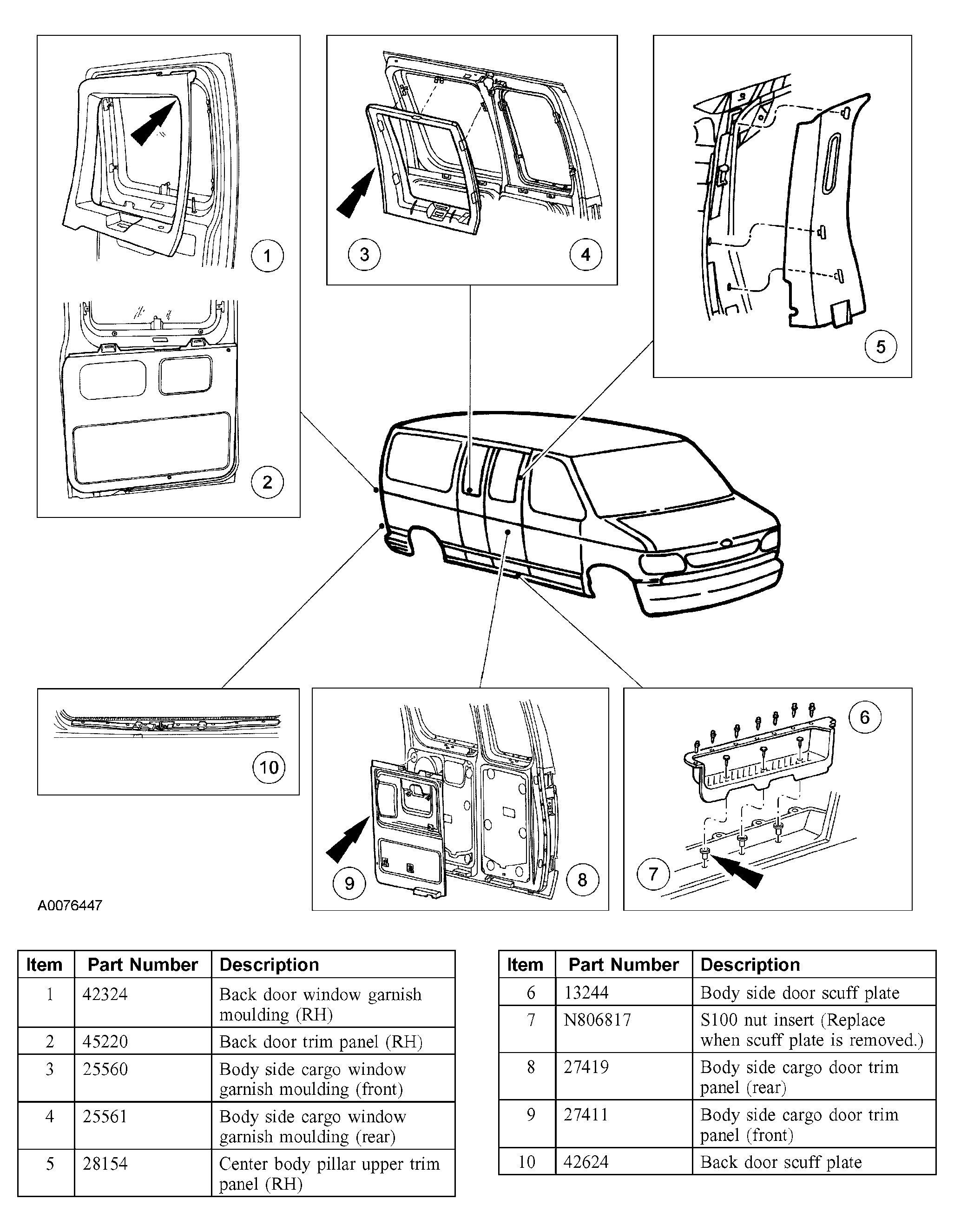

Fig 1: Identifying Interior Trim Component Locations - RH Center Pillar, LH Rear Door And LH Body Side
Courtesy of FORD MOTOR CO.

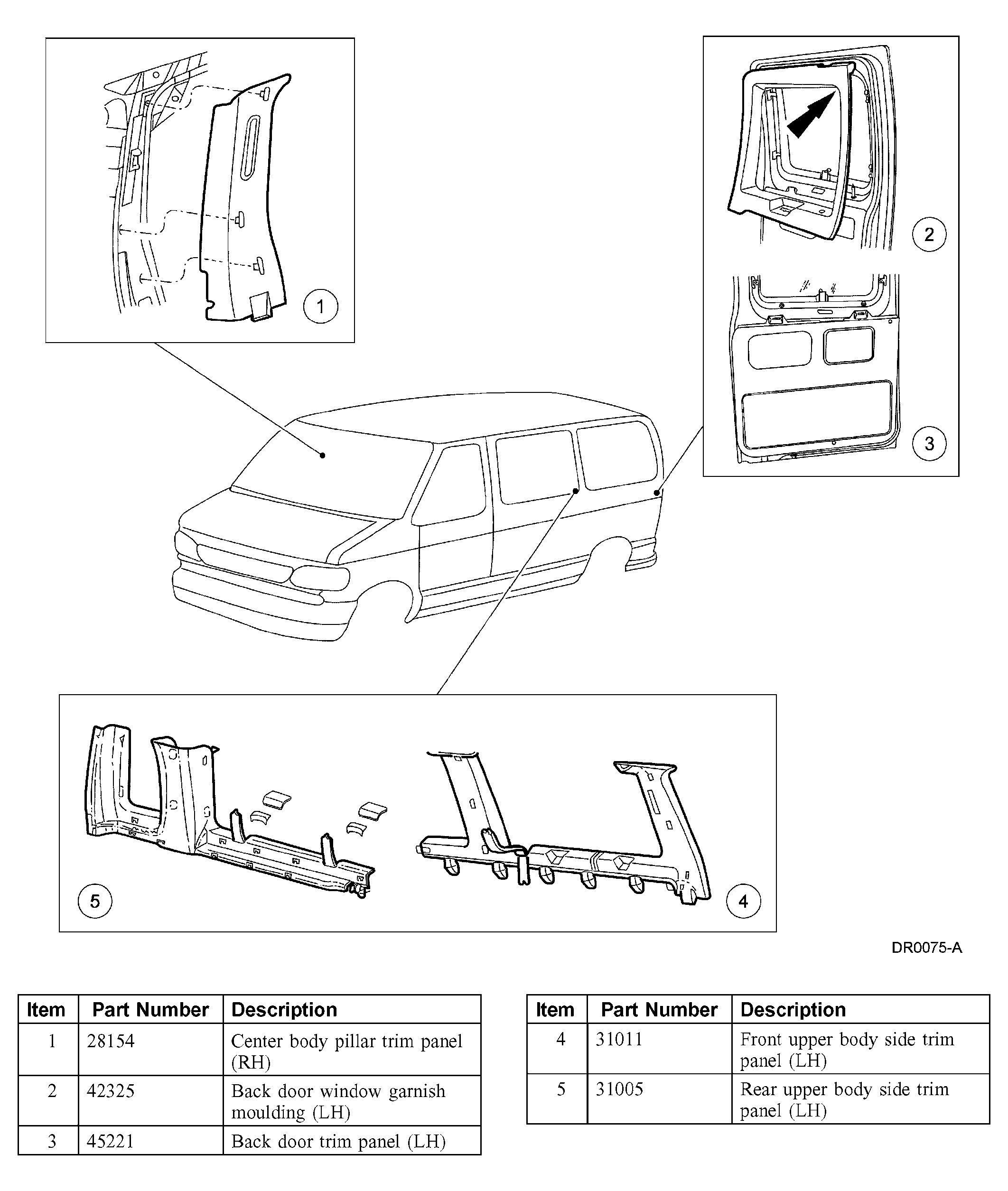

Fig 2: Identifying Interior Trim Component Locations - RH Side And RH Rear Door
Courtesy of FORD MOTOR CO.

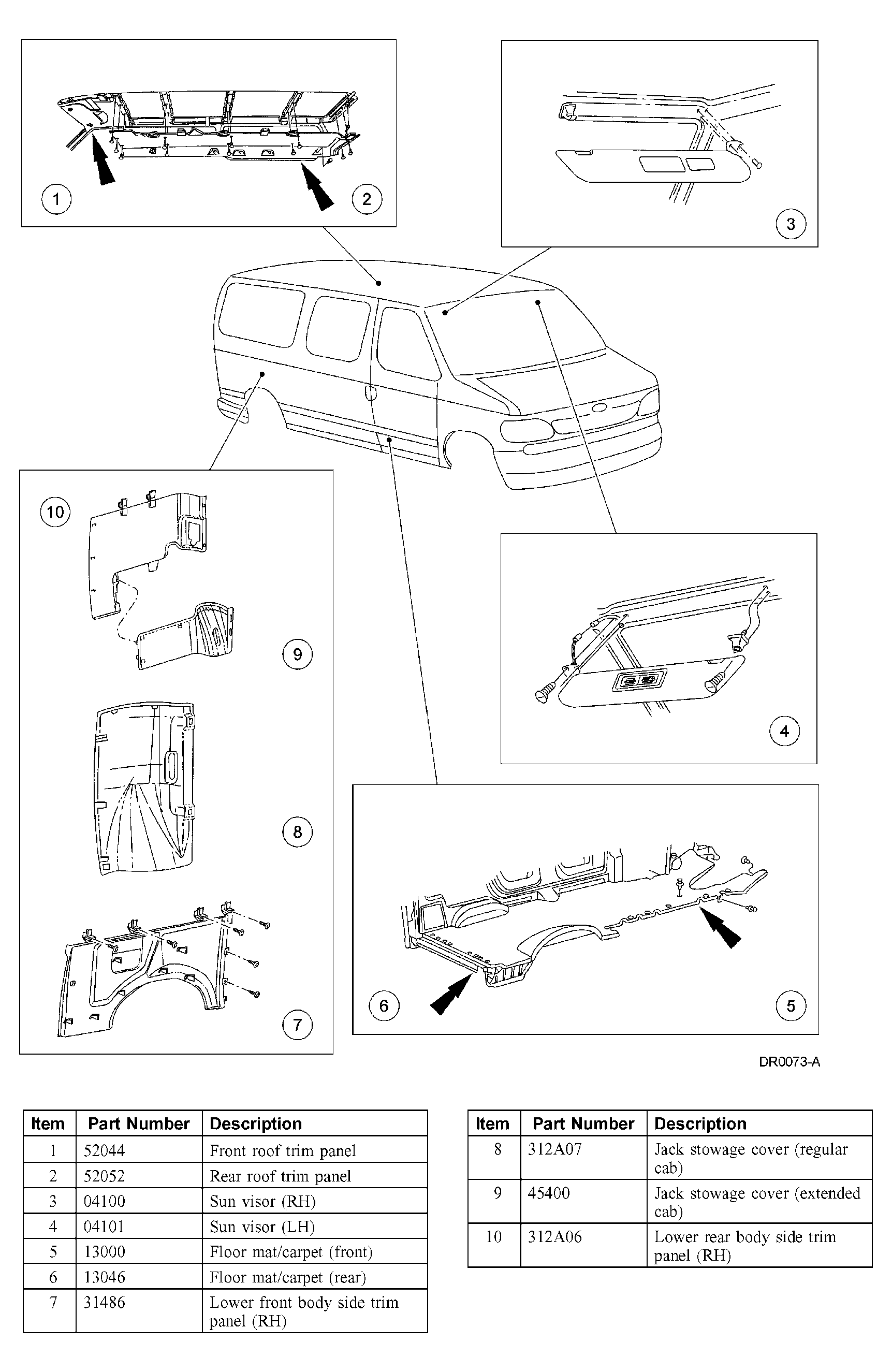

Fig 3: Identifying Interior Trim Component Locations - RH Side And Roof
Courtesy of FORD MOTOR CO.
Fig 4: Identifying Interior Trim Component Locations - LH Side
Courtesy of FORD MOTOR CO.

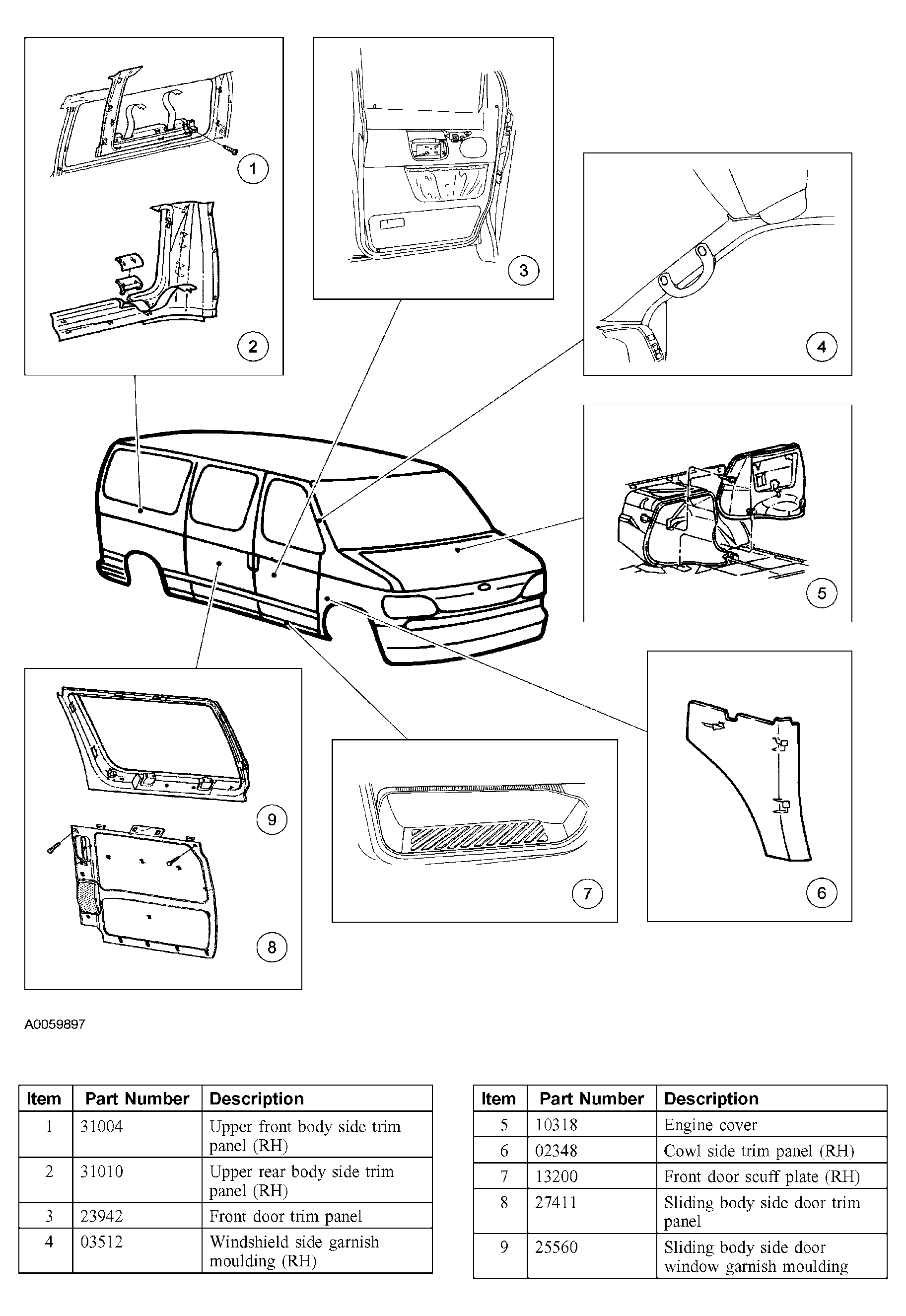

Fig 5: Identifying Interior Trim Component Locations - RH Side And Engine Cover
