Exhaust Gas Recirculation (EGR) Valve - 5.4L (2V): Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Disconnect the exhaust gas recirculation (EGR) valve tube upper fitting and EGR vacuum hose.

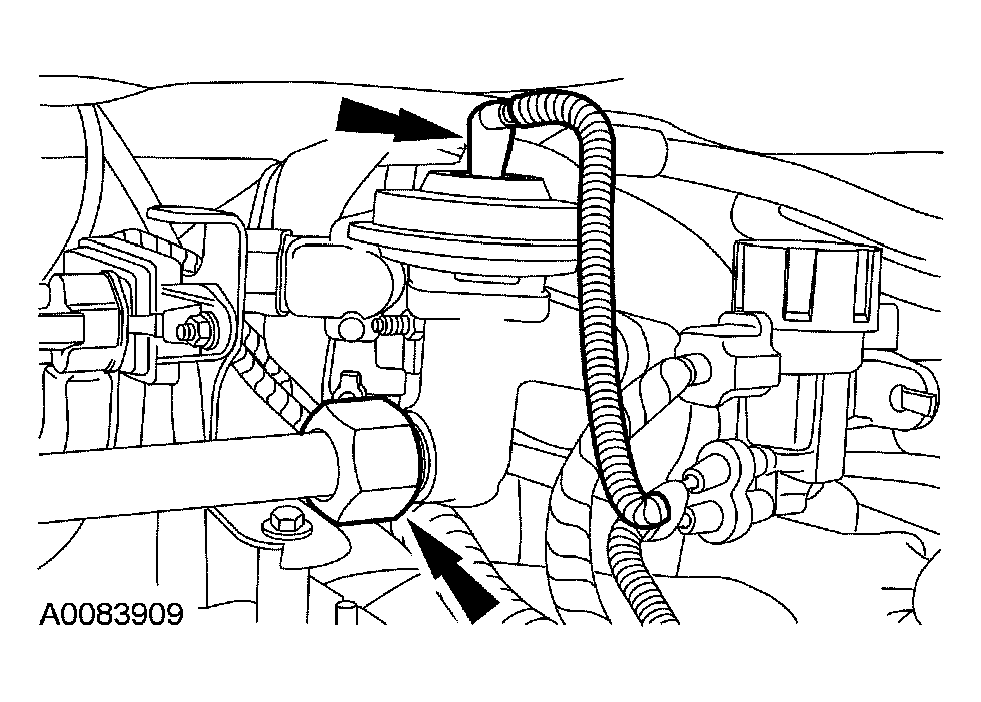

    Fig 1: Disconnecting Exhaust Gas Recirculation (EGR) Valve Tube Upper Fitting
    G03888245Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the EGR valve.
    • Discard the gasket.
      Fig 2: Removing EGR Valve
      G03888246Courtesy of FORD MOTOR CO.
