Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Remove the exhaust gas recirculation (EGR) vacuum regulator solenoid.
    1. Disconnect the electrical connector.
    2. Disconnect the vacuum lines.
    3. Remove the nuts.

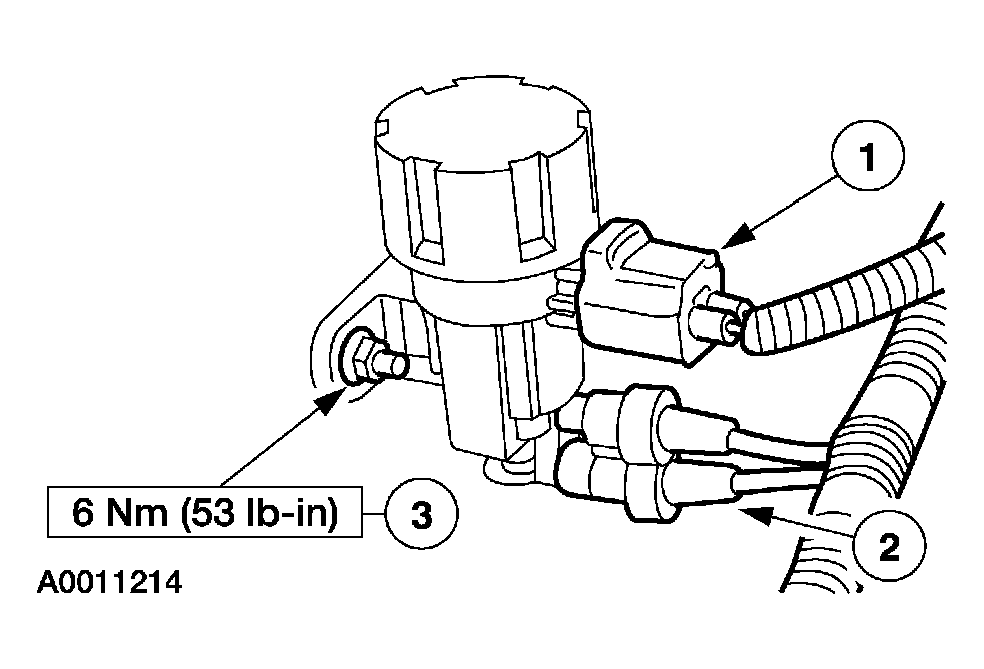

      Fig 1: Removing Exhaust Gas Recirculation (EGR) Vacuum Regulator Solenoid
      G03908029Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
