Exhaust Gas Recirculation (EGR) System Module - 4.6L: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
    2. NOTE: The red clip must be pulled out before disconnecting the electrical connector.

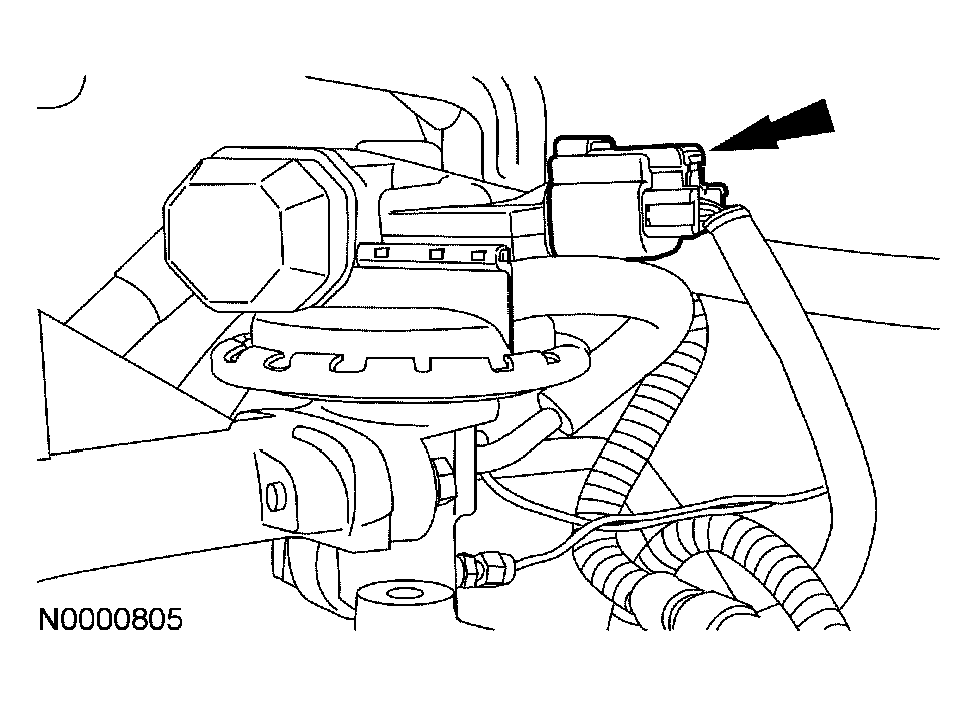

    Fig 1: Disconnecting Exhaust Gas Recirculation (EGR) System Module Electrical Connector
    G03885096Courtesy of FORD MOTOR CO.
  2. Disconnect the exhaust gas recirculation (EGR) system module electrical connector.
  3. Disconnect the vacuum line and EGR valve tube fitting.

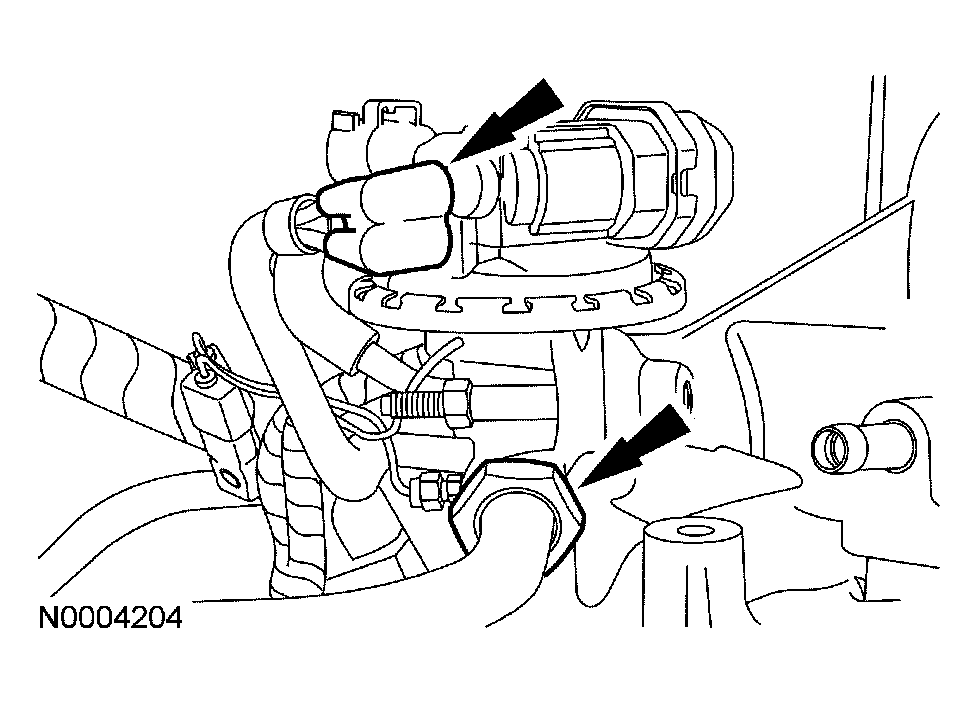

    Fig 2: Disconnecting Vacuum Line And EGR Valve Tube Fitting
    G03888239Courtesy of FORD MOTOR CO.
  4. Remove the bolts and EGR system module.
    Fig 3: Removing EGR System Module
    G03888240Courtesy of FORD MOTOR CO.
