Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil. For additional information, refer to IGNITION COIL-ON-PLUG .
    2. NOTE: Remove any foreign material from the spark plug wells with compressed air before removing the spark plugs.

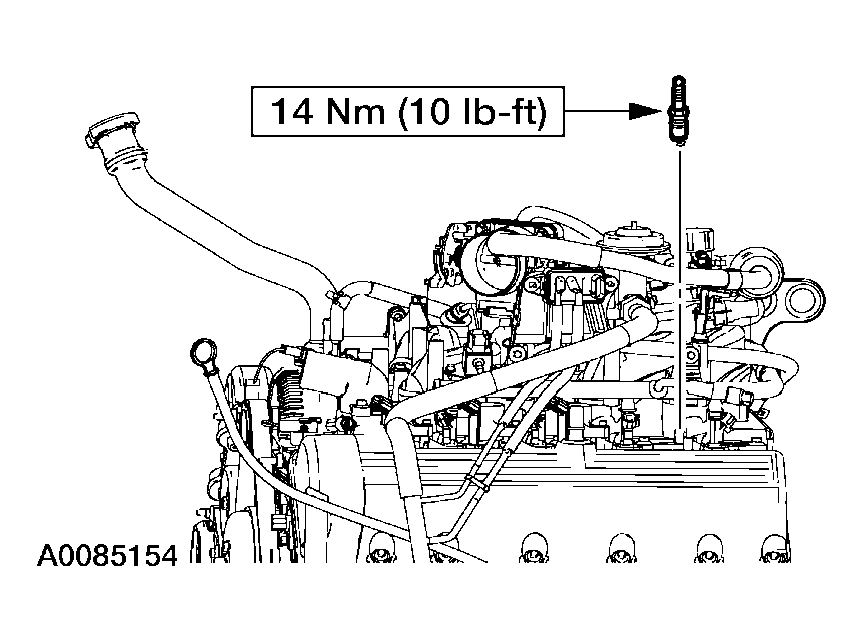

    Fig 1: Removing Spark Plugs
    G03888182Courtesy of FORD MOTOR CO.
  2. Remove the spark plugs.
  3. Inspect the spark plugs. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
  4. To install, reverse the removal procedure.
    Fig 2: Inspecting Spark Plugs
    G03888183Courtesy of FORD MOTOR CO.
