Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Disconnect the ignition coil electrical connector.
    Fig 1: Identifying Ignition Coil Electrical Connector
    G03886336Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the ignition coil.

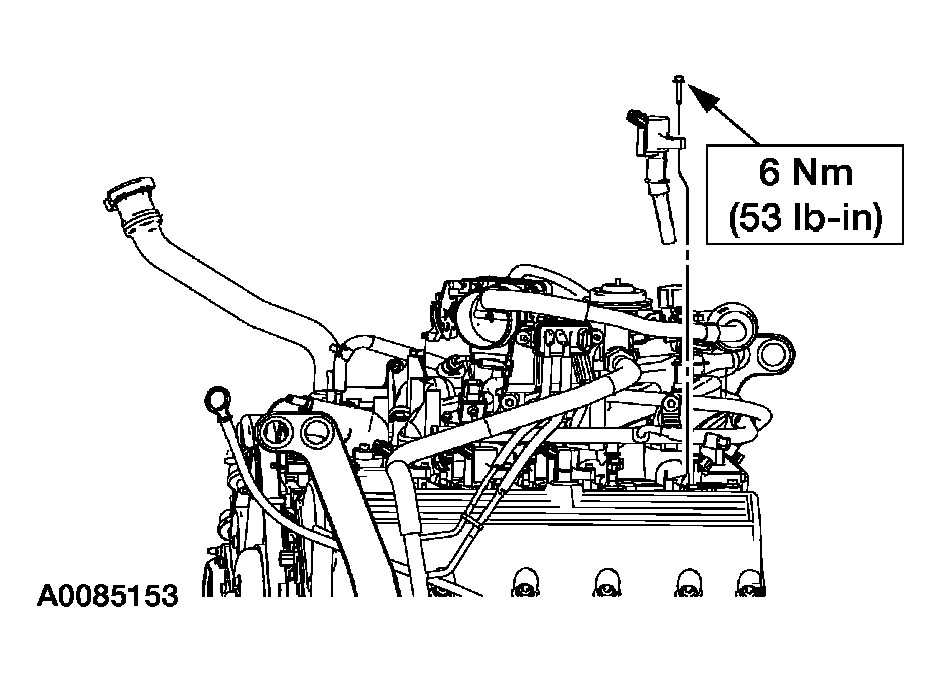

    Fig 2: Removing Ignition Coil
    G03888181Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    • Apply Dielectric compound to the inside of the coil boots.
