Starter Motor: Installation

WARNING: This page is about a different car, the 2005 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Install the starter.
1. Position the starter.
2. Loosely install the two bolts.
3. Loosely install the stud bolt.
  - Tighten the top bolt first, then the other fasteners.

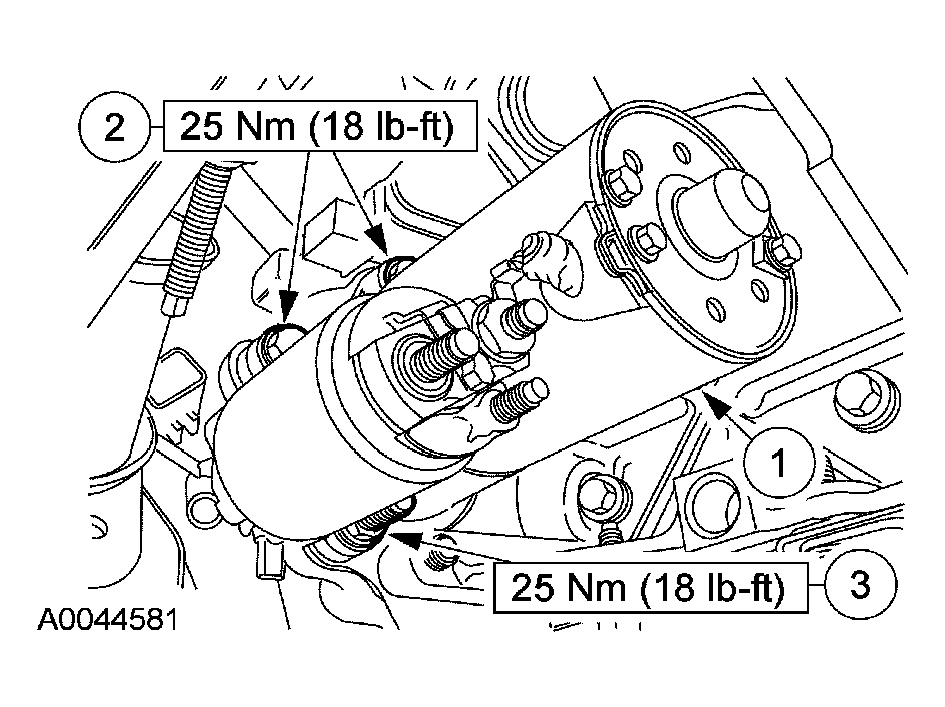

    Fig 1: Installing Starter
    Courtesy of FORD MOTOR CO.
Connect the starter motor electrical connections.

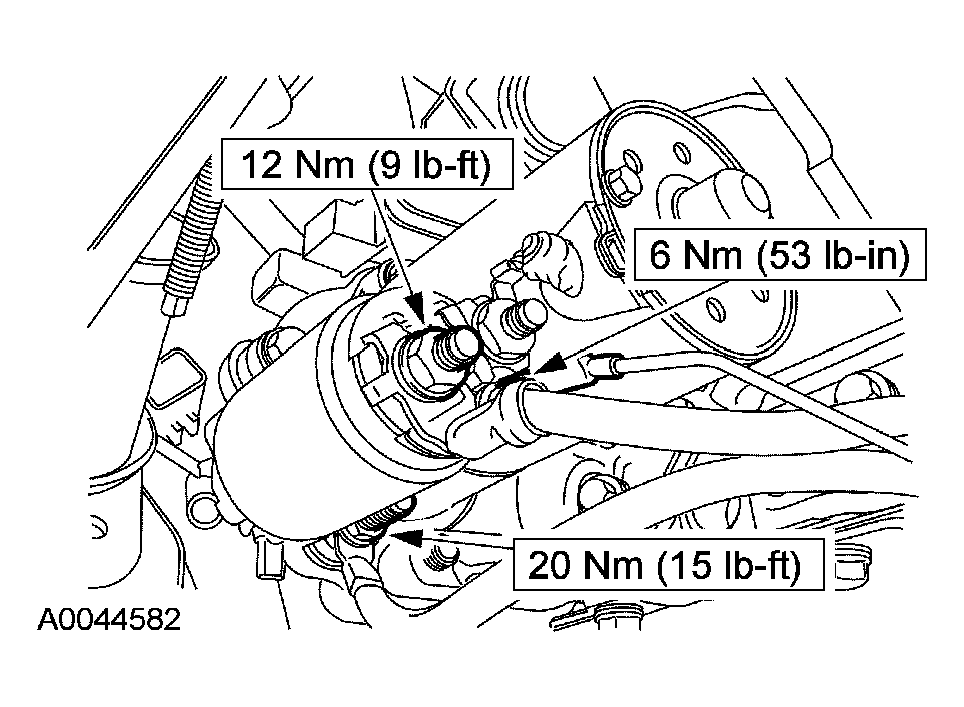

Fig 2: Connecting Starter Motor Electrical Connections
Courtesy of FORD MOTOR CO.
Install the starter motor solenoid terminal cover.

Fig 3: Identifying Starter Motor Solenoid Terminal Cover
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
