Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the turbocharger. For additional information, refer to TURBOCHARGER .
Remove the plug and drain the oil filter assembly and tubes.

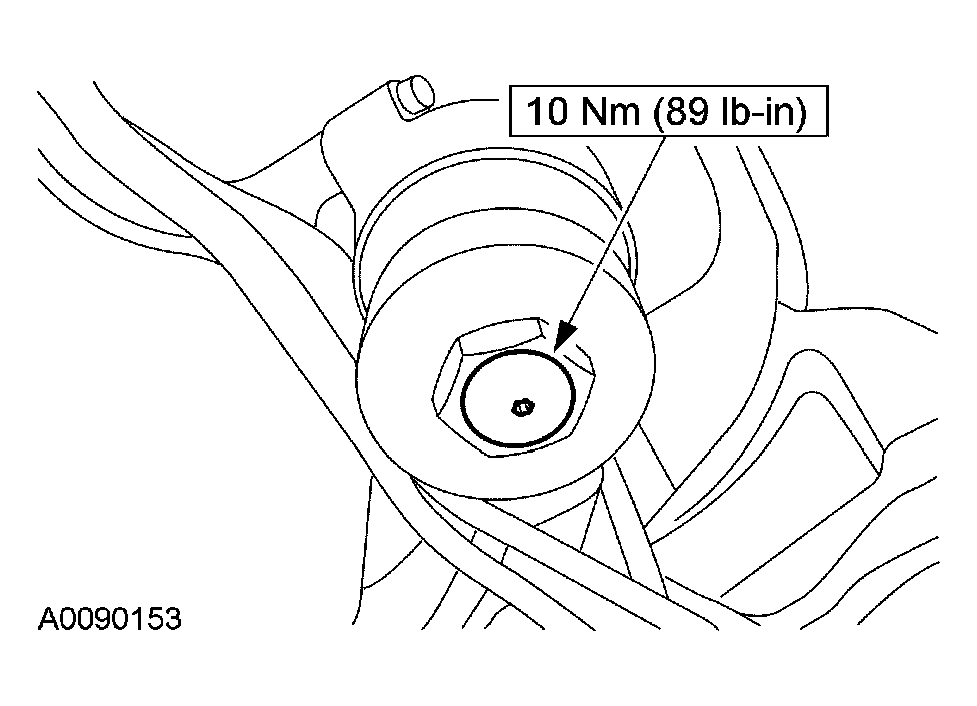

Fig 1: Removing Plug
Courtesy of FORD MOTOR CO.
Disconnect the wiring push-pin retainer.

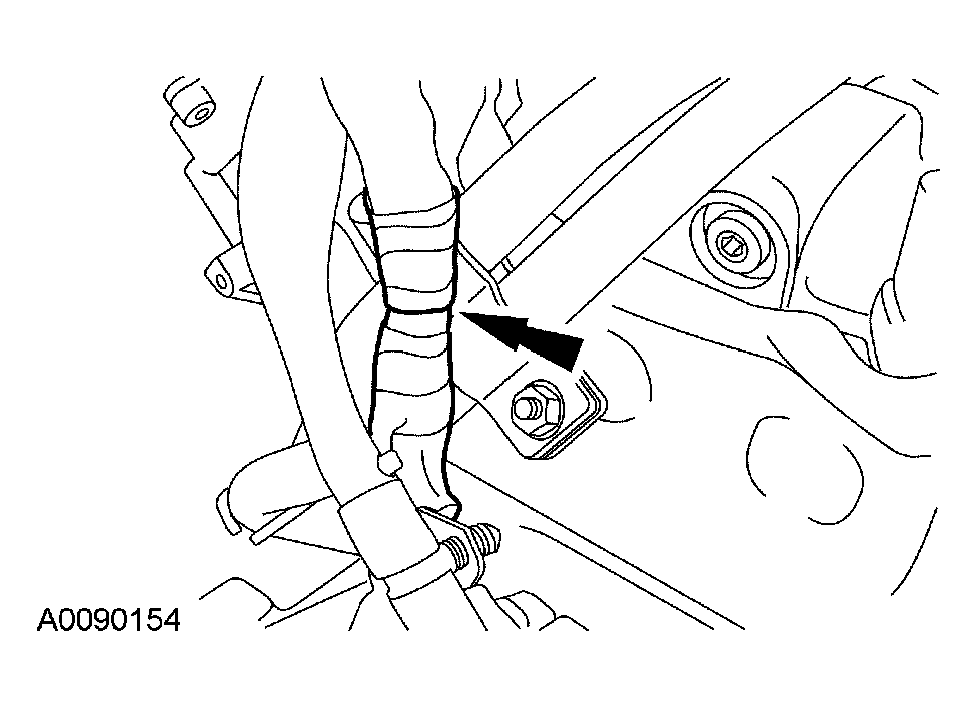

Fig 2: Disconnecting Wiring Push-Pin Retainer
Courtesy of FORD MOTOR CO.
Remove the bolt and retaining clamp at the oil filter adapter.

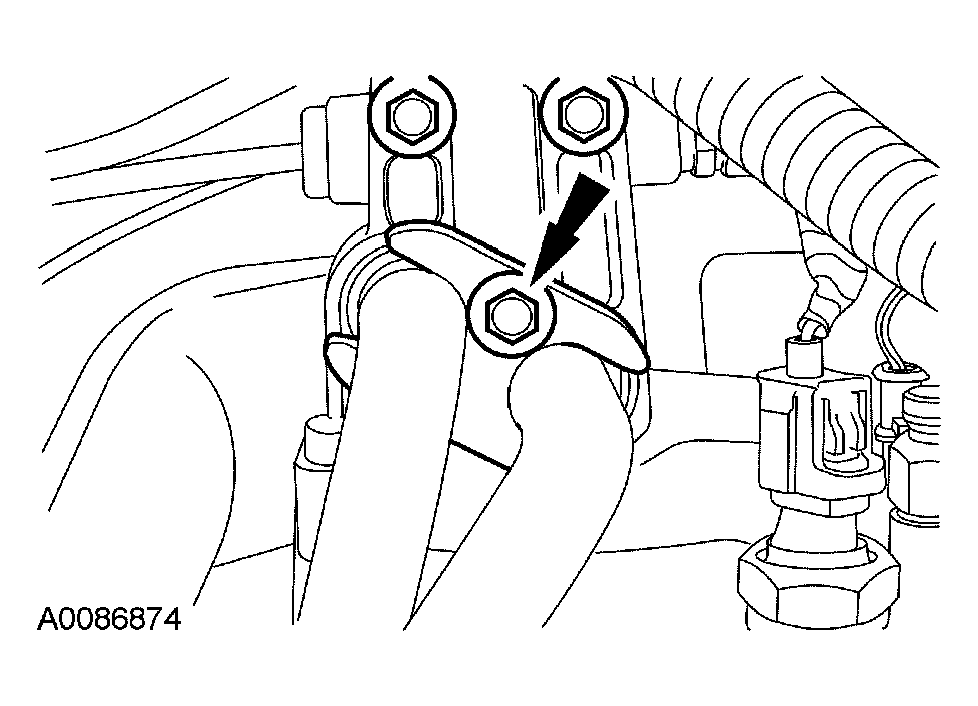

Fig 3: Removing Oil Filter Adapter Retaining Clamp
Courtesy of FORD MOTOR CO.
Remove the bolt and retaining clamp at the oil filter assembly.

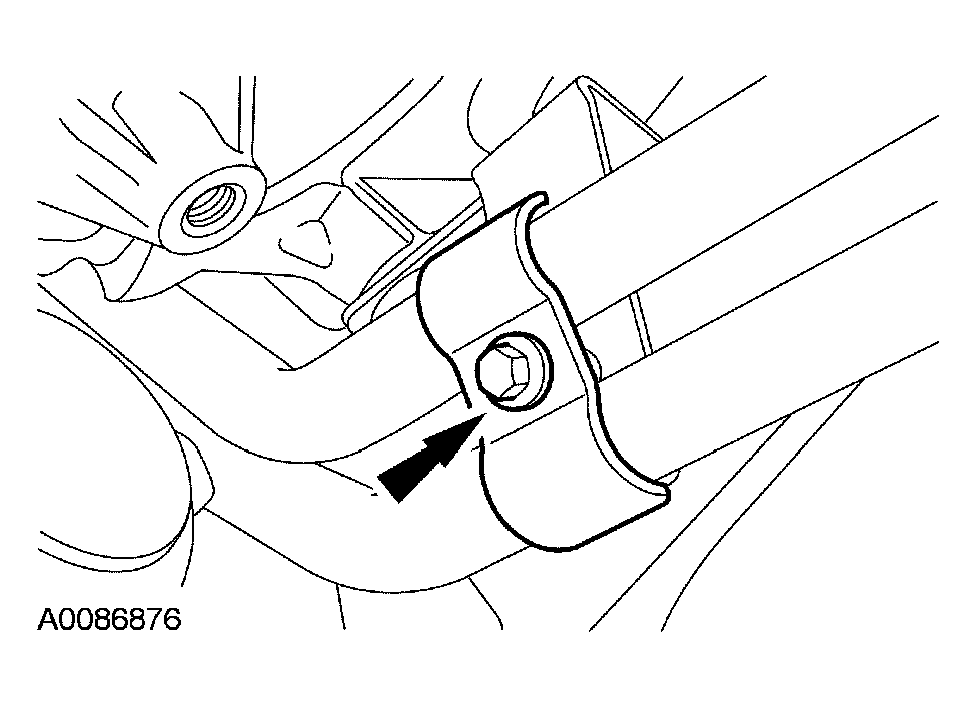

Fig 4: Removing Oil Filter Assembly Retaining Clamp
Courtesy of FORD MOTOR CO.

NOTE: Use care not to bend the tubes, when removing the oil filter tubes.

Fig 5: Removing Oil Filter Tubes Retaining Clamp

Courtesy of FORD MOTOR CO.

Remove the bolt and retaining clamp. Remove the oil filter tubes.
Remove the bolts and turbocharger pedestal.

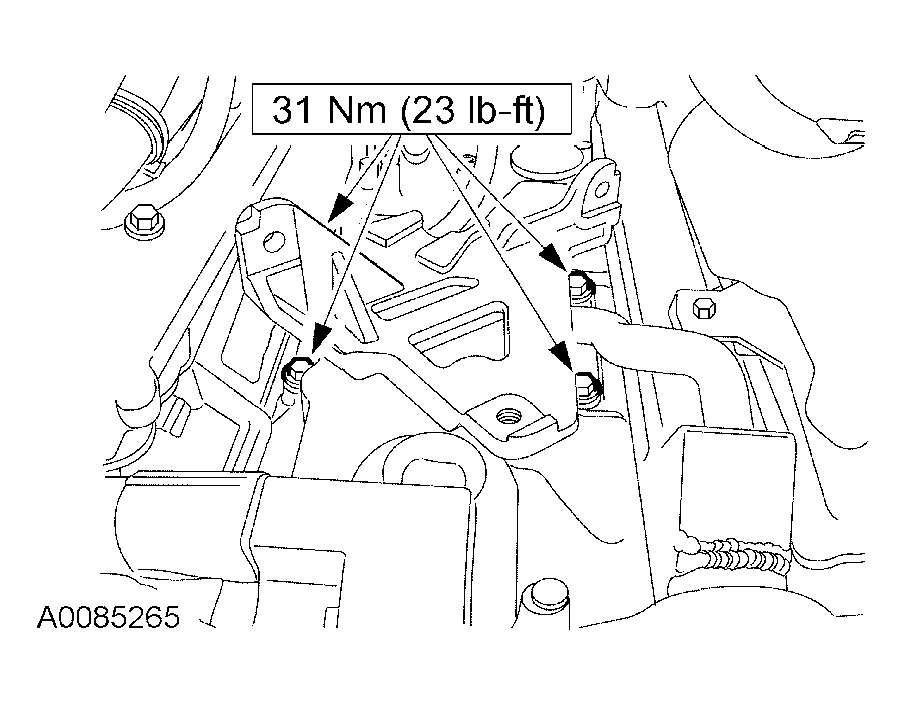

Fig 6: Removing Turbocharger Pedestal
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Inspect the O-ring seals for the oil filter tube ends, replace as necessary.
- Check and top off the engine oil after the engine is running.
