Fuel Injector Sleeve: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the fuel injector bore is clean and dry.
  2. Position the fuel injector sleeve onto the Injector Sleeve Installer. Apply Threadlock 262® or equivalent to the very bottom (smallest diameter) and very top (largest diameter) flat areas.
    Fig 1: Positioning Fuel Injector Sleeve Onto Injector Sleeve Installer
    G03888072Courtesy of FORD MOTOR CO.
  3. Position the fuel injector sleeve into the cylinder head fuel injector bore. Seat the fuel injector sleeve in the fuel injector bore, using a rubber mallet. If any sealant gets into the inside of the injector sleeve, it must be cleaned out before it hardens.

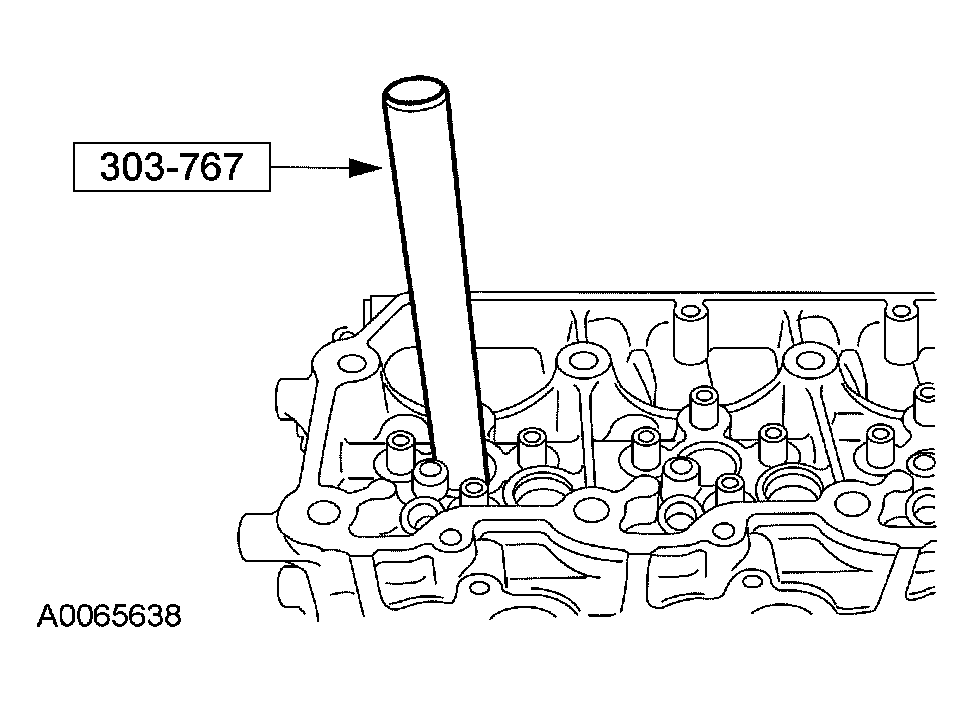

    Fig 2: Positioning Fuel Injector Sleeve Into Cylinder Head Fuel Injector Bore
    G03888073Courtesy of FORD MOTOR CO.
  4. Install the lifting bracket on the cylinder head.
  5. Install the cylinder heads. For additional information, refer to ENGINE - 6.0L DIESEL .
