Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    Vehicles with dual generators

  1. Disconnect the negative battery cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    2. All vehicles

    NOTE: The injection control pressure (ICP) sensor is located in the RH valve cover.

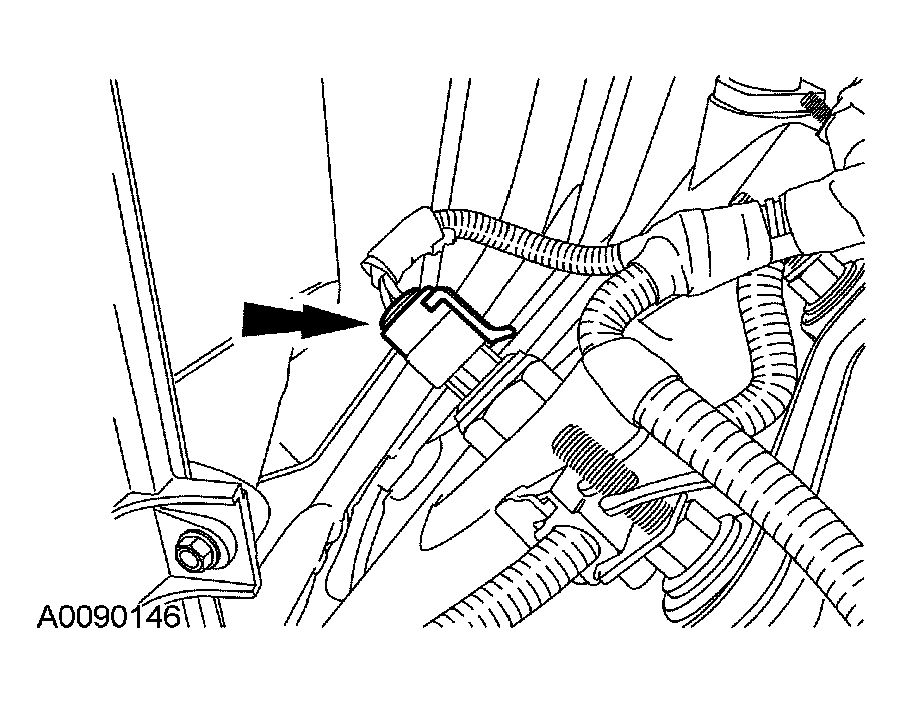

    Fig 1: Disconnecting ICP Sensor Electrical Connector
    G03888062Courtesy of FORD MOTOR CO.
  2. Disconnect the ICP sensor electrical connector.
  3. Remove the ICP sensor.
    Fig 2: Removing ICP Sensor
    G03887194Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
    • Verify the sensor O-ring seal is in place.
