Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
    2. NOTE: The fuel pump driver module is mounted to the left inside frame rail.

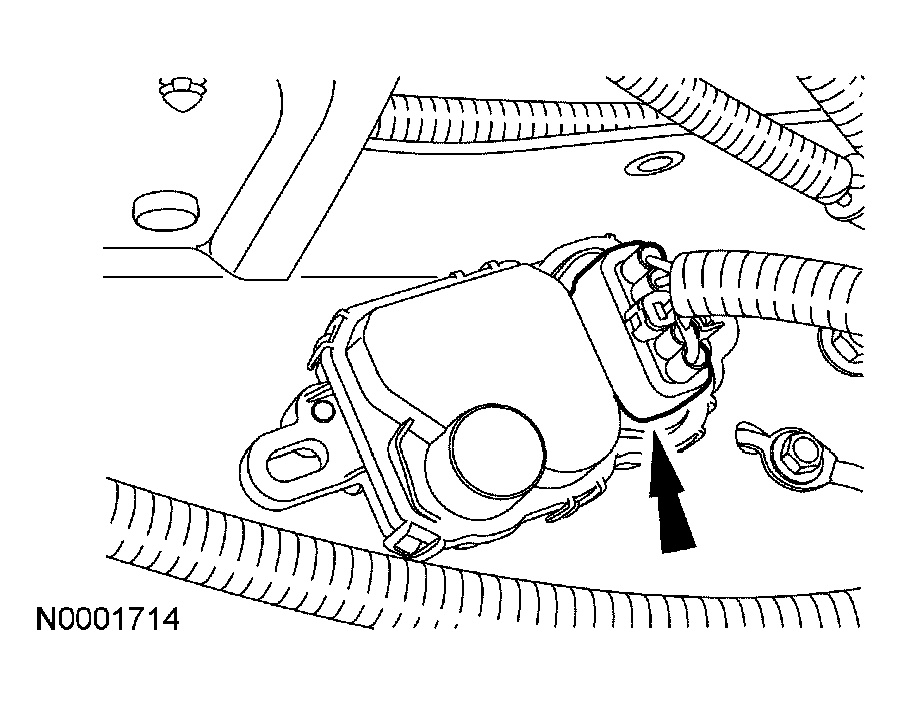

    Fig 1: Disconnecting Fuel Pump Driver Module (FPDM) Electrical Connector
    G03887933Courtesy of FORD MOTOR CO.
  2. Disconnect the fuel pump driver module (FPDM) electrical connector.
  3. Remove the retaining nuts and FPDM.
    Fig 2: Removing FPDM Retaining Nuts
    G03887934Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
