Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator. For additional information, refer to RADIATOR - 6.0L DIESEL .
  2. Disconnect the electrical connector. Release the wiring from the stator.

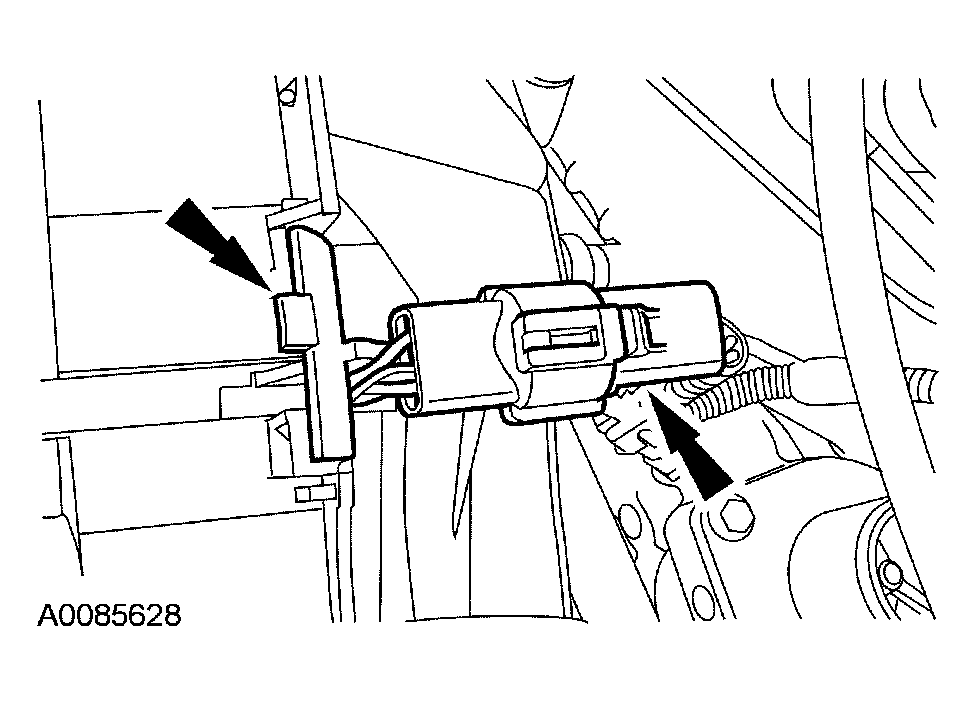

    Fig 1: Disconnecting Electrical Connector
    G03887885Courtesy of FORD MOTOR CO.
    3. NOTE: Use a hole in the fan hub to prevent the fan from turning.

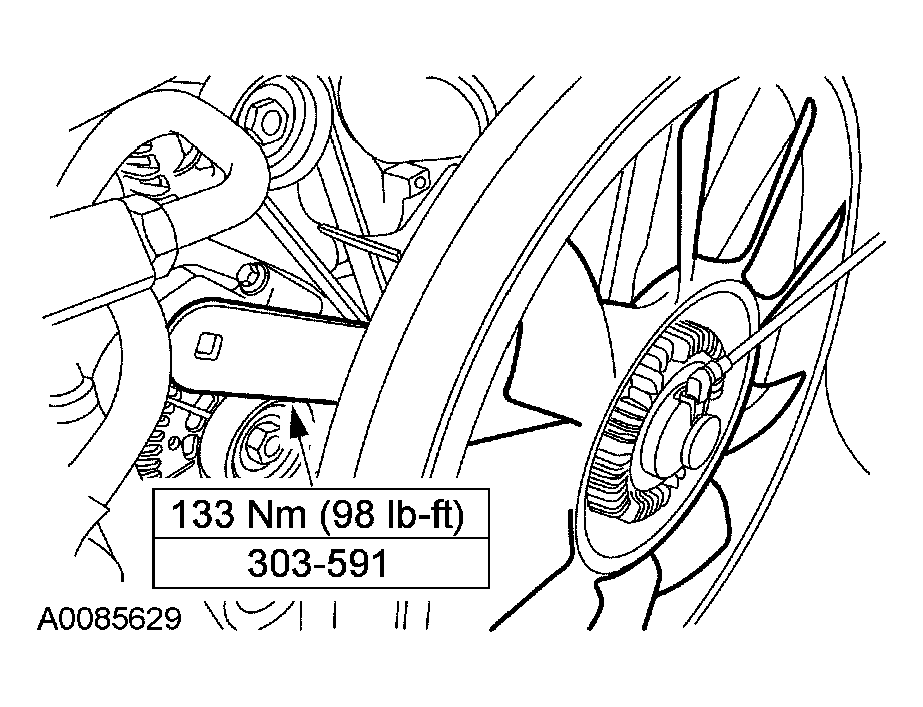

    Fig 2: Loosening Fan Clutch
    G03887886Courtesy of FORD MOTOR CO.
  3. Using the special tool, loosen the fan clutch by turning the wrench counterclockwise. Remove the cooling fan and clutch.
  4. Remove the bolts and cooling fan stator assembly.

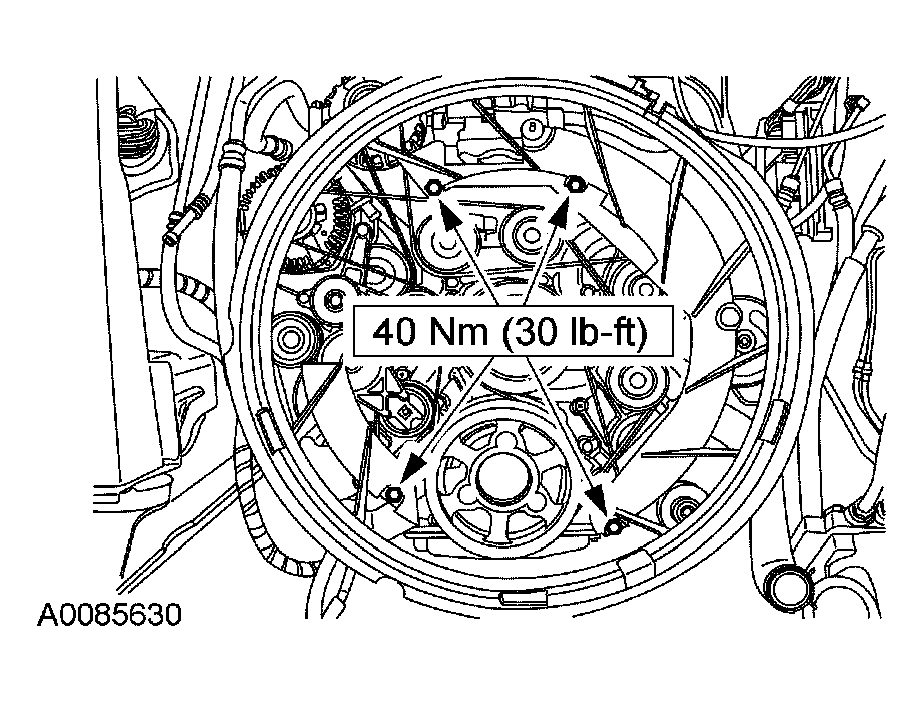

    Fig 3: Removing Cooling Fan Stator Assembly
    G03887887Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
